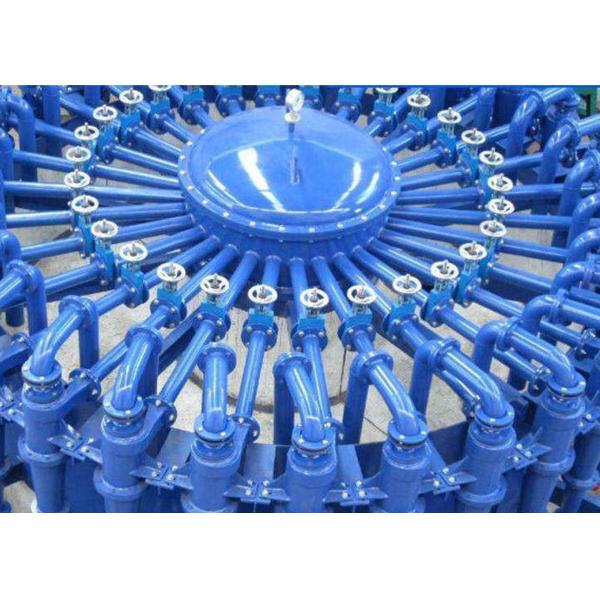

Small Capacity Hydrocyclone Separator High Efficient Simple Structure Device

1. Brief Introduction

A hydrocyclone, or more commonly referred to as a cyclone, is simply a configured pipe tee. It requires certain elements in its design in order to perform a separation of material based on size gradation, but a Hydrocyclone is straightforward.

The mystery of a Hydrocyclone comes from the inability to see what is happening inside. The following tips can help you get some insight into what your Hydrocyclone is doing.

Pressure at the inlet of the Hydrocyclone is an important indicator of where the separation point (also called cut point or d50) will be. The separation point is the size at which a particle has a 50-50 chance of reporting either to the underflow or overflow.

2. Application

Applications of the hydrocyclone were originally in the mineral processing industry for solid-liquid separation, i.e., the dewatering of particulate solids suspended in a water stream. The mechanism of separation is, however, dependent on both the difference in specific gravity of the particles and the liquid medium as well as the size of the particles.

3. Working Principle

The conventional hydrocyclone consists of a cylindrical chamber connected to a conical body,which leads to the bottom outlet at the apex of the cone. This discharges the "underflow".

Under the pressure, the feeding slurry enters into the hydrocyclone along the pipe. Big size particles throw to the tank wall by centrifugal force, and flows down under the external swirling flow force. Big sized particle settling product discharged from the bottom outlet. While the fine particles flows up by internal swirling force, and fine particles product discharged from the overflow.

4. Product Parameter

5. FAQ

Q: What is the Brand Name of this product?
A: The Brand Name of this product is UNIVEE.

Q: What is the Model Number of this product?
A: The Model Number of this product is U-HS.

Q: Where is this product manufactured?
A: This product is manufactured in China.
