Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment
Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment
Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment
Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment
Specifications
Brand Name :
UNIVEE
Model Number :
U-HS
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Hydrocyclone
Material :
Mild Steel Painted
Color :
Customized
Type :
Spiral Separator
Capacity :
Large
Temperature :
Up To 80°C
Principle :
Centrifugal Force
Services :
Available
Guarantee :
1 Year
Description

Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment

Product Description:

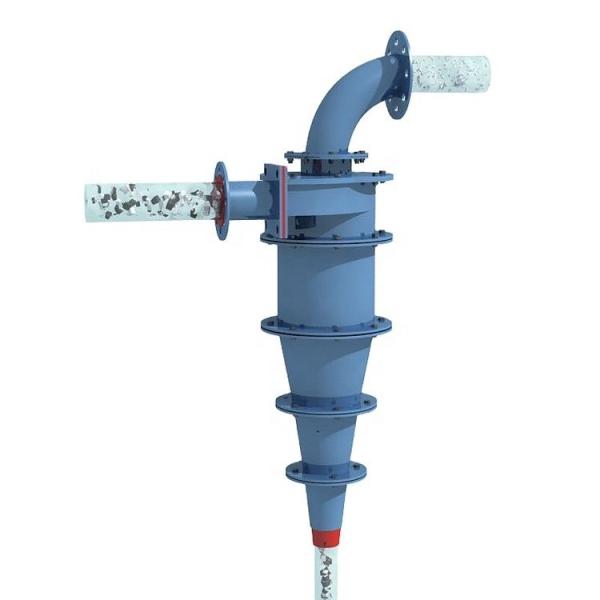

A hydrocyclone is a simple cone-shaped cylindrical container that has no moving parts. It is used to separate or “cut” solid particles in a liquid stream by size and density.

For mineral applications such as in hard rock and precious metals processing, Cyclones are the most common equipment to control what size of materials exit the comminution (ball milling) circuit. In these applications, it is the fine fraction in the overflow that is the product. Different ores have different liberation sizes, so Hydrocyclones are configured in many different ways.

Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment

Features:

Simple structure
Easy manuacture
Big processing capacity

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360. 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220

74-200,

74-150

Applications:

Hydrocyclones are used for desliming, dewatering and sizing a variety of products, including sand, construction aggregates and industrial minerals. Containing no moving parts, these machines are relatively straightforward. Here are five things you need to know about Hydrocylcones.

Mild Steel Fine Particle Hydrocyclone Separator Clean Overflow Treatment

Support and Services:

The Hydrocyclone Separator product offers the following technical support and services:

  • Installation assistance and guidance
  • Product training and education
  • Maintenance and repair services
  • Product documentation and user manuals
  • Technical troubleshooting and support

FAQ:

Q1: How to process an order for hydrocyclone separator?

A: The product is customized, first of all, please provide your requirement details, our engineers will provide the prelimianry plan for your reference.

Q2: Do you offer guarantee?

A: Yes, we offer one year guarantee from the date of commissioning.

Q3. Can you offer Design Service?

A: Yes, we could design full solution drawings as per client's request.
