High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology
High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology
High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology
High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology
Specifications
Brand Name :
UNIVEE
Model Number :
U-HS
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
4-6 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Hydrocyclone
Principle :
Centrifugal Force
Application :
Water Treatment
Condition :
New
Installaton :
Easy
Connection :
Flanged
Capacity :
Big
Service :
Available
Guarantee :
1 Year
Description

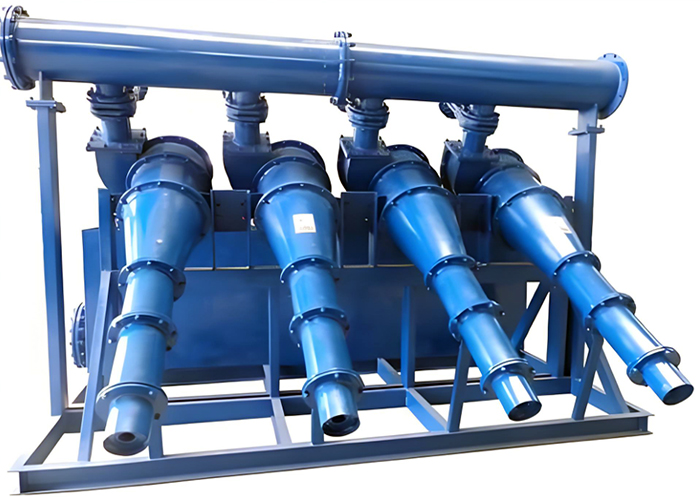

High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology

Product Description:

The hydrocyclone is a simple piece of equipment that uses fluid pressure to generate centrifugal force and a flow pattern which can separate particles or droplets from a liquid medium. These particles or droplets must have a sufficiently different density relative to the medium in order to achieve separation.

Cyclones are the most common equipment to control what size of materials exit the comminution (ball milling) circuit.

Hydrocyclones also find use in pharmaceuticals; agricultural applications, such as sand/manure separation; pulp and paper; potable water and wastewater treatment systems; degritting of spray water; etc.

High Speed Rotary Hydrocyclone Separator Water Overflow Processing Technology

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
200 40.50.55.65 16.20.24.28.32 15,20 0.05-0.4 40-64

40-100

30-100
150 30.35.40.45.50

8.10.12.14.

16.18.20.22

 8.15.20 0.05-0.4 11-20

30-74

20-74
125 25.30.35.40

8.10.12.14.

16.18

 7.15 0.05-0.4 250-360 74-200

Technical Parameters:

Inner Diameter (mm) Overflow Pipe (mm)

Underflow Pipe

(mm)

Cone Angle

(°)

Feeding Pressure

(MPa)

 Capacity (m3/h)

Particle Size

(μm)
750 240.260.280 120.140.160 20 0.03-0.4 400-500 74-250
660 180.200.220.240 80.110.150 20 0.03-0.4 250-360. 74-220
610 160.180.200.220 90.100.110 20 0.03-0.4 250-360 74-200
500 130.140.160.220

35.45.50.65.70.

80.90.100

 10.20.25 0.03-0.4 140-220

74-200,

74-150

Packing and Shipping:

Type of Packing:

Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case.
Packed with fumigation package
Packed in plastic lorap, double bister and jute rope

Support and Services:

Installation assistance

Maintenance and repair guidance

Operational troubleshooting

Training for operators and maintenance personnel

Customized solutions for specific applications

FAQ:

Q: What is the brand name of this hydrocyclone seperator product?
A: The brand name is UNIVEE.

Q: Where is this hydrocyclone separator product made?
A: This product is made in China.
