High Efficiency Ceramic Disk Filter Dia 2600mm Vacuum Disc Filters
High Efficiency Ceramic Disk Filter Dia 2600mm Vacuum Disc Filters
High Efficiency Ceramic Disk Filter Dia 2600mm Vacuum Disc Filters
High Efficiency Ceramic Disk Filter Dia 2600mm Vacuum Disc Filters
Specifications
Brand Name :
UNIVEE
Model Number :
U-DF
Place of Origin :
China
Certification :
ISO
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
10 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Disc Filter
Diameter :
2600mm
Installation :
Above Or Below Ground
Washing System :
Combined
Maintenance :
Low Cost
Filter Media :
Cloth, Mesh, Or Paper
Condition :
New
Application :
Slurry Treatment
Description

High Efficiency Low Maintenance Cost Vacuum Disc Filter Diameter 2600mm

Product Description:

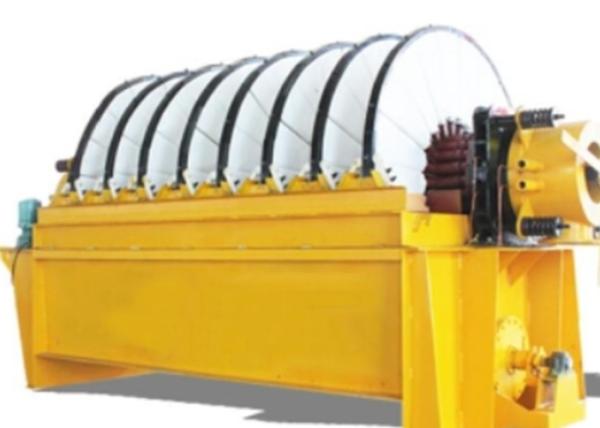

Disc filter is a kind of continuous vacuum filtration equipment, it is mainly consisted with tank, main shaft, filtrate disc, distribution valve, material stripping device washing unit, drive unit, discharge unit etc.

The discs are compacted stack together in the cell. The groove between two disc layers can block and filtrate the solid in slurry.

The slurry flows into the filter, the particle size bigger than the groove shall be blocked in the external.

High Efficiency Ceramic Disk Filter Dia 2600mm Vacuum Disc Filters

Features:

High average filtration speed, 2-3 times of bag filter.
High quality of filtrated water
Open the valve for every washing filter disc cycle, low work intensity, well operation condition,
Achieve automatic control
Lower water consumption

Sealed filtration operation, no steam, less heat loss.
Save filter cloth maintenance cost.

Technical Parameters:

Description Technical Parameter
Filtration Method Rotary Discs
Diameter of Disc 2600mm
Filtration Area 64m2
Quantity of Disc 8 pcs
Power 7.5 Kw
Cake Discharge Blowing + Scraper

Applications:

  1. Gold Concentration
  2. Copper Concentration
  3. Iron Concentration
  4. Zinc Concentration
  5. Lead Concentration
  6. Lead and Zinc Tailings
  7. Fine Coal Concentration
  8. Cyanide Residue
  9. Zinc Oxide

Packing and Shipping:

Product Packaging:

  • The Disc Filter product will be packaged in a sturdy cardboard box to prevent damage during shipping.
  • The product will be wrapped in bubble wrap and sealed with tape to provide additional protection.
  • The packaging will also include a user manual and any necessary hardware for assembly.

Shipping:

  • The Disc Filter product will be shipped via a reputable courier service.
  • Shipping costs will be calculated based on the destination and weight of the package.
  • Customers will receive a tracking number so they can monitor the status of their shipment.
  • Shipping times may vary depending on the destination and courier service used.

FAQ:

Q: What is the brand name of this disc filter product?

A: The brand name of this disc filter product is UNIVEE.

Q: Where is this disc filter product made?

A: This disc filter product is made in China.

Q: What is the filtration efficiency of this disc filter product?

A: The filtration efficiency of this disc filter product is up to 98%.
