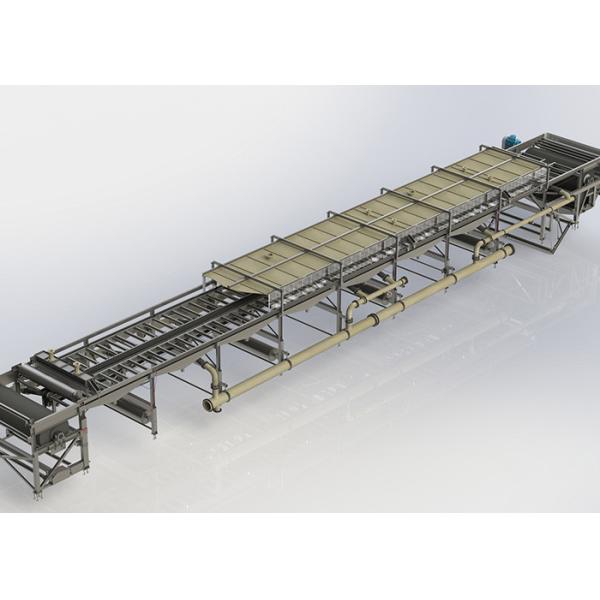

PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment
PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment
PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment
PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment
Specifications
Brand Name :
UNIVEE
Model Number :
U-BF
Place of Origin :
China
MOQ :
1 pcs
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
1 set per 2 month
Delivery Time :
8 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Certification :
ISO
Name :
Belt Filter
Grade :
Standard
Framework :
Steel Frame
Operation :
Automatic
Voltage :
380V
Frequency :
50Hz
Wide :
2000mm
Length :
15000mm~+
Condition :
New
Service :
Available
Description

PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment

Product Description:

Belt filters are ideal for filtration processes that involve the presence of heavy solids and large filtration surfaces.

The main feature of the belt filter system is the additional presence of the filtration cloth and a special reinforced rubber belt with draining grooves.

Specifically, the rubber belt is activated by means of a variable speed drum, while the vacuum action is created by a vacuum box system.

The belt is long-lasting, easy to replace, and guarantees a perfect seal between the moving part of the filter (the rubber belt and the cloth) and the fixed part (the vacuum box).

At the end of the filtration phase, the cake is removed by means of a knife discharge device.

PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment

PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment

Main Equipment Description:

Vacuum Box Lfting Device Vacuum box is assembled by sections, each section is connected with filtrate pipe to form a vacuum filtrate collecting system. With a lifting device of vacuum box, it is more convenience for wear belt replacement.
Tracking Device Adopt cylinder or bellows to adjust the tracking of cloth automatically by switching the tracking angles. It can ensure the normal operation of cloth.
Tension Unit By adjusting the tension of rubber belt to ensure the friction force of belt and no tracking happened.
Washing Device Adopt countercurrent and concurrent spraying devices, which can switch to concurrent washing and countercurrent washing according to differently slurries and process requirement, which can washing the materials more completely.


Structure of Belt Filter:

PLC Control Belt Filter Continously Operation Sludge Treatment Filtration Equipment

1 Filter Cloth Washing 8 Filter Cloth Tension Unit
2 Belt Washing 9 Discharge Roll
3 Cake Washing Box 10 Drive Pulley
4 Slurry Feeding Hopper 11 Driven Pulley
5 Rubber Belt 12 Vacuum Box
6 Filter Cloth 13 Filter Support Frame
7 Filter Cloth Tracking Unit

Packing and Shipping:

The belt filter will be packaged securely in a wooden crate to prevent any damage during transit.

All necessary accessories and parts will be included in the package.

The package will be clearly labeled with the product name and any handling instructions.

FAQ:

Q: What is a Belt Filter?
A: A Belt Filter is a type of filtration equipment used to separate solids from liquids. It uses a belt made of filter cloth to contain the solids and allow the liquid to pass through.

Q: What are some applications of the UNIVEE U-BF Belt Filter?
A: The UNIVEE U-BF Belt Filter can be used in various industries such as mining, chemical, pharmaceutical, and food processing for solid-liquid separation processes.
