Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application
Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application
Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application
Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application
Specifications
Brand Name :
UNIVEE
Model Number :
U-BF
Place of Origin :
China
Certification :
ISO
MOQ :
1 pcs
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
1 set per 2 month
Delivery Time :
8 weeks
Packaging Details :
Steel frame, Wooden Case, Tray, Suitable for multi transpiration
Name :
Vacumm Belt Filter
Grade :
Standard
Vacuum source :
Vacuum Pump
Belt wide :
3600mm
Control system :
PLC
Cake moisture :
Less than 5%
Condition :
New
Service :
Available
Guarantee :
1 Year
Description

Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application

Product Description:

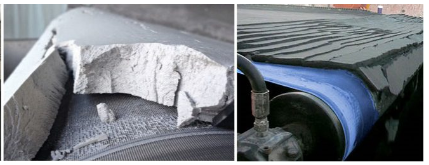

It is important that the vacuum belt filter has an effective belt washing section so that blingding does not decrease the permeability of the belt. Solids recovery is directly related to filtrate quality and thus the filter media and process arrangement must satisfy the desired cake and filtrate qualities. Dry solids content is a measure of the degree of dewatering. The degree of dewatering is increased when the belt speed is decreased. Lowering the belt speed reduces the capacity of the process.

Significant developments in belt press filter technology include: cloth developments, using three belts and, the V-fold belt. Cloth developments include the double weave which incorporates different yarn types to combine the specific advantages of each. A double weave woven wire belt is also available which has a better life span and durability than a conventional wire belt.

Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application

Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application

Structure of Belt Filter:

Large Filtration Capacity Vacuum Belt Filter Sludge Treatment Wide Application

1 Filter Cloth Washing 8 Filter Cloth Tension Unit
2 Belt Washing 9 Discharge Roll
3 Cake Washing Box 10 Drive Pulley
4 Slurry Feeding Hopper 11 Driven Pulley
5 Rubber Belt 12 Vacuum Box
6 Filter Cloth 13 Filter Support Frame
7 Filter Cloth Tracking Unit

Technical Parameters:

Filtration

Area (m2)

Effective

Width (mm)

Effective

Length (mm)

Total

Length (mm)

Frame

Width (mm)

Frame Height

(mm)

Vaccum Consumption

(m3/min)
2 500 4000 8100 1100 2070 8
3 500 6000 10100 1100 2070 12
8 1000 8000 12100 1600 2070 25
12 1000 12000 16100 1600 2070 30

Application:

Application of Materials Liquid / Solid Ratio
Ciric Acid 5/1 - 3/1
Zinc Oxide 10/1
Ferromagnet 2.5/1 - 4/1
Sulphur Mine 4/1 - 2.5/1
Coal Ash 10/1
Gold Mine 2/1
Sulphuric Sludeg 1.5/1
Alumine 5/1 - 4/1
Wet Cement 2/1
Mining Tailings 6/1
ABS Resin 10/1

Support and Services:

Our Vacuum Belt Filter product technical support and services include:

  • Installation guidance and support
  • Product maintenance and repair
  • Training on product operation and safety
  • Customization services to meet specific needs
  • Technical documentation and manuals
  • 24/7 technical support hotline
