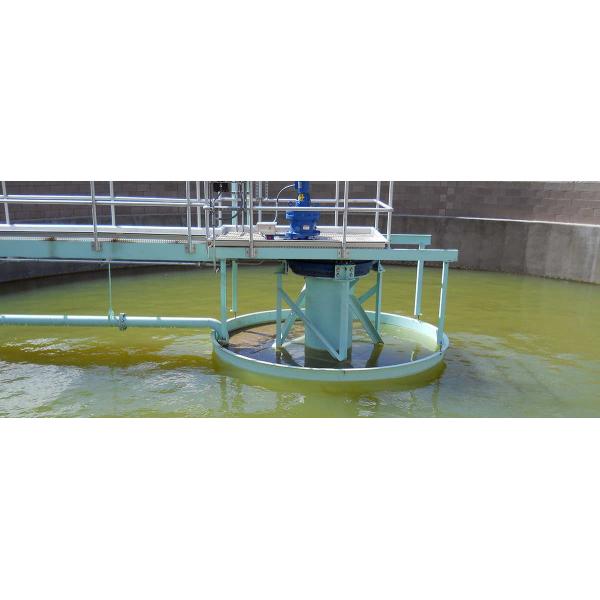

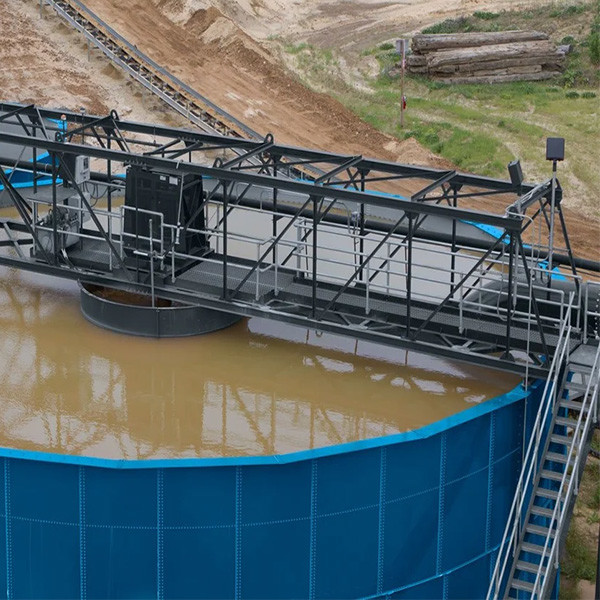

Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device
Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device
Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device
Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device
Specifications
Brand Name :
UNV
Model Number :
U-TE-25
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Customized
Payment Terms :
T/T, L/C
Supply Ability :
5 sets per month
Delivery Time :
8-10 weeks
Packaging Details :
Steel frame. Tray, Wooden Case Suitable for mutil-transportation
Name :
Thickener
Diameter :
10
Service life :
Long
Material :
Mild steel
Power :
10kw
Efficient :
High
Application :
Sludge
Settling :
Natural
Service :
Available
Guarantee :
1 year
Condition :
New
Description

Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device

Product Description:

The thickener is the industrial unit in which the concentration of a suspension is increased by sedimentation, with the formation of a clear liquid. In most cases, the concentration of the suspension is high and hinded settling takes place. Thickeners may operate as batch or continuous units, and consist of tanks from which the clear liquid is taken off at the top and the thickened liquor at the bottom.

The operation of the thickener must accommodate fluctuations – control for disturbances – in the process feed stream to deliver a clear overflow and thickened underflow. This control is achieved by manipulating both the flocculant addition and the rate of underflow withdrawal (typically pumping). The flocculant addition should be adjusted to suit the solids input and is mostly affected by the processing rate. Simple systems with constant feed can use flocculant pump speed control, more advanced control systems utilize a ratio controller to maintain a constant “grams per ton” dose rate. Unfortunately, fluctuations in ore type can significantly change the dosage of flocculant required and require a feedback to the “grams per ton” constant.

Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device

Type of Thickener Equipment

1

 Center Drive Thickener The whole equipment is consisted of tank, drive, material feeding, drainage section, rake and rake lifting device. According to the requirement of client, it can be divided into three types, i.e. center hydraulic hi-efficient thickener, center drive thickener and hi-efficient thickener. New structure and control are much convenience to speed up the material settling, increase capacity per unit area and reduce the turbidity of overflow.
2 Periphery Drive Thickener Adopt new technologies of heavy pivoting support, wheel chain drive, drive torque, thickness of settlings, density of drainage slurry detection, PLC centralization control, which achieves characteristics of bigger drive torque, higher overload capacity, stable operation, hi-efficient concentration, widely application, etc.
3 Deep Cone Thickener Deep cone thickener is a new designed full automatic, hi-efficient and continuously operation dewatering equipment based on countercurrent settling, sedimentary compression theory and combined with inclined plate and flocculant assisting settlement technology.

Techncial Paramter:

Description Specification
Diameter of Tank 30
Depth of Tank 5 meter
Setteing Area254 256 m2
Lifting Height of Rake 350mm
Rotating Time of Rake 5 ~ 30 mm/min
Motor Power 10 kW
Max Torque 221.4kN


Features and Benefits:

1

Feeding section designs allows thickeners to achieve maximum density underflow with reduced needs for polymers.
2

Auto-dilution options further increase the rate of settling of particles to reduce the size of equipment required and maximize thickener clarity and underflow density.
3

Advanced automation and remote assistance packages are available for all equipment lines.
4

Thickener comes with density monitoring systems that allow for optimal control of bed level, underflow density and automation of underflow pumping and rake lift settings.

Support and Services:

Our Thickener Equipment product is designed to provide efficient and reliable thickening performance for a variety of applications. To ensure optimal operation and longevity, we offer comprehensive technical support and services, including:

  • Installation and commissioning assistance
  • Maintenance and repair services
  • Process optimization and troubleshooting
  • Training and education programs
  • Upgrades and retrofits

Diameter 10M Steel Frame Thickener Equipment Flocculant Settling Device

FAQ:

Q: What is the brand name of this thickener equipment?

A: The brand name of this thickener equipment is UNIVEE.

Q: What is the model number of this thickener equipment?

A: The model number of this thickener equipment is U-TE-10.

Q: Where is this thickener equipment manufactured?

A: This thickener equipment is manufactured in China.
