Automatic CMYK UV Flatbed Printing Machine USB2.0 Galaxy UD-2512UFW
Automatic CMYK UV Flatbed Printing Machine USB2.0 Galaxy UD-2512UFW
Automatic CMYK UV Flatbed Printing Machine USB2.0 Galaxy UD-2512UFW
Automatic CMYK UV Flatbed Printing Machine USB2.0 Galaxy UD-2512UFW
Specifications
Brand Name :
Galaxy
Model Number :
UD-2512UFW
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 set per month
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Printhead :
Epson dx5 printhead
Ink type :
UV ink
Ink color :
CMYK
Resolution :
1440dpi
RIP Software :
Photoprint
Origin :
Guangdong China (mainland)
Description

Automatic CMYK UV Flatbed Printing Machine USB2.0 Galaxy UD-2512UFW

Features

1. Convenient Useful Tools for Signage

2. High Precision High Quality

3. No Pate, Direct Printing on Substrate

SPECIFICATION:

Model UD-2512UFW
Maximum Print Width 2500mm*1260mm
Maximum Media Width 2500mm*1260mm
Printhead Epson DX5
Number of Printhead Two Head (CMYK+W)
Printhead ㎡/hr D 6 pass 20
S 8pass 15
Q 12pass 10
HQ 16pass 7
Ink Type UV Ink
Color C,M,Y,K,W
Capacity 1L Per Main Tank of Each Color
Ink Supply System Auto Ink Supply System
Media Type PS Board,KT Board,PVC Foam Board,Acrylic,Aluminum,Glass,Etc
Cleaning System Auto Cleaning Sytem
Print Interface USB2.0
Printhead Height 1 to 40mm from Media
RIP Software Maintop,Uitraprint,Photoprint,Wasatch,Onyx
Input Power AC 220V/230V,50HZ/60HZ
Printer Power 154W
Vacuum Power 4000W
Machine Dimension/N.M L3871*W2165*H1190MM/525kg
Package Dimension/G.M L4150*W2050*H1550MM/955kg

2500mm UV Flatbed Printer

  1. Head moves over print area - flatbed stays stationary.
  2. Built-in vacuum-bed holds lightweight products in place during printing. (option)
  3. Ink basket is conveniently located on top of the printer, including white ink circle system and low ink level alert.
  4. The control panel puts functions at your finger-tips including: manual flatbed height adjusts; auto-height adjust.
  5. Easy to operate, normal person can learn and use it professionally within 1-2 hours.
  6. Allows Inline Printing (white & color in the same pass)
  7. Allows different white color output, including background, edge and mirror (white lay down after color)
  8. Allows 3d texture effect printing
  9. can print on almost all type of material, such as metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicone, wooden...
  10. Industry design, build with industry liner guider and servo motor, guaranty running smoothly, stable and speed.

Printer Advantage

The digital UV Flatbed Printer is the latest UV machine of Galaxy company . This model is designed for industrial bulk production with high printing speed,which can print on almost any material directly .With UV light irradiatingduring printing procedure, images on object surface are dry fast and Scratch resistance.

1. High Standard, 8 Color Printing, Easy to Upgrade

PP2512UV standard configuration in accordance with the highest(CMYK, LC, LM,WV),

the highest configuration of 8 heads.According to customer needs to achieve the

expansion and upgrading of different configurations, improve the equipment performance

2. Printhead Collision Avoidance Function

Printhead collision avoidance function can ensure that when the position of the nozzle

is lower than the medium, stop the car movement, so as to effectively avoid the

damage of the printhead caused by misuse and poor quality of materials.

3. Media Positioning Function Device

Media positioning system allows customers to quickly and easily load the media, to

simplify the image positioning, thereby ensuring the high efficiency of print production.

4. Automatic Detection of the Thickness of the Media,

Printhead Height Automatic Control.

Can be printed on a material with a thickness of 100mm, automatic detection of media

thickness, according to the thickness of the media automatically adjust the height of the

printhead,greatly improve the degree of automation of production and the output quality

of image

5. White Ink Circulation Function

White ink will continue to circulate in the process of machine operation, ink is more fluid,

ensure continuous ink printing process,improve the performance of white ink

6. Automatic Regulating Double Negative Pressure System

Lung type negative pressure tank is connected in series with the air passage, negative

pressure is more stable, no need to manually, can be automatically adjusted, higher accuracy,

Double negative pressure design can ensure more smooth white printing.

UV Varnish Application Function

1. The use of UV Varnish, can enhance the image of the surface of the bright effect, resulting in concave and convex feel effect.

2. At the same time, the UV Varnish is attached to the surface of the image to a certain extent to protect the image.

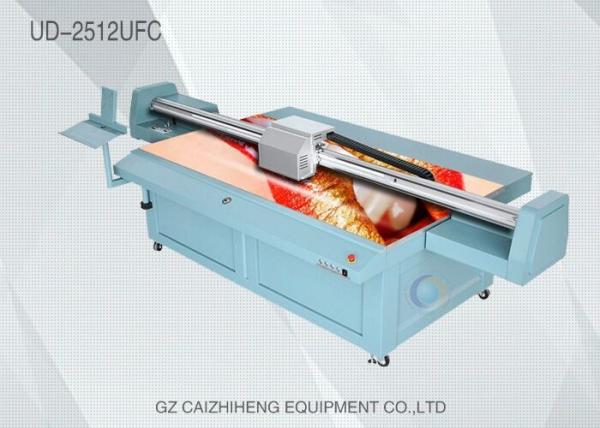

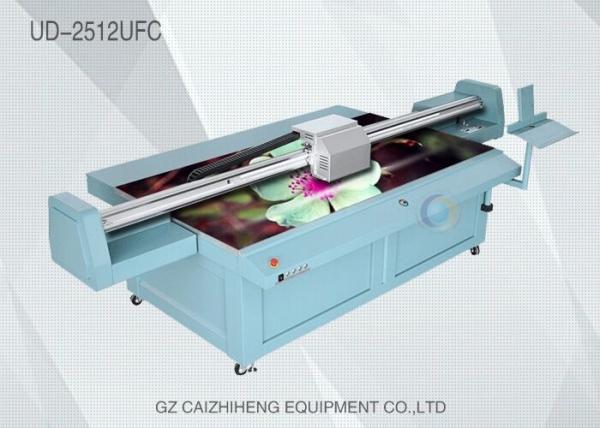

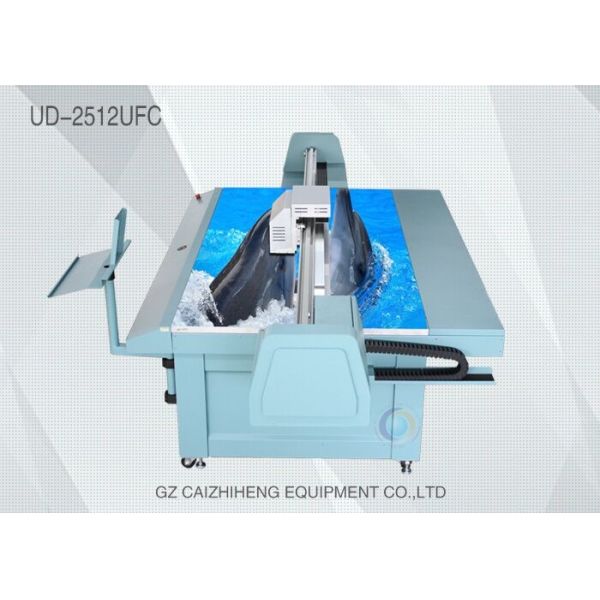

Printer Photos
