Intelligent Canvas Large Format Solvent Printer High Speed Challenger FY 3206R
Intelligent Canvas Large Format Solvent Printer High Speed Challenger FY 3206R
Specifications
Brand Name :
Challenger
Model Number :
FY - 3206R
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Set Per Month
Delivery Time :
5 - 8 work days
Packaging Details :
Wooden Case
Item :
Solvent Printer
Ink :
SK4
Weight :
591 KG
Usage :
Bill Printer , Card Printer
Warranty :
1 Year
Description

Intelligent Canvas Large Format Solvent Printer High Speed Challenger FY 3206R

parament List

Model
FY - 3206R
Printhead SII Printek Inc .
Drop on demand Piezo Head ( SPT510 - 35PL )
Number of printhead
6 heads
Print Speed( m / h )
Print Mode
Standard Output ( m / h)
D
39m2 / hr 360 X 360 dpi 1Pass
S
44m2 / hr 240 X 720 dpi 2Pass
Q
27m2 / hr 240 x 1080 dpi 3Pass
HQ
16m2 / hr 720 x 720 dpi 4Pass
Ink
Type
Solvent ink & ECO solvent ink
Color
6 Color (C , M , Y , K , Lc , Lm)
Capacity
1L or 5L per Main Tank of Each Color
Ink Supply System
Low Ink sensor , Auto or Manual Ink Supply System
Width
3300mm(129 , 92 inch)
Maximum Print Width
3200mm(125 , 98 inch)
Type

Frontlit , Backlit , Vinyl , Polyester , Window Film , Mesh , Leather , Backlit Film , Blue Back Paper
Auto Media Feeding System
Equipped ( Max Media Weight 120kg)
Thickness
4mm (Max .)
Heating System
3 way intelligent heater
Auto Media Feeding & Take -up System
Equipped
Auto Cleaning System
Positive Pressure Cleaning , Anti - Clogging Flash Function & Capping System
Print Interface
USB2 . 0
Printhead height
Above Media Adjustable
Power Specification
Printer : AC 220V , 50Hz 3 . 5A 770W / Heater : AC 220V , 50HZ 9A 1980W
Operational Environment
Temperature : 20°C - 28°C Humidity : 40% - 70%
Compatible RIP Software
Photoprint , UltraPrint ,Topaz , Wasatch , Caldera , Maitop
Machine Dimension
L4 , 500 x W905 x H1 , 260mm ; Net Weight : 348Kg
Package Dimension
L4 , 590 x W1050 x H890mm ; Net Weight : 591Kg

Challenger stable printer 3206R

1 . Low ink sensor , auto or manual ink supply system
2 . Double four color printing , vivid color & high speed
3 . X , Y axis AC servo motor Electric drive pinch roller
4 . Individual color cleaning minimizes the waste of the ink
5 . 3 way intelligent heater (pre / print / post) helps bring more vivid output
6 . The entire printing platform and the girder are made of the alloy - aluminum which is more strong , flat and quiet
7 . The machine select superior materials , greatly improving the life of the machine , avoid your second investment in a short period of time , worth the value .

8 . Full alloy - aluminum platform , rear , platen , and front individual heating system improve the absorbency of materials , the picture is more beautiful and the finished products dry more quickly

9 . AC servo motor for both X and Y direction which are stable and durable .

10 . Adapt 8 bearings mechanical movement , spray car without vibration , make the print more stable , the resolution is higher .

11 . LED lighting on platform and the ink staion , let the print of picture clearly visible , nozzle care is more convenient .

12 . Double abrupt stop switchs , can stop any emergency timely , protect the printheads better .

Feature

1 . Adopts Aluminium Alloy girder which is much stronger and flatter than other metal , insure you high precision printing . Seiko / 35pl Printhead

2. Adopts THK 20mm low noise guide rail with dual sliders , more durable and reliable for high precision printing

3 . Strong heavy duty machine body ( Double stands ) insure stable printing for long time work

4 . Excellent roller system , for easy media feeding

5 . Media sensor for test media when media is going to running out

6 . Anti - collision performance When the sensor installed on the both sides of the carriage detect that the position of the print head is lower than the thick medium , the carriage will initiate an immediate stop

to protect the solvent printer

7 . Automatic capping system for easy operation and maintenance

8 . Bulk ink supply system set on top easy to monitor ink level , easy ink refill

9 . USB 2.0 interface for better data transfer and anti - signal interference

10 . Adopt metal optical cable from mainboard to carriage board , to make sure fast and stable data transit

Service

We agree that after - sales service is as important as the printer quality .So we give super good service for all the customers and the customers who buy the printers from us are no any headache with using and mantaining

We provide

1 . All the machines bought from us have 12 months warranty.If any spareparts broken within this period , pls send back to us and we will repair or exchange new parts to you

2 . We give original good quality machines with well standard export packing . We give one set of free ink(C , M , Y , K 4 bottles ) , original software , and necessary parts and tools

3 . For installation , we give English operation manual . And we give online support too . If you need , we can provide installaton video or we can send our technician to your place to install and set for you

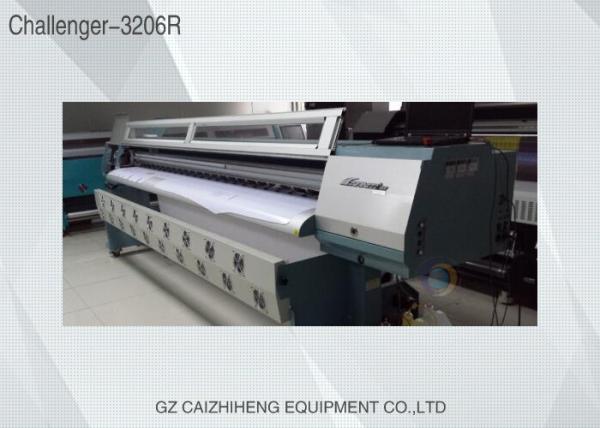

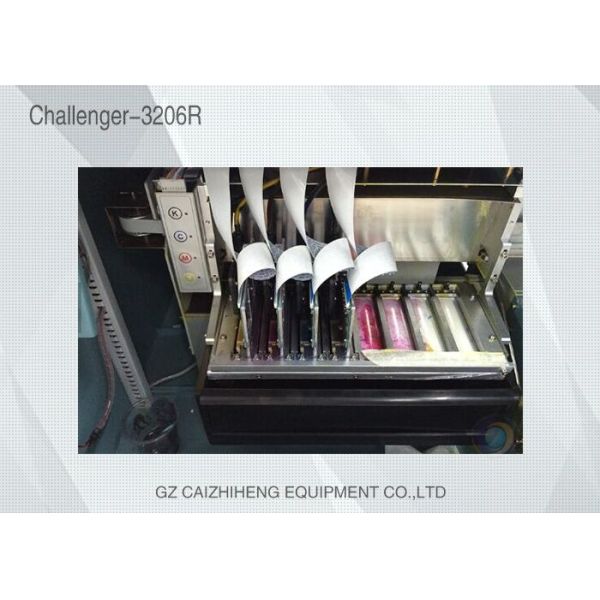

Product Display

Intelligent Canvas Large Format Solvent Printer High Speed Challenger FY 3206R
