CMYK Desktop Large Format Solvent Printer 720 DPI Challenger FY 3208E
CMYK Desktop Large Format Solvent Printer 720 DPI Challenger FY 3208E
Specifications
Brand Name :
Challenger
Model Number :
FY 3208E
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,, MoneyGram
Supply Ability :
500 set per month
Delivery Time :
5 - 8 work days
Packaging Details :
Wooden Case
Type :
Inkjet Printer
Printing Width :
3200 MM
Printhead :
SPT 510
Ink :
Solvent Ink
Dimensions :
4500 x 905 x H1230 mm
Gross Power :
3000 W
Description

CMYK Desktop Large Format Solvent Printer 720 DPI Challenger FY 3208E ​


Features

Infinity / Challenger UD - 3208E Solvent Printer with SPT510 35PL print head
Product Model : UD - 3208E

Printhead : SPT510 - 35PL
Number of Printhead : 8 Heads

Maximum Print Width : 3200mm
Ink Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors ( C , M , Y , K )
Capacity : 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector , Auto or Manual Ink Supply System
Media Width : 3300mm
Type : Vinyl , Flex , Polyester , Back - lit Film , Window Film , etc

MODEL UD - 3208E
Printhead
SII Printek Inc .		 SPT 510 - 35PL
Number of printhead 8 Heads
Maximum print width 3 , 200mm
Print Speed (m2/h) Print mode Standard output (m2 / h)
D 2 PASS 76
S 3 PASS 51
Q 4 PASS 34
HQ 6 PASS 26
C -
Ink Type Solvent Ink / ECO Solvent Ink
Color Double 4 Color (C , M , Y , K)
Capacity 1L or 5L per Main Tank of Each Color
Ink Supply System Low Ink Dectector , Auto or Manual Ink Supply
System
Media Width Maximum 3 , 300mm

Media Type Vinyl , Window Film , Polyester , Flex , Back - lit Film , etc
Auto Media Feeding System Equipped (Max . Media Weight 80kg)
Auto Cleaning System Individual Positive Pressure Cleaning
Anti - clogged Flash Function & Capping System
Pre - heating & Drying System Equipped
Clamp Equipped
Print Interface USB 2 . 0
Printhead Height 2 to 6 mm from Media
RIP Software Maintop , Ultraprint , Photoprint , Wasatch , Topaz
Input Power AC 220V , 50Hz / 60Hz
Machine Dimension / N . W L4 , 786 x W930 x H1 , 350mm / 724KG
Package Dimension / G . W L4 , 980 x W1 , 140 x H1 , 640mm / 1064KG

Features

1. Heavy duty roller driving structure, film and durable body, operating with high resolution, and long service life.

2. Adopts THK 20MM width linear guide rails with double slider and sound off function, more durable and reliable for high precision printing.

3. Equipped with intelligent infrared heater and fan drying system.

4. Bulk ink supply system is set on the top of printer, easy to monitor ink level and to refill ink.

5. More choice with 4-Color or 8-Color ink modes.

Advantage

1. New upgrade version tower shaped gear external fixation,One-batch forming, much higher resolution printing,Make sure the belt transport more stable,further optimize.eco solvent printer.

2. Aluminum step large synchronous wheel, much higher resolution and makes high quality.

3. The waste ink bottle with overflow alarm system.printing machine.

4. Machine printing and heating dual independent leakage protection system.digital solvent printer.

5. In order to improve the anti-interference ability of machine, we upgrade to match it with

anti-interference circular in 4 different place.Inkjet printer

6. Optimize industry common standard T shape frame structure

7. Constant heating on print head plate, sub-ink tank and ink tube shall make sure machine still prints brilliantly even under cold environment.

8. Powerful functions units, ensure machine output stably and effectively all the time.

9. Industrial armored optical fiber specified for moving towline, it avoids lost of frequently changing, helps to save much time and cost.

10. Media feeding system machines is able to fulfill different demand of different material for customers.

11. Stepless carriage height adjustment, easy for printing different materials.

Package And Shipping

1 . Machine Always Be Packed In The Safe Wooden Case To Against Damaged

2 . Printer Should Be Strictly Check By Us Before Send Out

3 . What Is More , We Will Send The Tracking Number To You After Send Out The Machine , You Can Check The Printer Any Where By Internet , That Will Be More Convenience And Clear


Product Display

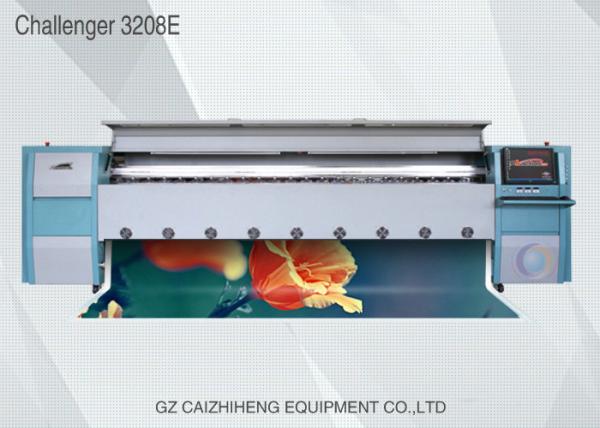

CMYK Desktop Large Format Solvent Printer 720 DPI Challenger FY 3208E
