Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J
Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J
Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J
Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J
Specifications
Brand Name :
Infiniti
Model Number :
3286J
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability :
500 Set Per Month
Delivery Time :
5 - 8 Work days
Packaging Details :
Wooden Case
Type :
Inkjet Printer
Printhead :
SPT 508
Number of Printhead :
6 Heads
Printing Width :
3200mm
Print Interface :
USB 3.0
Voltage :
220V
Description

Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J

Printer Details

1. With 6 Spt 508 Gray Scale Printheads

2. Outdoor Eco Solvent Printer

3. 3.2m Max Printing Width

4. Full Aluminum Platform

5. 6 Corlor: C M Y K Lc Lm

6. Adopt Usb2.0 Output System, Faster And More Flexible

7. Ac X,Y Servo Motor Operate Stably

Model Infiniti-3286J
Print Head Drop on demand Piezo Head
Number of Print Head 6 Heads
Maximum Print Width 3,200mm (125.98”)
Max. Media Width 3,300mm (129.92')
Max. Media Weight 80kg
Media Type Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film, Blue Back Paper…
Media Thickness 4mm (Max.)
Heating System 3 way intelligent heater
Auto Media Feeding & Take-up System Equipped
Ink Eco Solvent Ink (C,M,Y,K,Lc,Lm)
Auto Cleaning System Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System
Print Interface USB 2.0
Power Specification AC 220V/230V 50Hz/60Hz
Operational Environment Temperature: 20°C-28°C Humidity: 40%-60%
Compatible RIP Software Photoprint, UltraPrint, Topaz, Wasatch, Caldera, Maintop
Machine size L4766mm×W930mm×H1350mm 640kg
Package size L4980mm×W1140mm×H1620mm 923kg

Specifications:

1. Faster Speed,With Spt 508 Head (8heads)

2. Max. Print Width:3.2m (105ft)

3. Stable Quanlity, No Headache,

4. Easy Control And Maintain

Features

1. The upgraded version and advanced technologies in printer control system, movement system, auto clean&protect system and ink supply system

2. 6 color ink supply which outputs delicately and colorfully.

3. Nice appearance, Simple structure design, convenient operation and easy maintaince

4. Printhead can be adjusted up and down for different thickness medias.

5. With automatic ink pumping and head cleaning&wipping.
6. With USB plug and play transmission interface, Speed up to 480M/s, it can support network interface and you also can print in a differenct place

Advantages

1. Adopt SPT 508GS print head, printing color are CMYK LC LM, greatly improve the printing speed.

2. Advanced Micro Piezo Technology, realized 1440dpi, perfect printing effect.

3. Stable mute linear guide will improve the printing speed and resolution.

4. Convenience high speed USB interface.

5. Automatic lifting ink stack, precision alignment, smooth ink absorption.

6. Intensive pressure roller, printing no skew.

7. Heating temperature can be controlled by printing demand

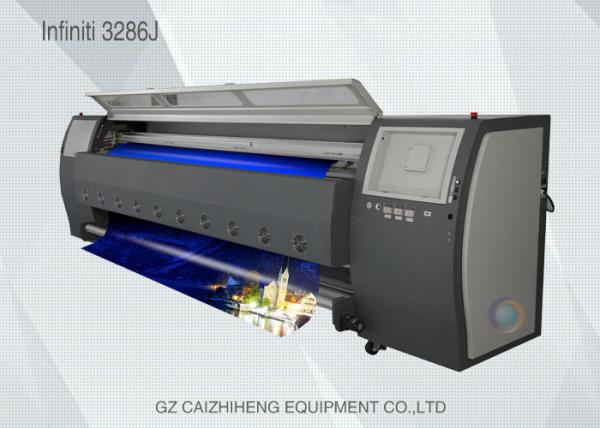

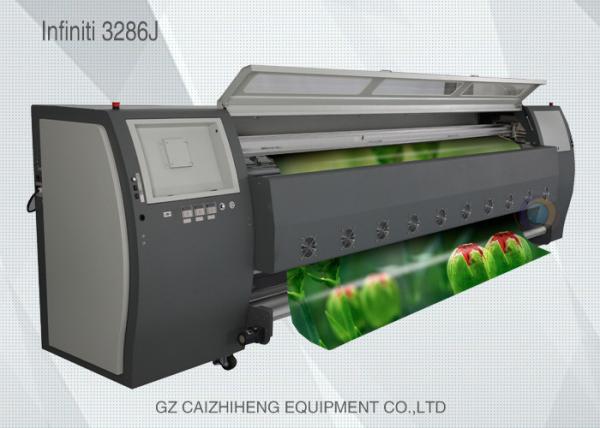

Product Display

Fast Speed Inkjet Eco Solvent Printing Machine Large Format Infiniti 3286J
