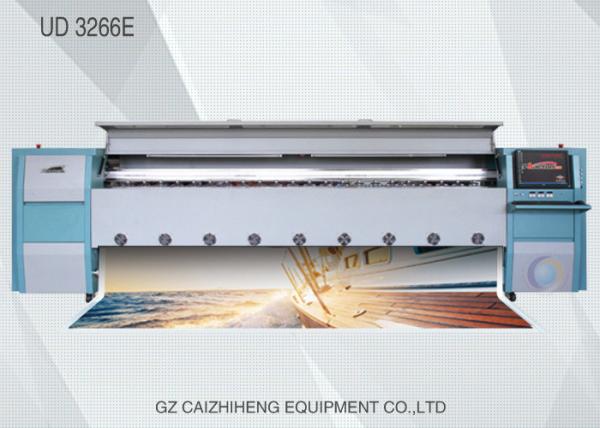

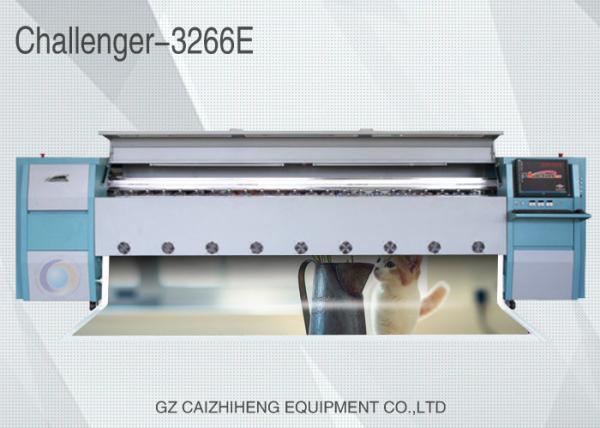

Indoor Solvent Wide Format Printing Machines High Precision Challenger 3266E
Indoor Solvent Wide Format Printing Machines High Precision Challenger 3266E
Indoor Solvent Wide Format Printing Machines High Precision Challenger 3266E
Indoor Solvent Wide Format Printing Machines High Precision Challenger 3266E
Specifications
Brand Name :
Challenger
Model Number :
FY - 3266E
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Cash
Supply Ability :
500 Set Per Month
Delivery Time :
5-8 work Days
Packaging Details :
Wooden Case
Voltage :
AC 220V, 50Hz/60Hz
Weight :
1024kg
Usage :
Digital solvent printer
Ink color :
L, M, Y, C, LC, LM
Warranty :
1 year
Description

Indoor Solvent Wide Format Printing Machines High Precision Challenger 3266E

Product Descripition

1. High Precision Speed
2. High quality
3. Leading Technology
4. Seiko SPT1020-35PL Printhead
5. 6 Color Printing

Pheaton Digital outdoor inkjet printer with max printing width 3.2M(10.5ft),

Digital Eco-Solvent Printer E Series UD-3266E ,

With 6pcs Seiko SPT1020-35PL Printheads, Large Format Printer ,

With six color printing to give a vivid ,colorful color .

Model UD-3266E
Printhead
SII Printek Inc.		 SPT1020-35PL
Number of printhead 6 Heads
Maximum print width 3,200mm
Print Speed (m2/h) Print mode Standard output(m2/h)
D 2 PASS 75
S 3 PASS 58
Q 4 PASS 44
HQ 6 PASS 29
C 8 PASS 21
Ink Type: Solvent Ink / ECO Solvent Ink
Color : 6 Color (C,M,Y,K,Lc,Lm)
Capacity: 1L or 5L per Main Tank of Each Color
Ink Supply System Low Ink Dectector, Auto or Manual Ink Supply
System
Media Width Maximum 3,300mm

Media Type Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System Equipped (Max. Media Weight 80kg)
Auto Cleaning System Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped
Clamp Equipped
Print Interface USB 2.0
Printhead Height 2 to 6 mm from Media
RIP Software Maintop, Ultraprint, Photoprint, Wasatch, Topaz
Input Power AC 220V, 50Hz/60Hz
Machine Dimension / N.W L4, 786 x W930 x H1,350mm / 724KG
Package Dimension / G.W L4, 980 x W1,140 x H1,640mm / 1064KG

Machine Configuration

Media feeding & take-up system Infra Red Optical Controlling System for Media Feeding &Take-up
Drying system Pre/Post and Middle heater controlled by PID
Motor Fuji or Panasonic AC Servo Motor
Print head maintenance facility Protection trays for auto purge, daily maintenance and print heads over night
Auto-cleaning system Individual purging system & 3 way vale system
Filtration Facility PALL filter + Regular ink filter
Ink delivery system Positive pressure system
  • Double 4 color printing,the standard output achieves 75 /hr.
  • AC servo motor is used to run the carriage quicker and more stable.
  • Individual color purging minmizes the waste of the ink.
  • 3 way intelligent heater helps bring more vivid output.
  • The entire printing platform and the girder are made of the alloy-aluminum which is more strong and flat.
  • Adopt USB2.0 output system,faster and more flexible.

Advantage

  1. Specifications, design and dimensions stated in this website may be subject to change without notice (for technical improvements, etc).
  2. The corporate names and merchandise names written on this website are the trademark or registered trademark of the respective corporations.
  3. Inkjet printers print using extremely fine dots, so colors may very slightly vary after replacement of the printing heads. Also note that if using multiple printer units, colors could vary slightly from one unit to other unit due to slight individual differences
  4. Creative inkjet technology and high quality ink provides ultra-high resolution printing
  5. Create ultra-high resolution print Piezo inkjet system
  • Precise control of ink firing reproduces details of photo image at a maximum resolution of 1,440 dpi. Even edges of 4-point text are printed sharp and clear.

  • 4-color mode realizes non-grainy finish Variable dot technology

  • By producing dots in three different sizes, smooth high resolution graphics are created without a grainy appearance. Even at high speed and in low resolution mode high quality printing is possible.

  • Ink performance is improved Triple stage intelligent heater

  • A triple stage intelligent heater automatically heats up the media to the appropriate temperature, thus improving the performance of ink. A newly mounted Post-heater quickens drying time and thus enables a fast take-up of the media

We povice

1. All the machines bought from us have 12-14 months warranty.If any spareparts broken within this period, pls send back to us and we will repair or exchange new parts to you.

2. We give original good quality machines with well standard export packing.We give one set of free ink(C,M,Y,K 4 bottles),original software,and necessary parts and tools.

3. For installation,we give English operation manual.And we give online support too.If you need,we can provide installaton video or we can send our technician to your place to install and set for you.

Product Display
