512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer
512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer
512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer
512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer
Specifications
Brand Name :
Polaries
Model Number :
512 35pl
Certification :
CE
Place of Origin :
America
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram,Cash
Supply Ability :
500 Pcs Per Month
Delivery Time :
Within 3-5 work days
Packaging Details :
Package In The Carton
Model Name :
512 35PL
Brand :
Polaries
Resolution :
1440DPI
Condition :
Original And Brand New
Place Of Original :
America
MOQ :
1 PCS
Description

512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer

Specifications: Spectra Polaris 512 35pl Printhead

Model Active nozzle Dry Weight Adjustment for drop size Print width Drop Volume Firing frequency Nominal drop velocity
Spectra SL-128 128 65 - 90 picoliters 80pl 30KHz 8m/sec
Polaris 512 512 160 grams 35 - 80 picoliters 64.897mm 35pl 30KHz 8m/sec
Polaris 512 512 160 grams 15 – 30 picoliters 64.897mm 15pl 40KHz 8m/sec


1. Technology: Piezo Electric

2. Max. Resolution: 800 dpi

3. Droplet Size: 35 Pico Litre

4. Range for Droplet Size: 35-80 Pico Litre
5. Amount of Nozzles: 512
6. Nozzle Spacing: 127 microns (1 colour) or 254 microns (2 colours)
7. Firing Frequency: 30 kHz (15 kHz for 80 pico litre droplets)
8. Operating Temperature: up to 60°C
9. Ink Compatibility: Solvent, water-based and UV Inks

Fetures

1. USA Original Spectra Polaris print head
2. PQ-512/ 35pl AAA Print head
3. Print head for Solvent or UV printer

The Polaris PQ-512/ 35 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

The printhead is designed for binary jetting using a 35-picoliter native drop size with 8-meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 80 picoliters with resolution up to 800 dpi.

Suitable Printers

printer brand Compatible printers model
JHF JHF Q8 3304PQ/ JHF Q8 3308PQ
WIT-COLOR WIT-COLOR ULTRA4000 3304/ ULTRA4000 3308
Gongzheng GZT3204/ GZT3202AU/ GZR3208AU/ GZT3208AU/ Gongzheng StormJet T3208AU
Others ORASIGN W-320PQ/ W-180PQ/ Flora LJ320P/ Flora HJII 5000UV, / LEOPARD Q8 3304PQ/ Q8 3308PQ/APRINT Fox 330P/ DGI PQ-3202 / PQ-3204 Sun Neo UV-LED Flatbed, Teckwin Teck UV 3200SR / TeckStorm TS600 / TeckStorm TS300/Aprint Limos/FPU2512
Advantage

1. 35 picoliter nominal drop size
2. Resolutions up to 800 dpi
3. 512 individual addressable nozzles
4. VersaDrop™ binary jetting capability
5. Supports UV-curable, solvent, and aqueous-based inks
6. Configurable for single- and two-color operation
7. Integral mounting bezel with precision features
8. Built-in heaters and temperature sensors
9. Operation up to 60°C [140°F]
10. Simplified field repair with no special tools required

To be used with:

ORASIGN W-320PQ, ORASIGN W-180PQ, WIT-COLOR ULTRA4000 4H/6H, WIT-COLOR ULTRA4000 8H, Flora LJ320P, GONGZHENG GZT3204, GONGZHENG GZT3202, GONGZHENG GZR3208, GONGZHENG GZT3208AU, JHF A8 3304PQ, JHF A8 3308PQ, LEOPARD Q8 3304PQ, LEOPARD Q8 3308PQ, APRINT 330P

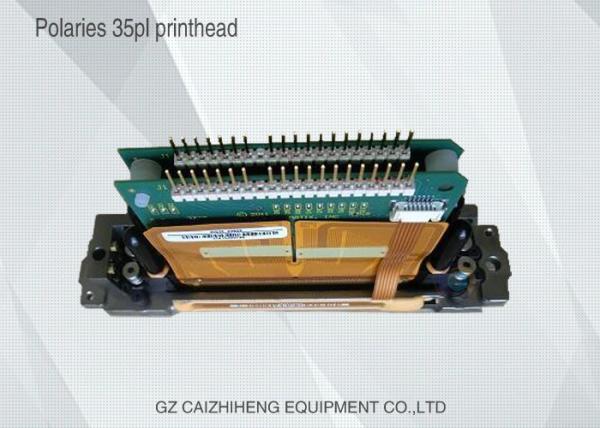

Printhead Photos

512 Nozzles Solvent Printer Print Head Piezo Electric For Flora Lj320p Printer
