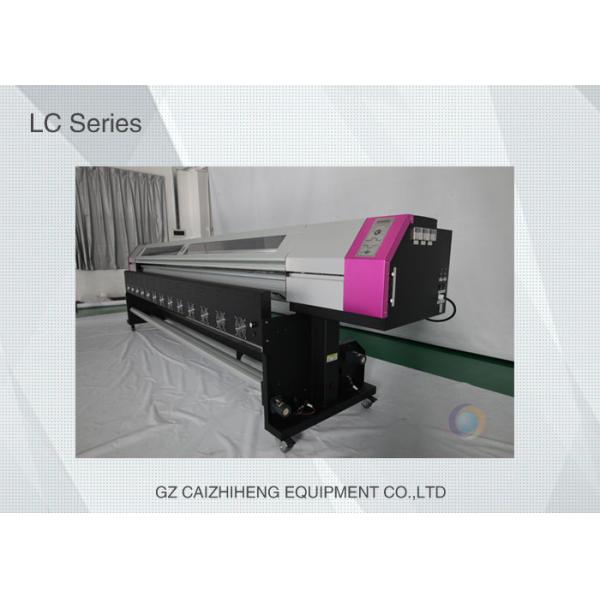

Wide Format Eco Solvent Vinyl Printing Machine Flatbed Galaxy UD161LC
Wide Format Eco Solvent Vinyl Printing Machine Flatbed Galaxy UD161LC
Wide Format Eco Solvent Vinyl Printing Machine Flatbed Galaxy UD161LC
Wide Format Eco Solvent Vinyl Printing Machine Flatbed Galaxy UD161LC
Specifications
Brand Name :
Galaxy
Model Number :
UD 161LC
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability :
500 Set Per Month
Delivery Time :
5 - 8 Work Days
Packaging Details :
Wooden Case
Plate Type :
Flatbed Printer
Color & page :
Multticolor
Gross Power :
700w
Printing Width :
1 . 6 m
Condition :
New
Voltage :
220v
Description

Wide Format Eco Solvent Vinyl Printing Machine Flatbed Galaxy UD161LC

Galaxy UD - 1612LC Printer

1 . Full aluminum platform , high quality and long life

2 . Self - developed automatic cleaning and capping system which make the operation and maintenance convenient

3 . X ,Y axis AC servo motors , which is stable and durable

4 . Bearing and rail with less noise , low resistance and no vibration

5 . Individual color purging minmizes the waste of the ink

6 . 3 way intelligent heater improve the printing quality

7 . Adopt USB2 . 0 output system , which is faster and more flexible

Product information

No.of printhead 1 or 2 pcs
Using Printhead EP DX5 / DX7
Printing Consumption 40 ~ 80ml / sqm
Cleaning System Positive Pressure Cleaning Anti - clogged Flash Function & Capping
Ink Supply System Auto Ink Supply System
Ink Type Eco Solvent Printing Ink
Ink Color 4 colors / Double 4 colors
Media Type Flex banner , Pvc , Self adhensive vinyl , PP paper , One way vision , Wall paper , Mesh and so on
Packing Size L2910 x W1100 x H845mm ; Gross Weight : 360Kgs

Media Type Vinyl , Polyester , Flex , Back - lit Film , PS Board , KT Board , PVC Board , etc
Auto Media Feeding System Equipped (Max . Media Weight 25kg)
Auto Cleaning System Anti - clogged Flash Function & Capping System
Pre - heating & Drying System Equipped
Clamp Equipped
Print Interface USB 2 . 0
Printhead Height 2 to 6 mm from Media
RIP Software Ultraprint , Maintop , Photoprint , Wasatch , Ergosoft
Input Power AC 220V , 50Hz / 60Hz
Machine Dimension / N . W L2 , 820 x W990 x H1 , 260mm / 200KG
Package Dimension / G . W L2 , 860 x W1 , 050 x H685mm / 377KG

1 ．Double Epson DX5 Print heads , faster speed , longer head life time

2 . Feather printing funcation available , print heads correction and counterpoint are more easy

3 ．X axis and Y axis are using AC servo motors

4 . Intelligent print head cleaning service , supplys safe and convenient print head cleaning and protection function

5 . Equipped with the feeding motor Positive and Negative transfer function , taking and feeding constant tension transmission syst

6 . The unique print platform design to make the cloth always smooth in the process of printing

7 . Unique filtering lampblack system , make the picture very clean

8 . Taking up and feeding roller are inflatable roller

9 . Taking up and feeding fabric are smoothly

10 . Low cost and no need any transfer paper

Guarantee & service

1 . machine has one to two years warranty, we can offer technical service at anytime

2 . Machine can be used for several years without any problem while you maintain it good

3 . After you made order , we can affard you printer training by free

4 . All of our techinicians have more than 10 years experience , and they can provide you 24 hours - online service and even overcean service

Any request , please connect us at any time !
