10ft Phaeton Inkjet Large Format Solvent Printer UD 3266P SPT1020 Printhead
10ft Phaeton Inkjet Large Format Solvent Printer UD 3266P SPT1020 Printhead
Specifications
Brand Name :
Phaeton
Model Number :
UD-3266P
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability :
500 Set Per Month
Delivery Time :
5-8 work days
Packaging Details :
Wooden Case
Usage :
Digital Inkjet Printer
Warranty :
1 Years
Condition :
New
Color :
C,M,Y,K
Printing width :
3200mm
Description

10ft Phaeton Inkjet Large Format Solvent Printer UD 3266P SPT1020 Printhead

Specifications:

1. High Resolution, Vivid Output

2. Fast Speed, Keeping Efficient Productivity

3. Stable Quality, No Headache

4. Easy Control & Maintain

5. Full aluminum platform;

6. X,Y axis AC servo motors,high quality.

7. Bearing rail is stable and long durability;

8. USB2.0 high speed data port, ensure high speed and quality and long scale output printing.

MODEL UD-3266P
Printhead
SII Printek Inc.		 SPT1020-35PL
Number of printhead 6 Heads
Maximum print width 3,200mm
Print Speed (m2/h) Print mode Standard output(m2/h)
D 2 PASS 75
S 3 PASS 58
Q 4 PASS 44
HQ 6 PASS 29
C 8 PASS 21
Ink Type: Solvent Ink / ECO Solvent Ink
Color : 6 Color (C,M,Y,K,Lc,Lm)
Capacity: 1L or 5L per Main Tank of Each Color
Ink Supply System Low Ink Dectector, Auto or Manual Ink Supply
System
Media Width Maximum 3,300mm

MODEL UD-3266P
Media Type Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc.
Auto Media Feeding System Equipped (Max. Media Weight 80kg)
Auto Cleaning System Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped
Clamp Equipped
Print Interface USB 2.0
Printhead Height 2 to 6 mm from Media
RIP Software Maintop, Ultraprint, Photoprint, Wasatch, Topaz
Input Power AC 220V, 50Hz/60Hz
Machine Dimension / N.W L4, 500 x W905 x H1,260mm / 348KG
Package Dimension / G.W L4, 590 x W1,050 x H890mm / 591KG

UD-3266P Printer Specifications:

1. Super speed,with 4/6pcs seiko SPT 1020 35pl head;

2. Max,print width: 3.2m(10ft)

3. Stable quanlity, no headache,

4. Easy control and maintain

5. Super quality for 6colors priniting

6. Super Speed and High quality.

MACHINE DESCRIPTION :

1. Equipped with 4/6 508GS printhead,draft printing is up to 91sqm/h.

2. 4/6 Color :C/M/Y/K or CMYK Lc Lm Colors.

3. 3 way heaters,fast-dry.

4. Automatic Feeding, Taking Up, Cleaning, Heating, Cooling.

5. Panasonic servo motor system with long life, high accuracy and quick response.

Single color positive flush,which save ink and reduces the cost of production,

The value of step and bi-direction can be adjusted during printing.

Printhead temperature can be automatically detected by a device, it will adjust the printhead

voltage accordingly, which ensures printhead in a good performance.

Main function and deployment

1. Adopt KM512i/30PL print head which can achieve high quality printing for short distance observation.

2. Optional for professional collecting system to achieve consistent printing quality and safety of print head in high-quality printing

3. Second ink tank,print head heating system,three-stage adjustable temperature heater for media.

4. Adopt high power&intelligent infrared drying system and fan drying system to ensure immediate drying after printed.

5. Using panasonic drive system and THK high performance linear rail from Japan

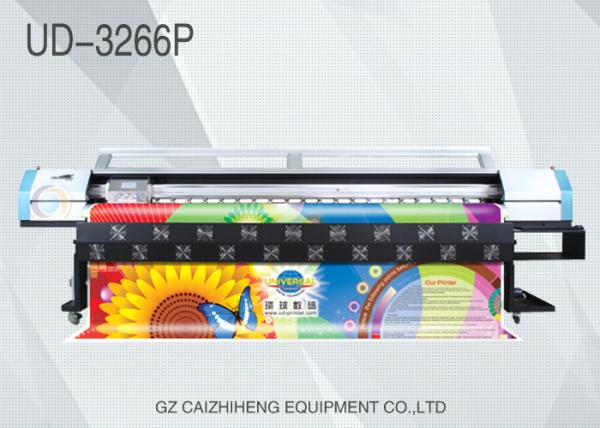

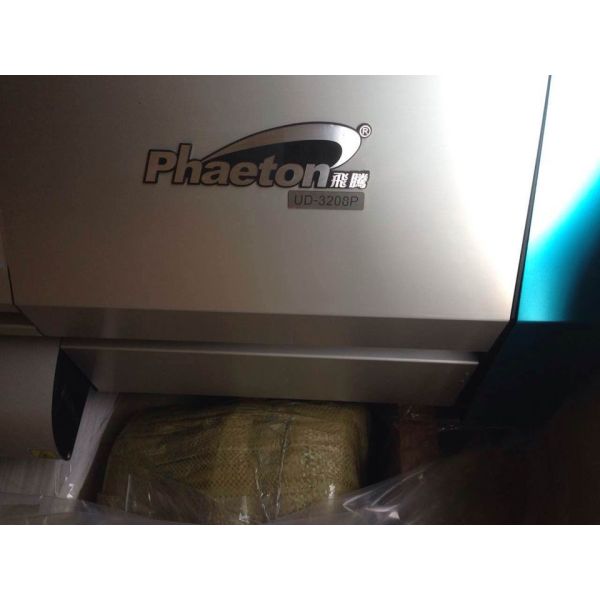

Printer Photo

10ft Phaeton Inkjet Large Format Solvent Printer UD 3266P SPT1020 Printhead
