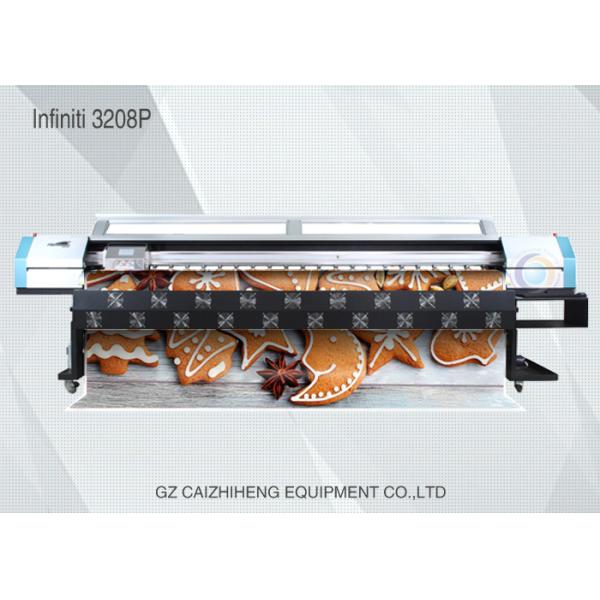

Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P
Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P
Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P
Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P
Specifications
Brand Name :
Infiniti
Model Number :
FY - 3208P
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 set per month
Delivery Time :
5 - 8 work days
Packaging Details :
Wooden Case
Printhead :
SPT 510 / 35 PL
Ink Type :
Solvent Ink
Media Type :
Frontlit , Backlit , Vinyl , Polyest
Ink :
SK4 Solvent Ink
Weight :
591 KG
Description

Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P

Product Description

1 . Low ink sensor , auto or manual ink supply system

2 . Double four color printing , vivid color & high speed

3 . X , Y axis AC servo motor Electric drive pinch roller

4 . Individual color cleaning minimizes the waste of the ink

5 . 3 way intelligent heater ( pre / print / post ) helps bring more vivid output

6 . The entire printing platform and the girder are made of the alloy-aluminum which is more strong , flat and quiet

Parametre List

Model
UD - 3208P
Printhead SII Printek Inc.
SPT 510 - 35PL
Number of printhead
8 Heads
Maximum print width
3,200mm
Print Speed (m2/h)
Print mode
Standard output ( m2 / h )
D
2 pass 76
S
3 pass 51
Q
4 pass 34
HQ
4 pass 26
C
-
Ink
Type
Solvent Ink / ECO Solvent Ink
Color
6 Color (C , M , Y , K , Lc , Lm)
Capacity
1L or 5L per Main Tank of Each Color
Ink Supply System
Low Ink Dectector , Auto or Manual Ink Supply
System
Media Width
Maximum 3 , 300mm
Media Type
Vinyl , Window Film , Polyester , Flex , Back - lit Film , etc
Auto Media Feeding System
Equipped ( Max . Media Weight 80kg)
Auto Cleaning System
Individual Positive Pressure Cleaning
Pre-heating & Drying System
Equipped
Clamp
Equipped
Print Interface
USB 2 . 0
Printhead Height
2 to 6 mm from Media
RIP Software
Maintop , Ultraprint , Photoprint , Wasatch , Topaz
Input Power
AC 220V , 50Hz / 60Hz
Machine Dimension / N.W
L4 , 500 x W905 x H1 , 260mm / 348KG
Package Dimension / G.W
L4 , 590 x W1 , 050 x H890mm / 591KG
Requirement
Temperature : 20°C - 28°C Humidity : 40% - 60%

Feature

1 . Adopts Aluminium Alloy girder which is much stronger and flatter than other metal , insure you high precision printing. Seiko 510 / 35pl Printhead

2 . Adopts THK 20mm low noise guide rail with dual sliders , more durable and reliable for high precision printing

3 . Strong heavy duty machine body ( Double stands ) insure stable printing for long time work

4 . Excellent roller system , for easy media feeding

5 . Media sensor for test media when media is going to running out

6 . Anti - collision performance When the sensor installed on the both sides of the carriage detect that the position of the print head is lower than the thick medium , the carriage will initiate an immediate stop

to protect the solvent printer

7 . Automatic capping system for easy operation and maintenance

8 . Bulk ink supply system set on top easy to monitor ink level , easy ink refill

9 . USB 2.0 interface for better data transfer and anti - signal interference

10 . Adopt metal optical cable from mainboard to carriage board , to make sure fast and stable data transit

Advantages of Konica Solvent Printer

1. Excellent mechanical G shape frame structure, main bottom frame was wholly milled by

German imported 6 meter planer type milling machine, which error is only less than 0.05mm.

2.Digital Solvent Printer with Seiko 510 /35pl Printhead

Infiniti printer use USB system which certified and strongly recommended by Infiniti factory

3. Double drying fan system or optional infrared heating system and drying fan can satisfy the large printing output.

4. Feeding up gear protective cover, which protect the operator or engineer from the risk of hurt.

Product Display

Advertising Flatbed Digital Solvent Printer Desktop High Precision Infiniti FY 3208P
