Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P
Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P
Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P
Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P
Specifications
Brand Name :
Infiniti
Model Number :
FY-3206P
Certification :
CE
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Cash
Supply Ability :
500 set per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Type :
Injet Printer
Weight :
300kg
Gross Power :
3000W
Available size :
3.2M
Plate Type :
Screen Printer
Ink :
SK4 Ink
Description

Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P ​


Product Description

1. Equipped with 6 SPT 510-35PL printhead
2. 6 colors, CYMK, LC, LM
3. AC servo motor is used to run the carriage quicker and more stable
4. Individual color cleaning minimizes the waste of the ink
5. 3 way intelligent heater (pre/print/post) helps bring more vivid output
Features of Infiniti FY 3206P inkjet printing machine 6 colors ,6 heads,high quality



Parametre List

Model
UD-3206P
Printhead
SPT 510/35pl
Number of printhead
6 heads
Maximum print width
3200mm
Print Speed(m/h)
Print Mode
Standard Output(m/h)
D 2 PASS 39
S 3 PASS 27
Q 4 PASS 18
HQ 6 PASS 14
Ink
Type
Solvent ink&ECO solvent ink
Color
(C,M,Y,K,LC,LM)
Capacity
1L or 5L per Main Tank of Each Color
Ink Supply System
Low Ink sensor ,Auto or Manual Ink Supply System
Media
Width
Max. 3300m
Type
Vinyl, Window Film, Polyester, Flex, Back-lit Film, etc
Auto Media Feeding System
Equipped(Max Media Weight 80kg)
Auto Cleaning System
Individual Positive Pressure Cleaning, Anti-clogged Flash Function&Capping System
Pre-heatig&Drying Sytem
Equipped
Clamp
Equipped
Print Interface
USB2.0
Printhead height
2-6mm from Media
RIP Software
Maintop, Ultraprint, Photoprint, Wasatch, Topaz
Input Power
AC 220V,50Hz/60Hz
Machine Dimension
L4, 500 x W905 x H1,260mm / 348KG
Package Dimension
L4, 590 x W1,050 x H890mm / 591KG
Requirement Temperature:20°C-28°C Humidity:40%-60%

Our Services

1. We guarantee you all machine are 100% Original with all Original parts like Mainboard and Headboard etc.
2. We provide you English Software ,Manual ,Operation Video.
3. One Year Warranty for Mainboard and Headboard, If spare parts broken,we can offer you all parts original.
4. We have Engineer in Different Countries of Northern America,South America,South Africa,,Africa etc.
5. We provide you 24-hour Online Technical Support ( Lifetime ).


Features

1. Seiko Instrument Group SPT print head, 510 nozzles per print head
2. The voltage of the print head is able to adjust automatically depending on the temperature. This will

solve the problem on nozzle clogging under huge temperature change.
3. The function of skipping white space is added to increase productivity.
4. The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
5. Edge feather function can blur the pass line and feather pass edge.
6. Well designed alloy-aluminum girder is installed to decrease the noise during printing.

Achieve The Perfect Quiet Working Environment


1. Photoprint / Maintop / Wasatch software provide user-friendly interface and handy function with

two types of printing.
2. 100% single color black is used on printing black text to avoid mixture of color.

3. Control system has the function of resuming printing after the power is cut off. This helps you to save

unnecessary loss of cost.
4. The powerful suction fans equipped under the printing platform to avoid the collision between the carriage and the media, high resolution can be obtained.

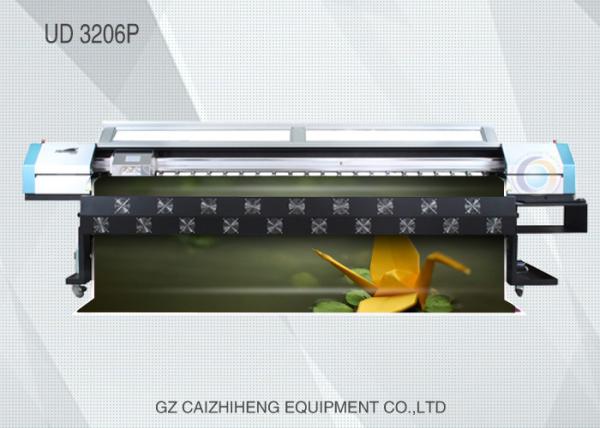

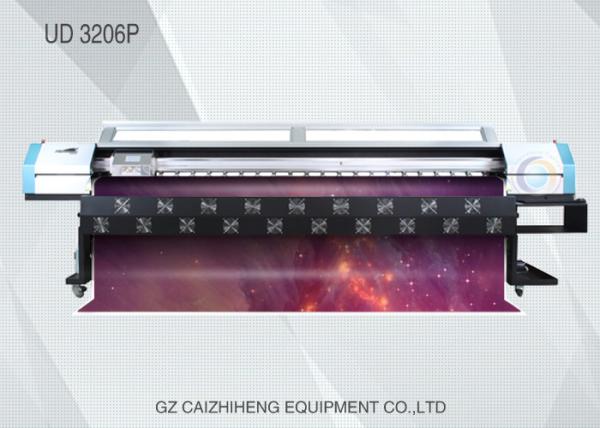

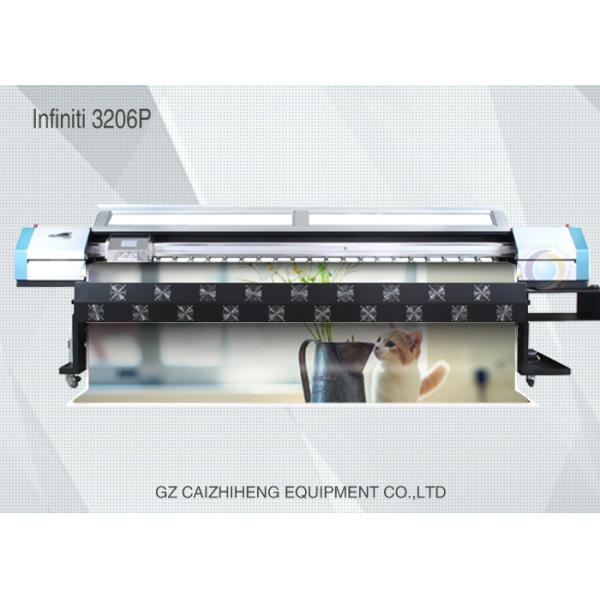

Product Display

Inkjet Digital Solvent Printer 3.2m Seiko 510 / 35PL Printhead Infiniti FY-3206P
