Japan Original Konica Minolta 512 Printhead Water Resisting Km512 42PL​

Specificatons

Printhead Advantage

1. Compatible With Solvent, UV, Oil ..

Due To Its Specially Designed Internal Structure, The Km512 Series Boasts A Wide Range Of Ink Compatibility, Including Aggressive Solvent Inks Typically Used For Super-Wide Format Printers. Inks Which Have High Viscosity At Room Temperature, Such As Uv Ink, Can Be Heated Up To 55 Degrees Celsius With The H Type's Internal Heater

.

2. Enabling Compact Design of Head Mount System

This Series Is Specially Designed To Have A “Wing” Structure So That Users Can Precisely Align The Print Heads Without Difficulty. This Feature Allows Easy Combination Of Page-Width Print head Units For The Purpose Of Single-Pass High-Speed Printing. The Same External Design Allows Interchangeability Of Different Type Heads On The Same Mount System.

Features

• This is the Konica Minolta KM512 MN printhead, it is a robust, shear mode, piezo on-demand print head that is usable in both binary;
• 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads.
• The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi.
• It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX.
• This is Konica original print head and it includes the Head ID and the necessary waveform information.

Used For

• Agfa: :Anapurna M, :Anapurna M4f, :Anapurna Mv, :Anapurna Mw

• Anhui LiYu: Anhui Liyu Apollo PTP-KL, Maxima PZ-KM, Maxima PZ3204-KM, Maxima PZ3206-KM, Maxima PZ3208-KM

• DGI: SaturnJet ST-1806 / OrionJet OR-1806

• JHF Vista: Vista3306 / H8 3304FN / H8 3306FNS

• HP DesignJet: Design-Jet 9000s, DesignJet 10000s

• MYJET: Myjet LB3208KM42 / LE3208KM42 / WB3208KM42 / WC3208KM14

• Seiko Color Painter: Seiko ColorPainter 64S / ColorPainter 100S

• Other Brand: Allwin C8, Flora HJ 3200Turbo, Rodin K4320-A / K4320-B / K6164-B / K8320-B / k6320-A, Sun Neo Da Vinci, Skynet PC-series / HS-series, DYSS Apollo PTP3204-KM, Taimes T5 / T7 , Dilli Neo Titan UVT-1606S / Neo Titan UVT-1606W, OCE CS 6060 / CS 6100

Applications

Outdoor Signage

Outdoor Signage Is One Of The Most Promising Markets For Inkjet Print Head Printing.
Thanks To Their Ability to Print on Various Substrates with High Productivity, Large Format Inkjet Printers Have Been Continuously Replacing Analogue Screen Processes

Indoor Graphics

Large-Format Inkjet Printers Are Also Widely Utilized For Reproduction Of High Quality Indoor Graphics Used In Restaurants And Shopping Malls.
Super-Fine Ink Droplets Enable Reproduction Of Photo-Grade Images On A Variety Of Substrates.

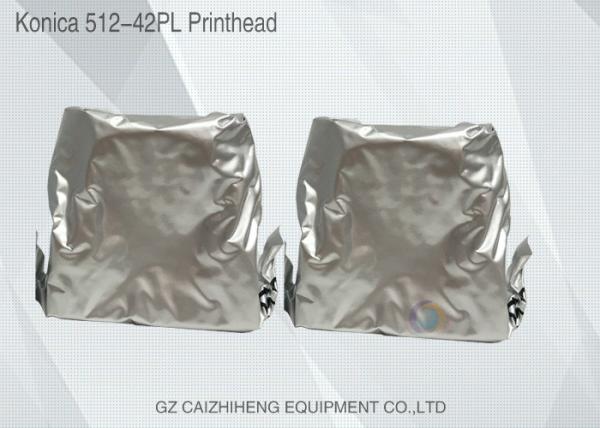

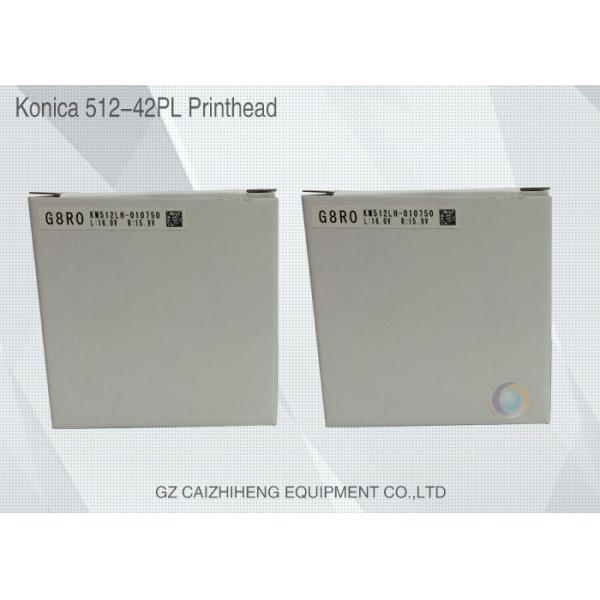

Printhead Photos
