Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision
Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision
Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision
Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision
Specifications
Brand Name :
Seiko
Model Number :
SPT 1020/35pl printhead
Certification :
CE
Place of Origin :
Japan
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram,Cash
Supply Ability :
200 pcs per month
Delivery Time :
Within 5 work days
Packaging Details :
WaterProof
Place Of Original :
Japan
Resolution :
1440Dpi
Ink Type :
Solvent Ink,UV Ink,Eco Solvent Ink
Model Name :
SPT-1020/35PL Printhead
Package :
1 PCS
Used For :
Infiniti/Phaeton/Challenger Brand Printer
Description

Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision​

Printhead Details

Nozzle Uumber: 1020 1020
Nozzle Structure Shared Wall
Print Width 71.9mm
Physical Accuracy 360dpi
Highest Precision

720dpi

Droplet size 34pL (Picoliter)
Ignition Frequency 8.29khz
Level -50mm ~ -30mm
Suitable ink Solvent / UV / Oily
Inkjet speed 4m/s

Famous ,Original Seiko Brand for

the Infinity /Challenger /Phaeton /Crystaljet /Icontek solvent printer with Seiko head;

Seiko SPT1020-35PL heads,we have all types of Seiko,Spectra,Xaar,Epson heads too.In stock!!!!

The Seiko SPT1020-35PL printheads use to the following printers;

1. Icontek TW-3306FD, Icontek TW-3308FD, Icontek TW-1800F3, Icontek TW-2500F3,

Icontek TW-3306FZ, Icontek TW-3308FZ,

2. Icontek M5, Icontek M7, SID XC II, Crstaljet CJ-FB2506UV,

Crstaljet S6306SPT1020_35PL, Crstaljet F6308SPT1020_35PL,

3. Infiniti FY-3266K, Infiniti FY-3266H, Infiniti FY-3266J, Infiniti FY-3266R,

4. Phoaeton UD-3266E, Phoaeton UD-3266G.

Product Description

The SPT1020 print head offers high-resolution and high-speed with 1020 nozzles and 35pl. It features a fast firing frequency and high precision combined with a long useable life. This original print head is used on grand format digital printers.

Technical Specifications:
- Active nozzles: 1020
- Nozzle density: 185 npi
- Print swathe width: 71.9 mm
- Native resolution: 360 dpi
- Max. Resolution: 720 dpi
- Firing frequency: 6.46 or 8.29 Khz
- Drop Size: 35 Pl

Well know in

SPT-1020 printhead - IRH2536Q-2010 used for printers FY-Union Challenger FY-3208GS / Challenger FY-5008GS, Infiniti FY-3266J, Phaeton, Crystaljet, Icontek M5 / M7 / TW-5308FZ / TW-3306FD / TW-3308FD / TW-3306FZ / TW-3308FZ / TW3306HB / TW-3308HB / TW-3306FB / TW-3308FB

Produced By the Japanese Seiko electronics group,Seiko is well-known in the production of precision clocks throughout the world,now in the production of piezoelectric nozzle have been very strong foundation and stability.

a. The stainless steel design,with super-resistant life and each nozzle have 510 b. Head voltage change by temperature.
c. Its data port can adapt different printing software
d. The ink droplet is 35PL and 12PL,the highest standards of accuracy are 720DPI and1440DPI.
e. The printing wide is 75mm,which is four times than normal head with high speed output.
f. It applies to industry and business scope.
g. The entire production line is tested by Japan's Seiko Electronics Group,the ink is put into market after Seiko Group certification
h. Low cost and popular.

Features

1. Japan Seiko Instruments Print Technology SPT-1020 / 35PL Seiko Printheads
Widely Used In Advertising Printing, UV printing, Bar Code Label Printing And Other Industries.


2. Ink compatible good:

You can use UV ink, oil-based ink, solvent ink


3. the range of substrates:

You can print on a variety of substrates such as paper, PRT, PEC, PE, PP, stickers, metal foil, etc.

4. A wide range of applications
Can be horizontal, vertical direction of printing barcodes, can be used for variable information, text, numbers, symbols, and can print two-dimensional code, etc.

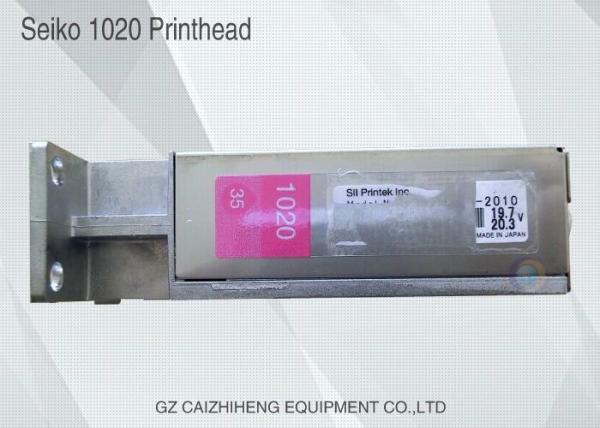

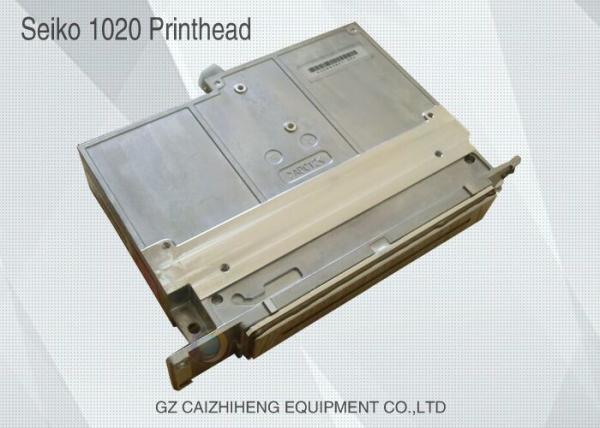

Printhead Photos

Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision

Wide Format Solvent Printer Seiko SPT 1020 Printhead 35PL High Precision
