Outdoor Printer Black Ultrasonic Printhead Cleaning Machine For Epson DX5 Printhead​

Basic Specifications

Suitable Printer Head :

For Epson dx4/dx5/dx6/dx7/dx8,R-800,

Xaar 126/128/382

Polaris 15pl/35pl

Konica 512-14/42pl, 1024-14/42pl

SPT 510-35/50pl,1020,508GS Printhead

Suitable Printer

Instructions

1 pipe, 2, 3 and 4 pipe as the nozzle tube, when used according to the nozzle

tube to 5 pumping liquid or used with cycle

Second, the working state

1. The cleaning machine for considering some shower heads can only one-way circulation liquid, so only one-way cleaning cycles. Cleaning fluid pass through four nozzle pipe nozzle into the steel tank, andthen extract liquid from steel tank 5 tubes.

2. As far as the two nozzle tube is only, need not press the "run 2" key.

3. As needed in the process of ultrasonic cleaning function, press "ultrasonic" button to open the ultrasound; Open when the ultrasonic wave to slot in at least half liquid. Continuous ultrasonic time had better not more than half an hour.

4. When cleaning, such as the slot liquid level is low, can be appropriately raised 5 tube to control the slot liquid level height.

5. The four buttons on the front panel, are to open when the first time, according to press to close again.

Three, operation steps

1. To prepare a bottle of clean cleaning fluid and a liquid bottle. (note: the panel has two pipe interface, a clean cleaning fluid, an output dirtyliquid in waste liquid bottle).

2. Sprinklers to choose the appropriate cleaning frame, then good nozzle and related pipe external cleaning fluid and waste liquid bottle and turned on after connecting mains.

3. According to the requirements of the sprinkler pipe number, press the button "run 1" If need four nozzle tubes, and pressing the "1" and "run 2" button.

4. After basic clean dirty liquid (4), then take liquid bottle, both just pick up a clean cleaning fluid cleaning cycles.

5. Ultrasonic, which can be opened, when appropriate attention opens to ensure

6. If the shower wash well, remove the nozzle, turn off the power supply.

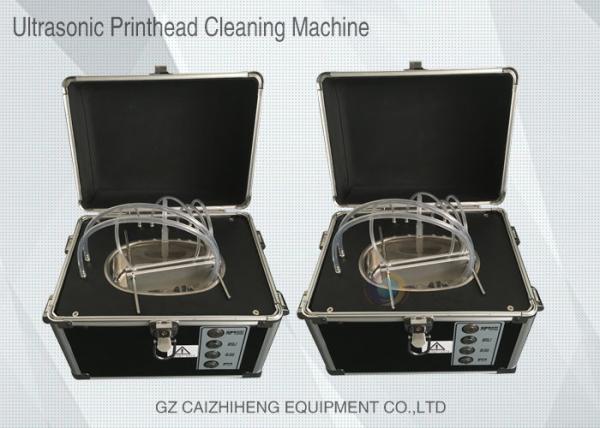

Product Display
