Grain Bucket Elevator Inclined Belt Conveyor
Grain Bucket Elevator Inclined Belt Conveyor
Grain Bucket Elevator Inclined Belt Conveyor
Grain Bucket Elevator Inclined Belt Conveyor
Grain Bucket Elevator Inclined Belt Conveyor
Grain Bucket Elevator Inclined Belt Conveyor
Specifications
Brand Name :
APEX BIOMASS
Model Number :
TDTG
Place of Origin :
JIangsu China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 pcs per month
Delivery Time :
about 20-25working days
Packaging Details :
Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Types :
TDTG Bucket Elevator
Name :
TDTG Large Lifting Bucket Elevator Self Clearning
Type :
self cleaning rubber bucket elevator
Lifting raw material :
grain stuff ,food etc
Capacity :
30t/h as demands
Height :
as demands
Lifting method :
rubber or chain conveying .
Description

TDTG Large Lifting Bucket Elevator Self Clearning

Specifications

1. Feed bucket elevator with Rectangular DOUBLE CHANNEL closed case.
2. Flanged structure and bolt connection.
3. Large lifting capacity.

TDTG series bucket elevators are used to lift vertically various of granular feedstock in grain and oil, food, feedstuff industry. They are the new generation elevators designed on the basis of overseas advanced techniques.

Brife Introduction

The bucket elevator is suitable for lifting from low to high. After the supplied materials are put into the hopper through the vibrating table, the machine automatically runs continuously and transports upward. The conveying speed can be adjusted according to the conveying capacity, and the lifting height can be selected on demand. The hopper is self-designed and manufactured. PP non-toxic hopper makes this type of bucket elevator more widely used. All sizes are designed and manufactured according to actual needs

Working principle

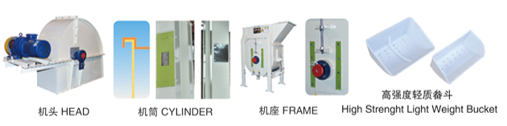

The hopper scoops up the materials from the storage below, and with the conveyor belt or chain lifting to the top, it turns down after bypassing the top wheel, and the bucket elevator dumps the materials into the receiving tank. The drive belt of bucket elevator with belt drive generally adopts rubber belt, which is installed on the lower or upper drive drum and the upper and lower change direction drum

Main technical parameter :

Main technical parameters
Machine type TDTG TDTG TDTG TDTG TDTG TDTG TDTG TDTG TDTG
26x15 40X19 40X23 61X29 70X33 80X47 80X51 100X47X2 110X51X2
Conveying capacity(T/H) 8~15 20~35 20~35 35~50 60~100 120~200 150~250 350~550 400~650
Bucket Speed(m/s) 1~2 1.6~2.5 1.6~2.5 2.0~3.2 2.0~3.2 2.0~3.2 2.0~3.2 2.5~4 2.5~4
Capacity(L) 0.62 1.26 1.31 1.59 3.9 8.5 9.46 8.5X2 9.46X2
Distance(MM) 150~200 200 200 200 250 250 250 250 250
Width(MM) 150 190 235 285 337 475 519 475 519
Bend width(MM) 175 220 250 350 380 500 550 1000 1200
Head drum diameter(MM) 260 400 400 610 700 800 800 1000 1140

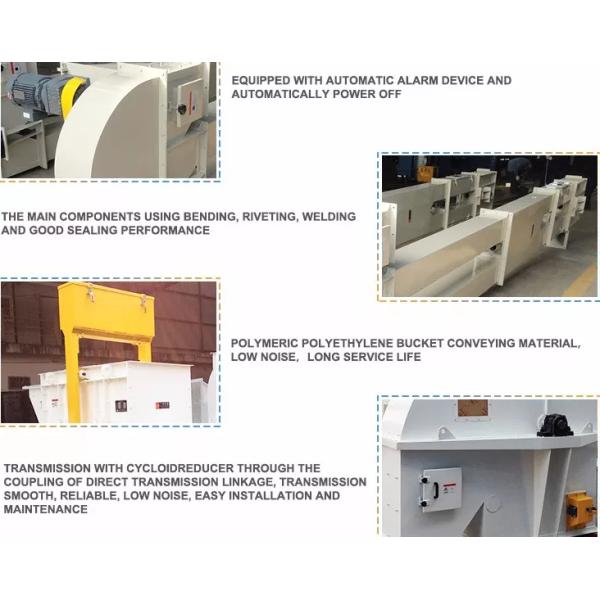

The advantage of bucket elevator :
Bucket elevator is a conveying equipment for vertically lifting and transporting materials. It has the advantages of simple structure, low maintenance cost, high conveying efficiency, high lifting height, stable operation, wide application range and so on

(1) The driving power is small. The inflow feeding, induction unloading and large capacity hopper are densely arranged. There is almost no return and excavation during material lifting, so the invalid power is small.

(2) The lifting range is wide. This kind of hoist has few requirements on the types and characteristics of materials. It can not only lift general powdery and small granular materials, but also lift materials with greater grindability, with good sealing and less environmental pollution.

(3) Good operation reliability, advanced design principles and processing methods ensure the reliability of the whole machine, and the fault free time is more than 20000 hours. The lifting height is high The hoist runs smoothly, so it can reach a higher lifting height.

(4) The service life is long. The feeding of the hoist adopts the inflow type, and there is no need for bucket excavation. There is little extrusion and collision between materials. The machine is designed to ensure that materials are less scattered during feeding and unloading, reducing mechanical wear.
