1.2mm To 6mm Stainless Steel Pellet Machine HRC62 Ring Die Flat 420 508
1.2mm To 6mm Stainless Steel Pellet Machine HRC62 Ring Die Flat 420 508
1.2mm To 6mm Stainless Steel Pellet Machine HRC62 Ring Die Flat 420 508
1.2mm To 6mm Stainless Steel Pellet Machine HRC62 Ring Die Flat 420 508
Specifications
Brand Name :
APEX BIOMASS
Model Number :
420 508 560 850 CPM customized
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable according to different material
Payment Terms :
T/T
Supply Ability :
100-150 pcs per month
Delivery Time :
about 20-25working days
Packaging Details :
Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Name :
Pellet Machine Ring Die Customized Flat Die 420 508 CPM Ring Die
Material :
X46Cr13 or 4Cr13/Alloy steel(20CrMnTi)
Usage :
Pellet squeezing
Type :
Ring die ,flat die
Hole size :
Ø6-Ø12mm or Ø1.2-6mm
Weight :
according to different model such as 420 is about 130kg
Raw material :
Customized for exported
Processing :
gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment
Description

Pellet Machine Ring Die Customized Flat Die 420 508 CPM Ring Die

What is ring die? In fact, the ring die is the key part of the pellet machine and the main vulnerable part. According to statistics, ring die loss cost accounts for more than 25% of the maintenance cost of the whole production workshop, and has great influence on the quality of extruded pellet .

ACCEPT RING DIE FLAT CUSTOMIZED .

Why choosing us :

1. Raw material for ring die(come from No.1 brand die forging steel factory)

2. Enough chemical ingredients which will influence the durability of ring die directly .

3. Good hole opening rate .

The Ring Die raw material :

Alloy steel: 20CrMnTi. HRC:58-62.

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13. HRC: 56-60.

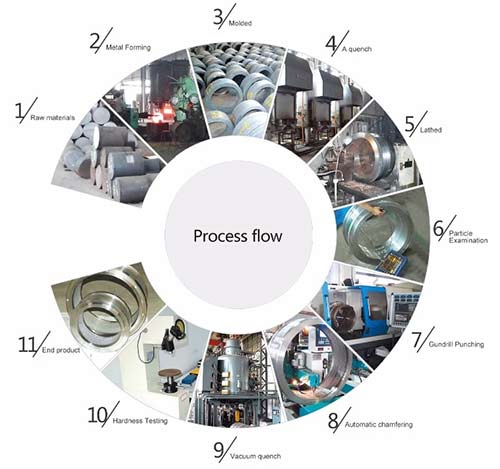

The processing of ring die :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine...

Compression Ratio of Ring Die
The ring die compression ratio refers to the ratio of the effective length of the ring die hole to the minimum diameter of the ring die hole. It is an index reflecting the extrusion strength of pellet feed. The bigger the compression ratio is, the stronger the pellet feed is. But not mean the higher ratio is ,the better it is .Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience o, we provide some general data of ring die's compression ratio for your reference:

Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.

6mm stainless steel die

Item Hole Diameter(mm) Compression Ratio
Ring die for animal feed pellet machine
Poultry&livestock feed 2.5 - 4 1:4-1:11
Fish feed 2.0 - 2.5 1:12-1:14
Shrimp feed 0.4 - 1.8 1:18-1:25
Ring die for biomass pellet machine 6.0 - 8.0 1:4.5-1:8
