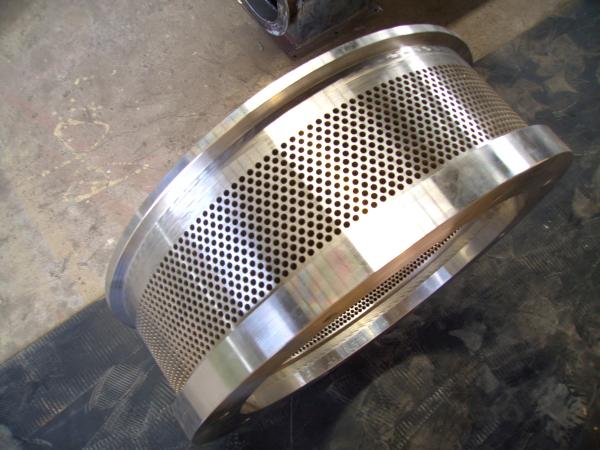

Pellet Machine Die Manufacture Pellet Mill Die Size CPM7392

Pellet mill die is the core part of pellet mills which plays very pivotal role in pelleting process,so it is most important to choose the appropriate ring die and brand manufacturer for pellet mills ,a good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).

Why us ?

1. Quality Assured: Adopting of high-quality exported forging parts to ensure fine quality of products.
2. Advanced Automatic Pellet mill Die Processing Technology: Imported gun driller for drilling; combining the vacuum furnance and continuous quench process for heating; highly polished.
3. Good Mechanical Properties: Good tensile strength, good abrasion resistance, good corrosion resistance, good impact resistance, good heat resistance, good fatigue resistance.
4. Long Service Life: The service life of our ring die for making wood pellets can be up to 2000 tons; and for making feed pellets can be up to 10000 tons.

The Pellet mill die raw material :

Alloy steel: 20CrMnTi.

Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.

The difference between different raw materials :

• 1. Alloy dies are the choice for many feed processors because of their good abrasion and breakage resistance
• 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
• 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance

Generally CPM pellet Ring Die Specification:

CPM pellet mill die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..

Customized pellet mill die accept :

Yulong Pellet machine ring die :XGJ850/560

For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D
