25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine
25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine
25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine
25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine
Specifications
Brand Name :
APEX BIOMASS
Model Number :
MZHL
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable according to different capacity demands
Payment Terms :
L/C, T/T
Supply Ability :
/
Delivery Time :
15-20 working days after deposit
Packaging Details :
Plywood cases or iron case is be used . the complete machine is packed by plastic ,all siutable for sea transportation
Items :
Automatic packing machine
Name :
25kg 50Kg Automatic Wood Pellet Packing Machine
Application: :
Food, Beverage, Chemical, feeding
Packing matrial :
Plastic, Paper, Wood
Arrangement :
20-50kg adjustable
Type :
Automatic Sealing
Training :
free training and guided installation
operating model :
automatic,semi matic ,manual .
Description

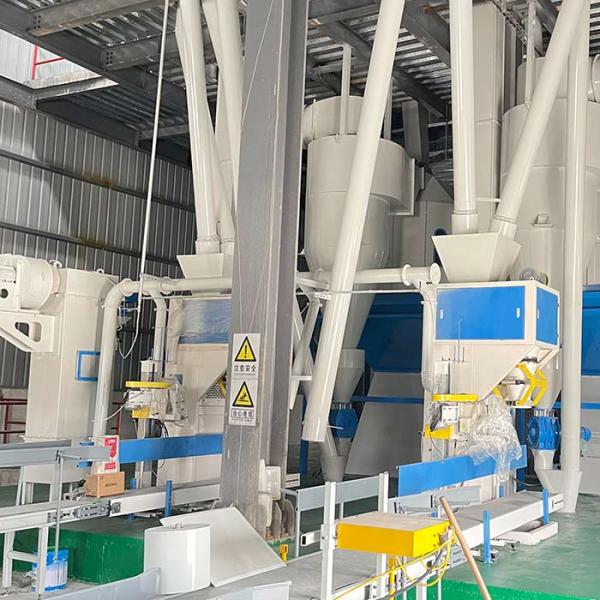

25kg 50Kg Automatic Wood Pellet Packing Machine


This DCS-50 packing machine is suitable for packing granular feeds, pellet feeds,concentrated feed and half powder have granular feeds.

Model DCS-50

Standard configuration

 Main scale body (304 stainless steel in contact with materials), control system, bag- sewing machine, bag-sewing machine column, three-meter conveyor
Feed way Double speed screw feeding
Clip way Double cylinder belt clip bag
Weighing range(kg) 20-50
Weighing accuracy ±0.2%
Weighing speed(Bag/h) 160-260
Scale height 2050mm
Power and air consumption 5.0KW 0.4-0.6Mpa Compressed air 1M³/H

25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine

Main Characteristics:

1. High packing speed and accuracy.

2. High Reliability:The main components of the control system are SIEMENS and SCHNEIDER;The main components of the pneumatic system are AIRTAC and FESTO.

3. Reasonable mechanical structure:Obtained a number of national patents, with good system maintenance-free, strong material adaptability; The part in contact with the material is 304 stainless steel.

4. Stable product quality assurance:With ISO9001 quality assurance system, It adopts CAD design and CAM manufacturing technology, and then ensure the quality of products with the help of CAT detection means.

5. Packing materials:Powder material with poor fluidity, Such as starch, flour, silicon powder, alumina, etc.

Packing bag: The outer layer is polyethylene woven bag, the inner layer is plastic film bag.

25kg 50Kg Automatic Wood Pellet Mill 260bag/H Wood Pellet Packing Machine
