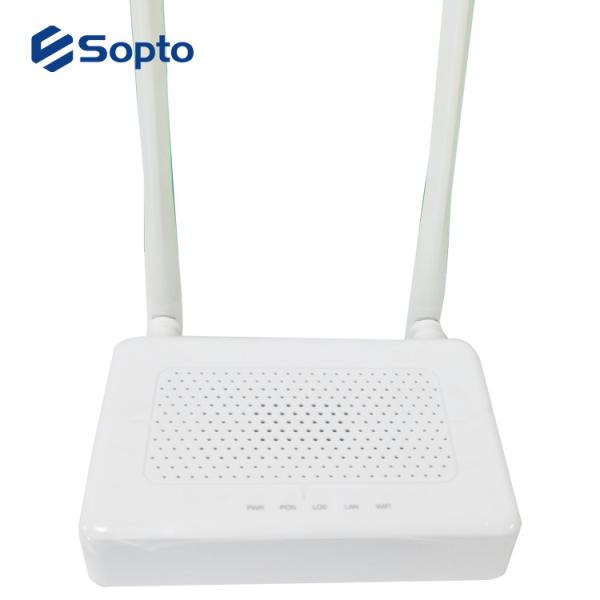

FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment
Specifications
Brand Name :
Sopto
Model Number :
SPU-GE120W-HR
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen China
MOQ :
50pcs
Payment Terms :
L/C, T/T,Paypal, D/P
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
1Pair in standard carton, mass order with carton box package can do OEM according to customer's request.
Product name :
Data Type+WIFI Dual-Mode ONU
Typical Solution :
FTTH, FTTO
Wifi Frequency :
2.412 ~ 2.472 GHz
Power Interface :
12V DC Power supply
MOQ :
50pcs
Brand :
Sopto,OEM
Description

FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment

Description of G/EPON ONU SPU-GE120W-HR

SPU-GE120W-HR dual-mode ONT is one of the EPON/GPON optical network unit design to meet the requirement of the broadband access network.It supports GPON and EPON two modes adaptive, can quickly and effectively distinguish between GPON and EPON system, so normal operation under the current system. It apply in FTTH/FTTO to provide the data service based on the EPON/GPON network.

SPU-GE120W-HR have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It’s fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.

SPU-GE120W-HR can integration wireless function with meet 802.11 n/b/g technical standards, It has built-in high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Features of G/EPON ONU SPU-GE120W-HR

Adaptive GPON mode:

● In compliant with ITU - T G. 984 Standard

● Support ONU auto-discovery/Link detection/remote upgrade of software

● Wi-Fi series meet 802.11 n/b/g technical standards

● Support VLAN transparent, tag configuration

● Support multicast function

● Support DHCP/Static/PPPOE internet mode

● Support port-binding

● Support OMCI+TR069 remote management

● Support data encryption and decryption function

● Support Dynamic Bandwidth Allocation (DBA)

● Support MAC filter and URL access control

● Support power-off alarm function ,easy for link problem detection

● Specialized design for system breakdown prevention to maintain stable system

● EMS network management based on SNMP ,convenient for maintenance

Adaptive EPON mode:

● In compliant with IEEE802.3ah Standard

● Support ONU auto-discovery/Link detection/remote upgrade of software

● Wi-Fi series meet 802.11 n/b/g technical standards

● Support VLAN transparent, tag configuration

● Support multicast function

● Support DHCP/Static/PPPOE internet mode

● Support port-binding

● Support OAM+TR069 remote management

● Support data encryption and decryption function

● Support Dynamic Bandwidth Allocation (DBA)

● Support MAC filter and URL access control

● Support power-off alarm function ,easy for link problem detection

● Specialized design for system breakdown prevention to maintain stable system

● EMS network management based on SNMP ,convenient for maintenance

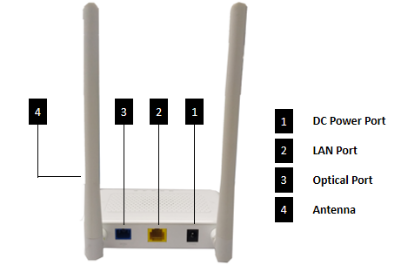

Product interface and LED definitions

FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment

FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment

Indicator Description
1 WIFI WIFI

Blinking:Data is being transmitted

On:Wi-Fi function Open

Off:Wi-Fi function Close
2 LAN LAN Port status

On: Ethernet connection is normal;

Blinking: Data is being transmitted through the Ethernet port;

Off: Ethernet connection is not set up;
3 LOS PON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal
4 PON ONT Register

On: Success to register to OLT

Blinking: In process of registering to OLT;

Off: In process of registering to OLT;
5 PWR Power status

On: The ONU is power on;

Off: The ONU is Power off;
Specification
Item Parameter

Interface

 PON Interface

GPON/EPON mode adaptive

1*GPON port, FSAN G.984.2 standard, support for backward compatibility with EPON

SC/PC single mode fiber
Ethernet Interface

1*10/100/1000M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
Power Interface 12V DC Power supply
Performance Parameters

PON

Optical

Parameter

 Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0.5～5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm
Data Transmission
Parameter		 PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Network Management
Management Mode		 When adaptive to GPON mode, support standard compliant OMCI interface as defined by ITU-T G.984.4, TR069 remote management and WEB management
When adaptive to EPON mode, Support IEEE802.3 QAM, ONU can be remotely managed by OLT, TR069 remote management and WEB management
Management
Function		 Status monitor, Configuration management, Alarm management, Log management
Physical Features Shell White plastic casing
Power <4W, 12V/0.5A power supply adapter
Physical
Specifications

Item Dimension:125mm(L) x80mm(W) x 25mm (H)

Item weight:0.2kg
Environmental
Specifications		 Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

WIFI Specification

Item Parameter
Performance parameters Operating Mode Router or bridge
Technical standard IEEE802.11b/g/n
Frequency 2.412 ~ 2.472 GHz
Antenna gain 5dBi
Support rate

802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

802.11n: max rate 300Mbps
Channel 2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation mode

11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11g:OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps)

Q64QAM(48/54Mbps)

11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
Receive sensitivity

11Mbps:≤-90dBm

54 Mbps:≤-76dBm

HT20 MCS7:≤-73dBm

HT40 MCS7:≤-70dBm
Transmit power 802.11n: 17dBm
Encryption mode AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK
Application

Solution:FTTH

Business:INTERNET, WIFI

FTTH FTTO 1 UTP Port 2.4GHz WIFI EPON Equipment

Ordering Information

Part Number Product Description
SPU-GE120W-HR ONU GPON/EPON adaptive optical interface 1 UTP Port 10/100/1000M with 2.4GHz WIFI with External 220V AC to 12V DC power supply adapter Commercial temperature Plastic housing Realtek chipset
If you need more customized services, please contact us.
