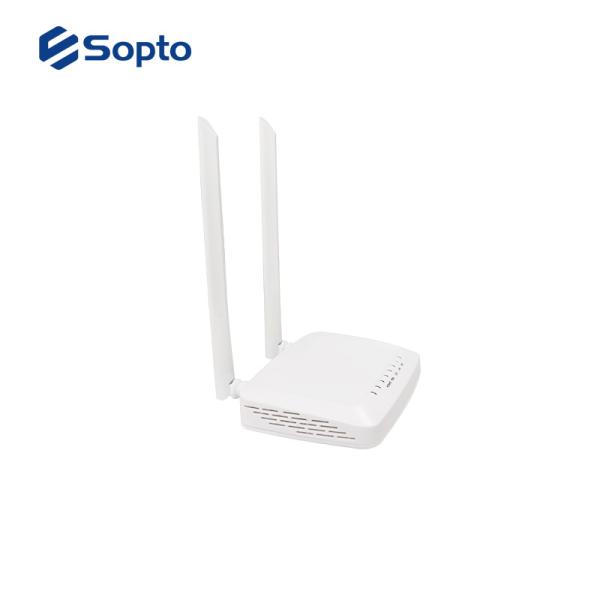

Ethernet Interface 1 CATV Port WIFI ONU EPON Equipment

CATV1*10/100/1000m and 1*10/100m ethernet interface 1 catv port single-fiber catv type wifi onu

Description of SPU-E231AW-HR EPON ONU

SPU-E2310AW-HR is fiber to the home multi service access EPON ONU. It’s based on the mature, stable, high cost performance EPON technology and has gigabit Ethernet switching, WDM and HFC technology. SPU-E2310AW-HR has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the IEEE802.3ah requirements and have good compatibility with third party manufacturers OLT.

EPON technology is a kind of emerging technology which takes advantage of PON technology and Ethernet technology also is a kind of point to multi-point network technology. OLT through the passive optical network to connect multiple ONU with single fiber bidirectional technical can rarely used fiber resources to meet the operators of the multi-user access requirements.

It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.

SPU-E2310AW-HR can integration wireless function with meet 802.11 n/b/g technical standards, It has external high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

Features of SPU-E231AW-HR EPON ONU

● Single-fiber access, provides internet, CATV, WIFI multiple service

● In compliant with IEEE802.3ah Standard

● Support ONU auto-discovery/Link detection/remote upgrade of software

● Wi-Fi series meet 802.11 n/b/g technical standards

● Support VLAN transparent, tag configuration

● Support multicast function

● Support DHCP/Static/PPPOE internet mode

● Support port-binding

● Support OAM+TR069 remote management

● Support data encryption and decryption function

● Support Dynamic Bandwidth Allocation (DBA)

● Support MAC filter and URL access control

● Support remote CATV port management

● Support power-off alarm function ,easy for link problem detection

● Specialized design for system breakdown prevention to maintain stable system

● EMS network management based on SNMP ,convenient for maintenance

Product interface and LED definitions

Ethernet Interface 1 CATV Port WIFI ONU EPON Equipment

Ethernet Interface 1 CATV Port WIFI ONU EPON Equipment

Indicator Description
1 CATV CATV status

On:CATV optical normal

Off:The CATV signals are not received
2 WIFI WIFI

Blinking:Data is being transmitted

On:Wi-Fi function Opens
3 FE FE port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up
4 GE GE port status

On: Ethernet connection is normal

Blinking: Data is being transmitted through the Ethernet port

Off: Ethernet connection is not set up
5 LOS EPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal
6 PON ONU Register

On: Success to register to OLT

Blinking: In process of registering to OLT

Off: Failed to register to OLT;
7 PWR Power status

On: The ONU is power on

Off: The ONU is Power off

Specification

Item Parameter
Interface PON Interface 1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC/PC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
CATV Interface

1 RF output

F-Type Connector
Ethernet Interface 1*10/100/1000M and 1*10/100M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
Power Interface 12V DC Power supply
Performance Parameters

PON Optical

Parameter

 Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0～4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Data Transmission
Parameter		 PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s
Ethernet: 1000Mbps and 100Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
Network Management Management Mode

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support TR069 remote management and WEB management
Management Function Status monitor, Configuration management, Alarm management, Log management
Physical Features Shell White plastic casing
Power

Power supply: DC 12V /0.6A

Power consumption: <5W
Physical
Specifications

Item Dimension:160mm(L)*139.5mm(W)*28.5mm(H)

Item weight:0.35kg
Environmental
Specifications		 Operating temperature: 0 to 50ºC
Storage temperature: -40 to 85ºC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)

CATV Specification

Item Parameter
Wavelength 1550nm
Optical return loss >45dB
Input optical power -18dBm～0dBm
RF frequency 47MHz~1000MHz
RF output lever 78dBuV (@-12~-2dBm@85MHz)
CNR >41dB (@-10dBm@DS22 Channel)
CSO >60dBc (@-10dBm@DS22 Channel)
CTB >60dBc (@-10dBm@DS22 Channel)
RF output return loss >12dB
RF impedance 75Ω
AGC function

Support

WIFI Specification

Item Parameter
Performance parameters Operating mode Router or bridge
Technical standard IEEE802.11b/g/n
Frequency 2.412 ~ 2.472 GHz
Antenna gain 5dBi
Support rate

802.11b: 1, 2, 5.5, 11Mbps

802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

802.11n: max rate 300Mbps
Channel 2.4GHz Channel:1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation mode

11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11g:OFDM:BPSK(6/9Mbps), QPSK(12/18Mbps),16QAM(24/36Mbps)

Q64QAM(48/54Mbps)

11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
Receive sensitivity

11Mbps:≤-90dBm

54 Mbps:≤-76dBm

HT20 MCS7:≤-73dBm

HT40 MCS7:≤-70dBm
Transmit power 802.11n: 17dBm
Encryption mode AES, TKIP, WPA, WPA2, WPA-PSK/WPA2-PSK

Network application

Typical Solution:FTTH, FTTO

Typical Business:INTERNET,CATV, WIFI
