Specifications
Brand Name :
Sopto
Model Number :
SPT-EU3411-SE2AD
Certification :
CE / RoHS / ISO9001
Place of Origin :
China Shenzhen
Payment Terms :
T/T; L/C; Paypal
Delivery Time :
3-5 working days
Packaging Details :
10 pcs/plate
Wavelength :
1310nmTx/1490nmRx
Fiber type :
SM
Data rate :
1.25G/1.25G
Interface :
SC Interface 1000BASE-PX20+
Operating temperature :
Commercial 0 to 70℃
Product name :
EPON ONU SFP Transceiver
Description

1000BASE-PX20+ Fiber Optic Transceiver 1.25GPON ONU SFP Module SC

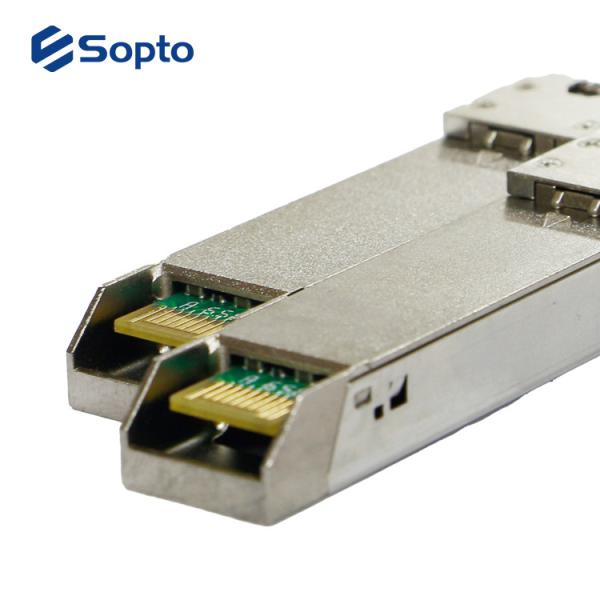

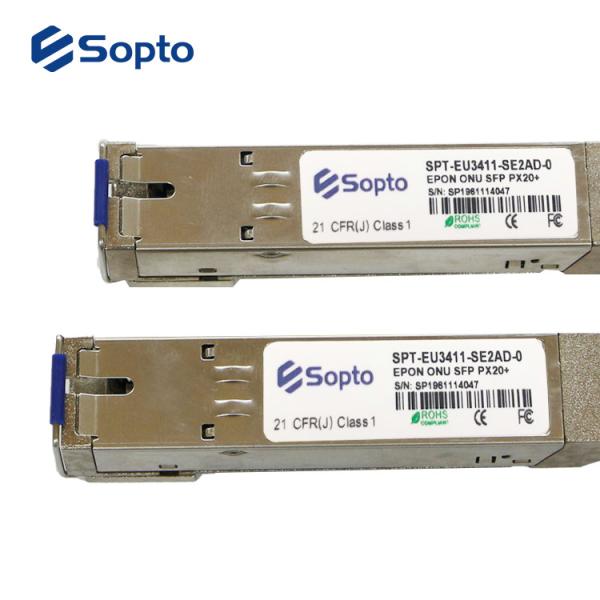

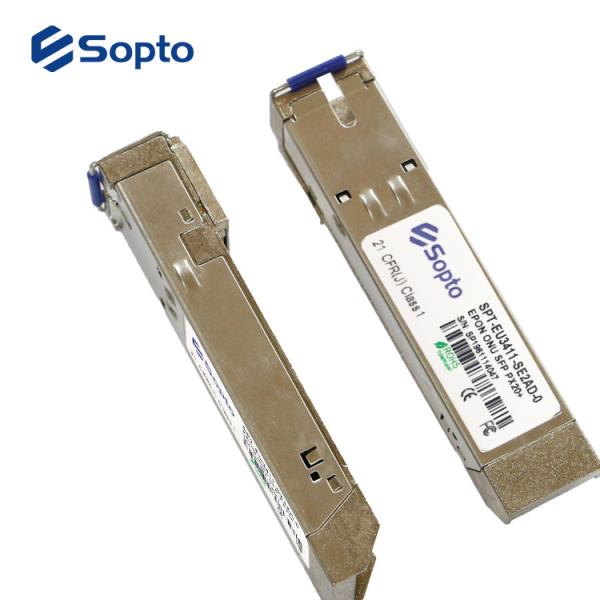

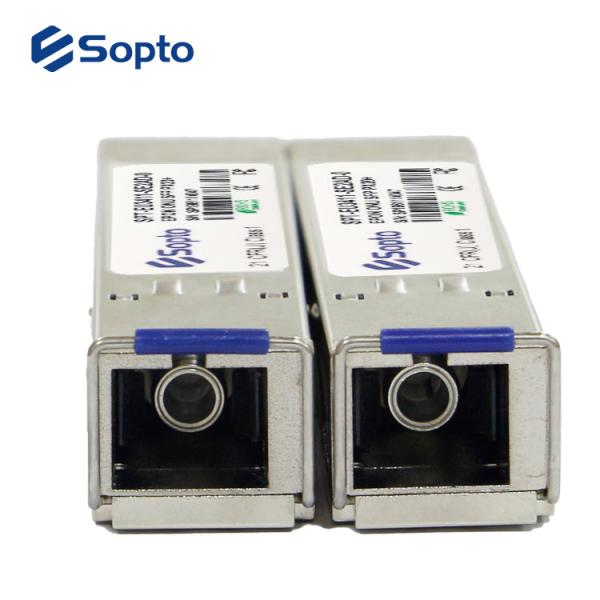

The SOPTO SPT-EU3411-SE2AD transceiver with BiDi SFP package supports data rate of typical 1.25 Gbps for GEPON ONU application up to 20km transmission distance, it’s designed meeting with 802.3ah and China Telecom 1000BASE-PX20+ specifications. SC Rececptacle is for optical interface.

Features

l BiDi SFP Single Mode Transceiver

l SC Receptacle is optional

l Compliant with SFF MSA-2000 And SFF-8472 V10.3

l Single +3.3 Power Supply

l LVPECL Differential Data Inputs And CML Data Outputs,LVTTL Signal Detection Output

l Complies with Telcordia (Bellcore) GR-468-CORE

l 1310 nm Burst Mode Transmitter and 1490 nm Continuous Mode Receiver

l Typical data rate 1.25 Gbps

l Maximal reach 20km

l Comply with 1000Base-PX20+

Applications

l GEPON ONU For P2MP Application

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

1000BASE-PX20+ Fiber Optic Transceiver 1.25GPON ONU SFP Module SC

Application

● EPON For P2MP Application

Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Note

Storage Temperature

 Tst -40 +85 °C
Operating Case Temperature Tc 0 70 °C Standard
-40 +85 Industrial
Input Voltage - GND Vcc V
Power Supply Voltage Vcc-Vee -0.5 +3.6 V
Recommended Operating Conditions
Parameter Symbol Min. Typical Max. Unit Note
Power Supply Voltage Vcc 3.135 3.3 3.465 V -
Operating Case Temperature Tc 0 - 70 °C Standard
-40 - 85 Industrial
Data Rate DR - 1.25 - Gbps -
Total Supply Current - - 200 300 mA -
Damage Threshold For Receiver - - - 4 dBm -

Ordering Information


SPT-EU3411-SE2AD-1

 EPON ONU SFP Transceiver 1310nmTx/1490nmRx 1.25G/1.25G SC Interface 1000BASE-PX20+ with DDM Commercial Temperature Burst Logic 1 Tx On , with TxSD
SPT-EU3411-SE2AD-0 EPON ONU SFP Transceiver 1310nmTx/1490nmRx 1.25G/1.25G SC Interface 1000BASE-PX20+ with DDM Commercial Temperature Burst Logic 0 Tx On , with TxSD
