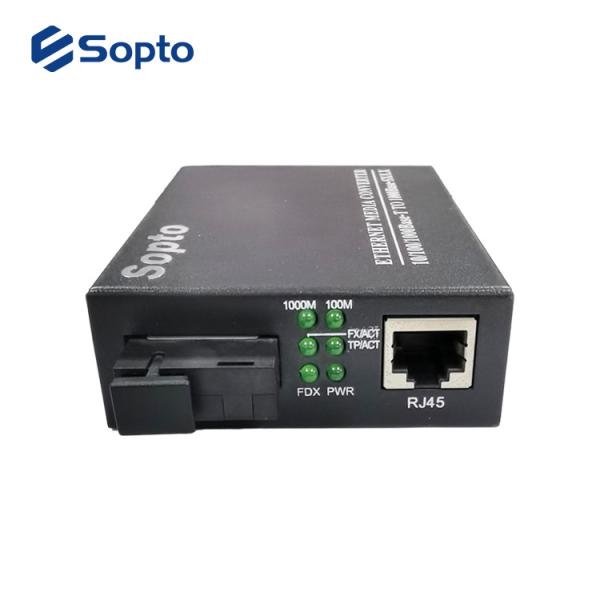

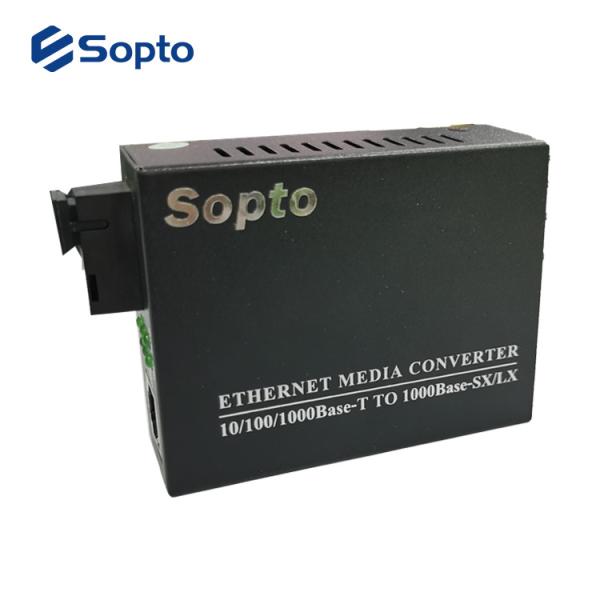

10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter
Specifications
Brand Name :
Sopto
Model Number :
SPM-ET253-N20S
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen China
MOQ :
1pcs
Payment Terms :
L/C, T/T,Paypal, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
1Pair in standard carton, mass order with carton box package can do OEM according to customer's request.
Transmission Distance :
20KM
Data Rate :
10/100/1000M
Operating Temperature :
0 °C to +50 °C/32°F-120°F
Storage Temperature :
Storage Temperature
Service Type :
OEM
Port :
1 Fiber Port and 1 UTP Port
SFP Port :
SFP Port without Transceiver
Wavelength :
1550nm Tx/1310nm Rx
Connector :
1×9 SC Interface
Description

10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter

Feature:

  • Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX
  • Provides DIP switch for LFP function (Disable / Enable) setting
  • 10/100/1000Mbps Ethernet
  • 10/100/1000 BASE-T/TX electrical port
  • 1000 BASE-SX/LX optical port
  • Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
  • Optical port supports 1000Mbps full duplex data
  • Automatic MDI/MDI-X crossover
  • Distances up to 2km for Multi mode;Up to 120km for Single mode
  • Voltage transient protection on all power and signal input. output lines provides unconditional protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • LED indicators for easy network diagnostics

10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter

LED Function
1000M Lit when the electrical link speed is 1000Mbps
100M Lit when the electrical link speed is 100Mbps
Off when the electrical link speed is 10Mbps
FX Link/Act

Lit when the fiber port connection with remote device is good.

Blinks when data is transmitting.
TX Link/Act

Lit when the RJ45 connection with remote device is good.

Blinks when data is transmitting.
FDX

Lit when full-duplex mode is active on RJ45.

Off when half-duplex mode is active on RJ45.
PWR Lit when power is on

Applications

● Access Control Systems

● Building and Environmental Control Systems

● Tamper Switch

● 10/100/1000 Mbps Ethernet Media Converter

● High Speed Computer Links

Technical Specifications

Parameters Specifications
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength

Dual Fiber:
SPM-ET28 series: 850nm 500M

SPM-ET23 series: 1310nm 1KM 20KM 40KM
SPM-ET25 series: 1550nm 60KM 80KM 120KM
Single Fiber:

SPM-ET235 series: TX:1310nm/RX:1550nm 20KM 40KM

SPM-ET253 series: TX:1550nm/RX:1310nm 20KM 40KM

SPM-ET245 series: TX:1490nm/RX:1550nm 60KM 80KM

SPM-ET254 series: TX:1550nm/RX:1490nm 60KM 80KM
Transmission Distance

Multimode: 0.5,1km

Single mode:10km~120km
Port

Optical: Dual Fibers or Single Fiber (SC/ST/FC Optional)

Power: Terminal Block

Electrical: RJ45
Led Indicators

Optical Link/Data Activity

Electrical Link/Data Activity
MDI/MDI-X Auto selection
Mac address table 4K
Memory buffer 256K
Forward / Filter Rate

10M: 14,880/14,880pps

100M: 148,800/148,800pps

1000M: 1,488,000/1,488,000pps
Power Supply External : 5V DC 2A
Input power: 100 V to 240 V AC 50Hz to 60 Hz
or 48V DC
Operating Temperature 0 °C to +50 °C
Storage Temperature -20 °C to +80 °C
Relative Humidity

5% to 90% (non-condensing)

MTBF: >100,000 hours
Dimensions 95mm * 70 mm * 25mm
Net Weight 0.165 kg
Emissions FCC , Class A, RoHS, CE Mark

Connection Diagram

10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter

10/100/1000M 1 Port Fiber Media Converter SC Interface Media Converter

Ordering Informations

SPM-ET253-N20S Media converter 1*10/100/1000Base-Tx to 1*1000Base-FX single fiber SM Tx1550nm/Rx1310nm 20KM SC external power supply 220V AC
