10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM
Specifications
Brand Name :
Sopto
Model Number :
SPM-ET2X-PX
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen China
MOQ :
1pcs
Payment Terms :
L/C, T/T,Paypal, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
5-8 days

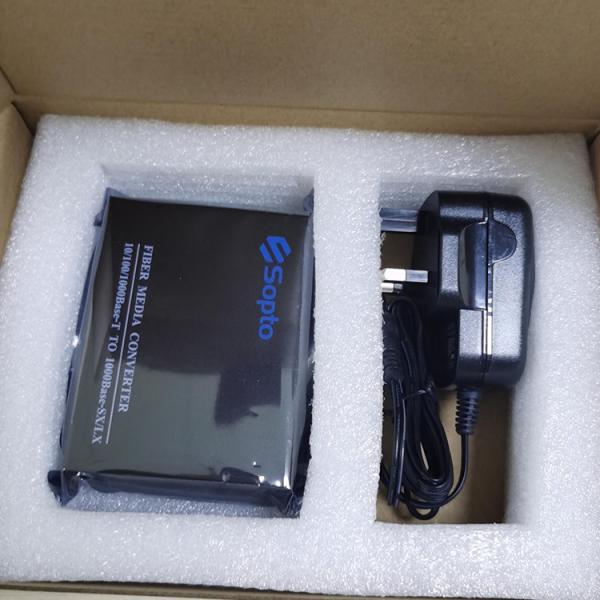

Packaging Details :
1Pair in standard carton, mass order with carton box package can do OEM according to customer's request.
Transmission Distance :
MM: 2km；SM:10km~120km
Optical Fiber Port :
One Rj45, One SFP Socket
Data Rate :
10/100/1000M
Operating Temperature :
0 °C to +50 °C/32°F-120°F
Storage Temperature :
Storage Temperature
Service Type :
OEM
Port :
1 Fiber Port and 1 UTP Port
SFP Port :
SFP Port without Transceiver
Description

10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM

Feature:

l Built-in IP-based Web Interface

l Supporting remote and local management

l Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode

l Store and Forward mechanism

l Manual IP address setting/DHCP client for IP address assignment

l SNMP v1 / v2c monitor / private Enterprise MIB

l Event trap and SNMP trap support

l Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port

l Supports Port Status / Ethernet Statistics on both TP and Fiber interface

l Supports Maximum frame size to 9K bytes

l Loop detection / Broadcast / Multicast / Unicast storm control

l Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN

l 802.1p Tag Priority / IP address priority / IP DSCP option in

l Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies

l TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test

l 16 TCP / UDP Filter groups

l Firmware upgrade via remote Web interface

l LED indicators for easy network diagnosing

l Internal Power supply optional

Applications

● Access Control Systems

● Building and Environmental Control Systems

● Tamper Switch

● 10/100/1000 Mbps Ethernet Media Converter

● High Speed Computer Links

Technical Specifications

Parameters Specifications
Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-TX/FX
Optic Wavelength N/A
Transmission Distance

Multimode: 2km

Single mode:10km~120km
Port One Rj45, One SFP Socket
Led Indicators

Optical Link/Data Activity

Electrical Link/Data Activity
MDI/MDI-X Auto selection
Mac address table 4K
Memory buffer 256K
Data

Data Interface: Ethernet

Data Rate:10/100/1000 Mbps
Power Supply

External : 5V DC 2A
Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Power Consumption : ≤5W
Operating Temperature 0 °C to +50 °C
Storage Temperature -20 °C to +80 °C
Relative Humidity

5% to 90% (non-condensing)

MTBF: >100,000 hours
Dimensions 95mm * 70 mm * 25mm
Net Weight 0.165 kg
Emissions FCC , Class A, RoHS, CE Mark
10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM

Connection Diagram

10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM

10/100/1000Base OEM Fiber Media Converter RJ45 SC Duplex 20KM

Ordering Informations

Part Number Product Description
SPM-ET2X-PX 10/100/1000Base-Tx to 1000Base-FX, SFP to RJ45 fiber media converter , without module
SPM-ET1X-PX 1000Base-Tx to 1000Base-FX, SFP to RJ45 fiber media converter , without module
SPM-ET4X-PX 10/100Base-Tx to 100Base-FX, SFP to RJ45 fiber media converter , without module
