FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface
Specifications
Brand Name :
Sopto
Model Number :
SPT-PC5*1G-80D
Certification :
CE RoHS FCC
Place of Origin :
Shenzhen China
MOQ :
1pcs
Price :
26.25usd/piece
Payment Terms :
L/C, T/T,Paypal, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10pcs standard boxes, mass order with carton box package can do OEM according to customer's request.
Wavelength :
1510nm~1590nm
Fiber type :
Single-mode ,SM
Product name :
Transceiver SFP CWDM
Warranty :
3 Years
Transmission distance :
80km
Application :
FTTH FTTB FTTX Network,Telecommunication
Data rate :
1.2.5G
Power supply :
3.135~3.465V
Operating temperature :
Commercial 0 to 70 Industrial -40 to 85
Brand :
Sopto,OEM
Description

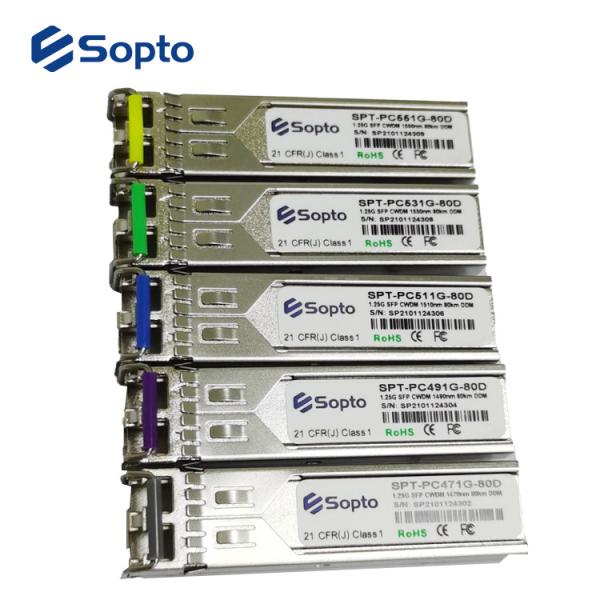

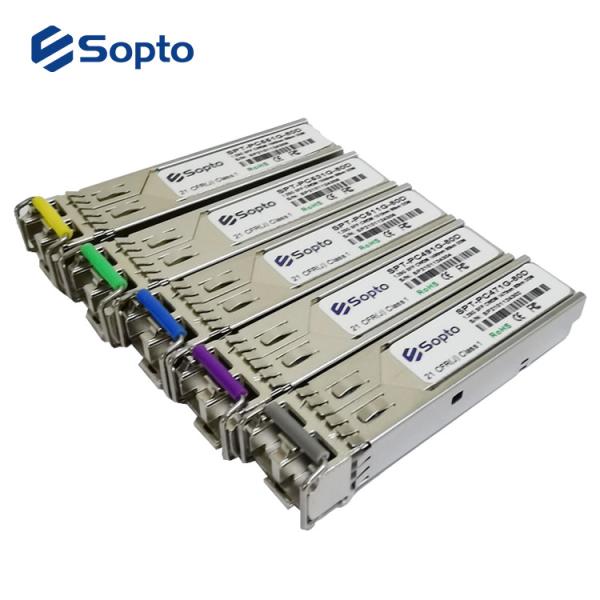

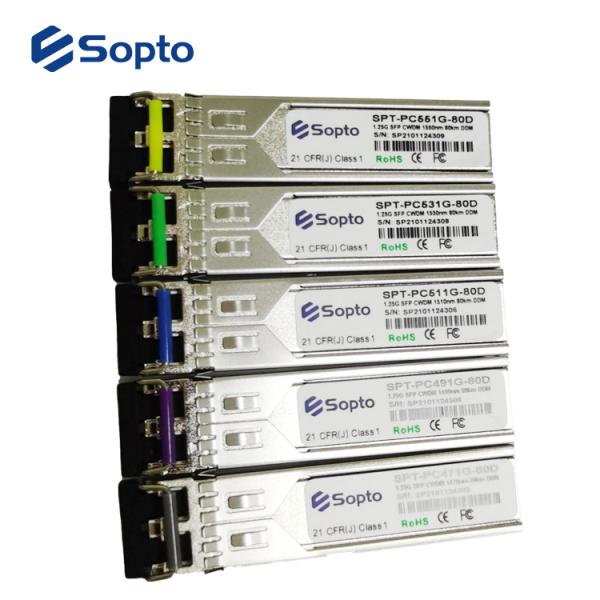

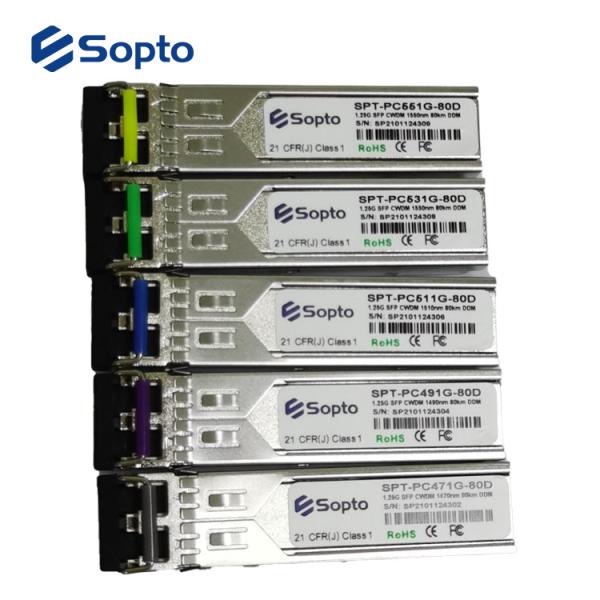

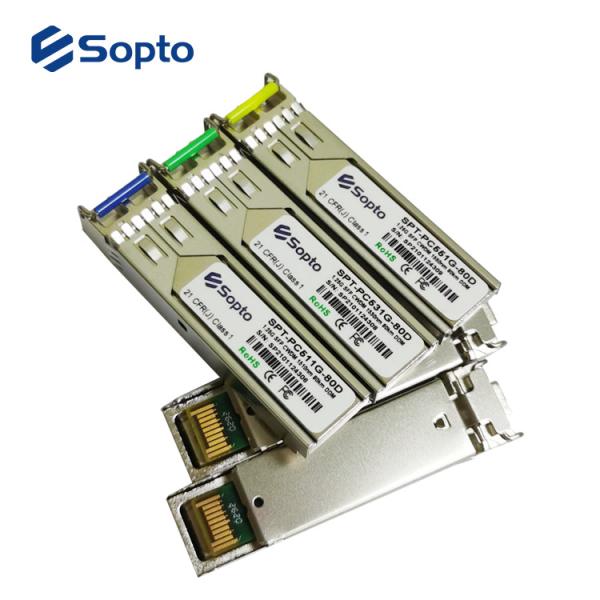

FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface

Transceiver SFP CWDM 1.25G 80km LC Interface with DDM Commercial Temperature Fiber Optical Transceivers

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

  • Data-rate of 1.25Gbps operation
  • 18 CWDM DFB wavelengths laser and APD photo detector for 80km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:

Standard: 0 to +70°C
Industrial: -40°C to 85°C

Applications

l SDH STM-4 and SONET OC-24 system

l 1X Fiber Channel

l Switch to Switch interface

l Switched backplane applications

l Router/Server interface

l Other optical transmission systems

FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface

FTTH SFP Ethernet Optical Transceiver CWDM 1.25G 80km LC Interface

Ordering Informations

Part Number Product Description
SPT-PCXX1G-80 CWDM 1270nm~1610nm, 1.25Gbps, 80km,0ºC ~ +70ºC
SPT-PCXX1G-80D CWDM 1270nm~1610nm, 1.25Gbps, 80km,0ºC ~ +70ºC, With DDM
SPT-PCXX1G-80TD CWDM 1270nm~1610nm, 1.25Gbps, 80km,-40ºC ~ +85ºC, With DDM

Note: If you need more customized services, please contact us.
