Single Mode Fiber Optic Cable Excellent PMD Performance ISO9001 / CE / TLC Approval
Single Mode Fiber Optic Cable Excellent PMD Performance ISO9001 / CE / TLC Approval
Single Mode Fiber Optic Cable Excellent PMD Performance ISO9001 / CE / TLC Approval
Single Mode Fiber Optic Cable Excellent PMD Performance ISO9001 / CE / TLC Approval
Specifications
Delivery Time :
10-15 working days
MOQ :
2KM
Payment Terms :
T/T; L/C; Paypal
Certification :
ISO9001 / CE / TLC
Packaging Details :
Roll or Carton
Model Number :
G.652B G.657A1
Fiber type :
G652D / G657A2 / G657
Length :
Customized
Wavelength :
1260nm ~ 1625nm
Advantage :
Low attenuation and low dispersion
Description

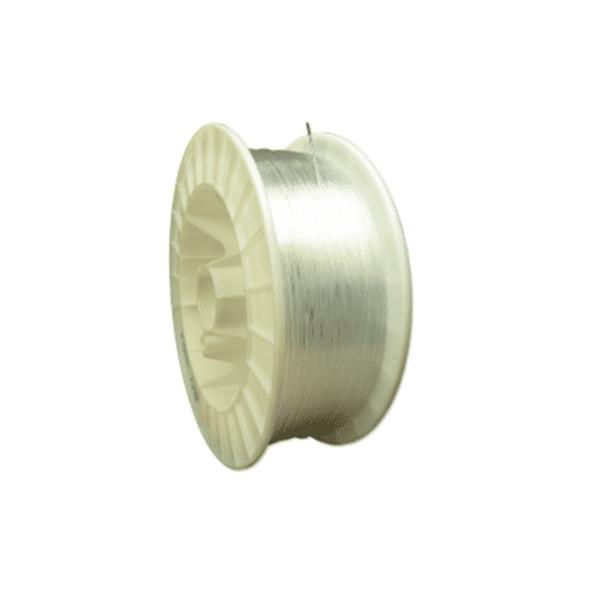

G.652D Low Loss Single-mode Optical Fiber Low Attenuation and Low Dispersion

Optical Fiber is a kind of transmission media which made by glass, the transmission form is optical pulse. The most widely used in optical communications are single mode fiber and multimode fiber.

Features

● Single Mode optic fiber has a small diametral core that allows only one mode of light to propagate. G.652D, G.657.A1, G.657.A2,etc. Belong to Single Mode optic fiber. Multi-mode optic fiber has a large diametral core that allows multiple modes of light to propagate.

● Multi-mode optic fibers are described by their core and cladding diameters. Thus, 62.5/125 µm multi-mode optic fiber has a core size of 62.5 micrometres (µm) and a cladding diameter of 125 µm.

● Multi-mode optic fibers are usually described using a system of classification determined by the ISO 11801 standard — OM1, OM2, OM3 and OM4 — which is based on the modal bandwidth of the multi-mode fiber. The letters "OM" stand for optical multi-mode.

● Superior to corresponding standards of ITU-T

● Low attenuation and low dispersion

● Accurate geometrical parameters that insures tow splicing toss and high splicing efficiency

● Excellent PMD performance, supporting high-speed and tong repeater spacing Transmission system

Application

all types of cables, including ribbon fiber cable, slotted core cable, standard loose lube cable central-tube optical cable, ADSS, OPGW and indoor tight-buffer cable

Ordering Information

Optical Fiber Type Product Description Applicable wavelength
G.652B Matched cladding single-mode optical fiber 1310nm,1550nm,1625nm
G.652D Zero water peak non-dispersion shifted single-mode optical fiber 1260nm~1625nm
G.652D-LL Low loss single-mode optical fiber 1260nm~1625nm
G.657A1 Bending-loss insensitive single-mode optical fiber 1260nm~1625nm
