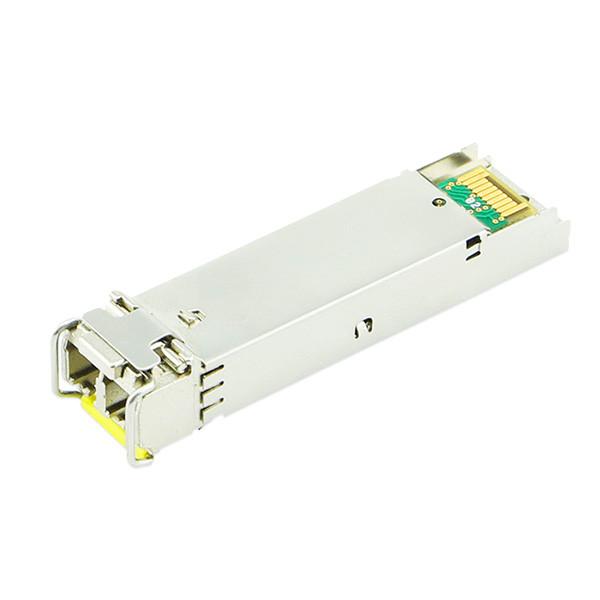

2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance
Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Payment Terms :
T/T; L/C; Paypal
DistaDistancence :
00m on MMF OM3 and 120km over SMF
Power Supply :
Single +3.3V
Wavelength :
850nm / 1310 / 1550nm
Application :
1000Base Ethernet
Fiber type :
SMF/MMF
Operating temperature :
Commercial 0 to 70 Industrial -40 to 85
Description

2.5G SFP Optical Transceiver Modules Duplex LC Interface with DDM Commercial Temperature

SOPTO’s 2.5G SFP is a series of optical transceiver modules designed for use in 2x/1x Fibre Channel and Gigabit Ethernet . They are compliant with the SFP+ MSA. Digital diagnostics functions are available. The optical transceivers are RoHS compliant. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

● Single +3.3V power supply

● Built-in digital diagnostic functions

● Supports data rates up to 2.67Gb/s

● Transmission distance up to 300m on MMF OM3 and 120km over SMF

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

Compliant

● RoHS-6

● SFP+ MSA

● FC-PI 13.0

● IEEE Std 802.3

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHS

2.5G SFP Fiber Optic Transceiver Duplex LC Interface 300m Transmission Distance

Applications

● 2X/1X FC

● 1000Base Ethernet

● SDH/SONET

● Storage Area Network (SAN)

● Other Optical Link

Ordering Information

PN Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM
SPT-P8548-S3D 2.5 300m/OM3 MM -5～-1 -11 Duplex LC 0 to 70℃ D
SFP-P1348-02D 2.5 2km SM -10～13 -19 Duplex LC 0 to 70℃ D
SFP-P1348-10D 2.5 10km SM -5～0 -15 Duplex LC 0 to 70℃ D
SFP-P1348-20D 2.5 20km SM -4～0 -15 Duplex LC 0 to 70℃ D
SPT-P5548-40D 2.5 40km SM 0～3 -17 Duplex LC 0 to 70℃ D
SPT-P5548-80D 2.5 80km SM 0～5 -23 Duplex LC 0 to 70℃ D
SPT-P5548-100D 2.5 100km SM >0 -29 Duplex LC 0 to 70℃ D
SPT-P5548-120D 2.5 120km SM >1 -30 Duplex LC 0 to 70℃ D
