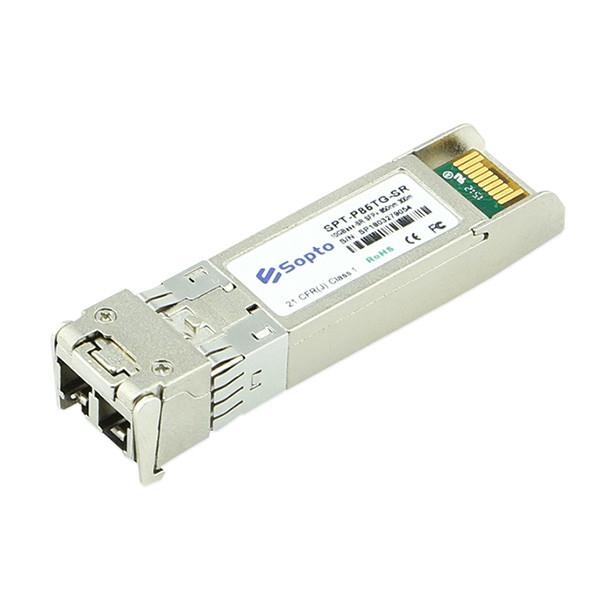

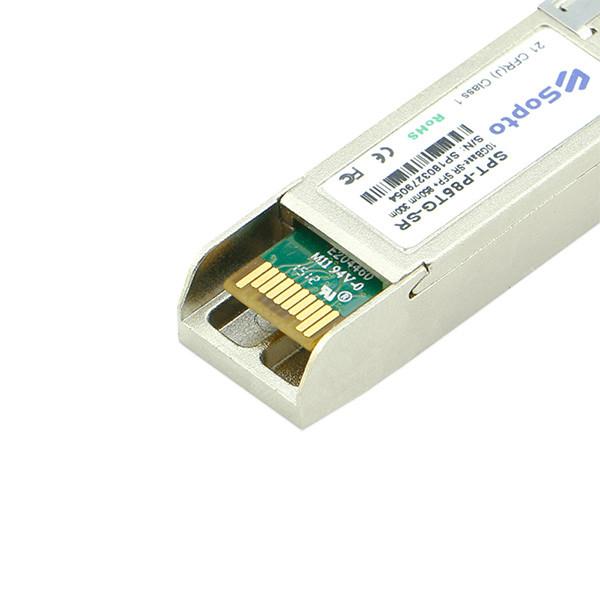

10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR
Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Model Number :
SPT-P31TG-XR / SPT-P55TG-XR
Packaging Details :
10 pcs/plate; 0.024kg/pcs
Payment Terms :
T/T; L/C; Paypal
Wavelength :
850nm,1310/1550nm
Distance :
300m on MMF OM3 and 120km over SMF
Interface :
Duplex LC
Operating temperature :
Commercial 0 to 70 Industrial -40 to 85
Fiber type :
SMF/MMF
Compatible :
Cisco / Extreme / Juniper / HP / H3C / Linksys / Huawei,
Description

10G SFP+ SR / ER / LR / ZR Optical Module with 850nm / 1310nm / 1550nm

Soptos 10G SFP+ transceivers are multi-purpose optical modules for 10Gbit/s data transmission applications at 850nm, 1310nm and 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fibre Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-LRM/SR/IR/LR/ER/ZR , 1000 Base-SX Ethernet. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Compliant

● RoHS-6

● SFP+ MSA

● SFF-8431 SFF-8432

● Laser Class 1 IEC / CDRH compliant

● 1G/10G Ethernet compliance,Compliant with IEEE 802.3ae 10GBASE

Product Features

● CDR both at TX and RX side

● Built-in digital diagnostic functions

● Supports Multi Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates

● Transmission distance up to 300m on MMF OM3 and 120km over SMF

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.

PN Distance Wavelength Fiber Mode Interface Temp. DDM
SFP-10G-SR 300m 850nm Multimode Duplex LC 0-70℃ D
SFP-10G-LR 10km 1310nm Single mode Duplex LC 0-70℃ D
SFP-10G-LRM 220m 1310nm Multimode Duplex LC 0-70℃ D
SFP-10G-ER 40km 1550nm Single mode Duplex LC 0-70℃ D
SFP-10G-ZR 70km-80km 1550nm Single mode Duplex LC 0-70℃ D

10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR

10G Multi Purpose Optical Fiber Transceiver Module SFP+ SR / ER / LR / ZR

Applications

● OTN ITU-T G.709

● 10X/8X/4X/2X/1X Fibre Channel

● SONET OC-192 / SDH STM-64

● 10GBASE-LRM/SR/IR/LR/ER/ZR Ethernet

Ordering Information

PN Data Rate(Gbps) Distance Fiber

Output Power(dBm)

Sensitivity(dBm)

 Interface Temp. DDM
SPT-P31TG-LRM 9.95~11.3 220m MM -6～0.5 -12.6 Duplex LC 0 to 70℃ D
SPT-P85TG-SR 9.95~11.3 300m/OM3 MM -5～-1 -11 Duplex LC 0 to 70℃ D
SFP-P13TG-IR 9.95~11.3 2km SM -8.2～0.5 -14.5 Duplex LC 0 to 70℃ D
SFP-P13TG-LR 9.95~11.3 10km SM -8.2～0.5 -14.5 Duplex LC 0 to 70℃ D
SFP-P13TG-LRS 9.95~11.3 20km SM -8.2～0.5 -14.5 Duplex LC 0 to 70℃ D
SPT-P55TG-ER 9.95~11.3 40km SM 0～3 -17 Duplex LC 0 to 70℃ D
SPT-P55TG-ERS 9.95~11.3 60km SM 0～4 -22 Duplex LC 0 to 70℃ D
SPT-P55TG-ZR 9.95~11.3 80km SM 0～5 -23 Duplex LC 0 to 70℃ D
SPT-P55TG-ZR+ 9.95~11.3 100km SM 1～5 -24 Duplex LC 0 to 70℃ D
SPT-P55TG-ZR++ 9.95~11.3 120km SM 1～5 -24 Duplex LC 0 to 70℃ D
