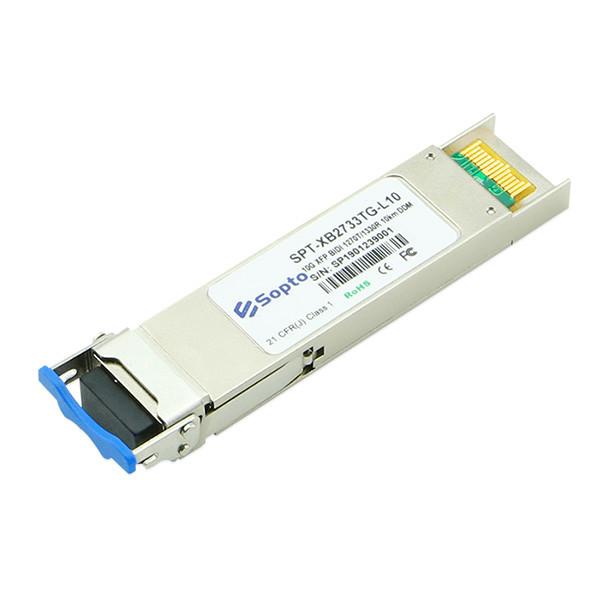

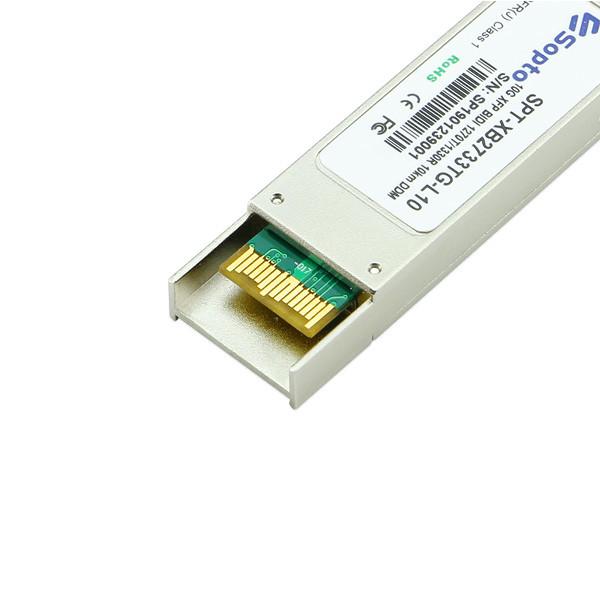

10G Single Fiber BIDI XFP Optical Transceiver with Distance up to 80km over SMF

Sopto 10G BIDI XFP transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

● Simplex LC Interface

● Built-in digital diagnostic functions

● 1270nm&1330nm or 1490nm&1570nm

● Up to 11.3 Gbps Bi-directional Data Links

● Single Fiber BIDI XFP Optical Transceiver

● Transmission distance up to 80km over SMF

● Supports Multi-Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

Compliant

● RoHS-6

● SFF-8472

● XFP MSA

● IEEE 802.3ae 10GBASE-BX or SDH/SONET standards

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHS

Digital Diagnostic Functions

As defined by the XFP MSA 1, FTTX’s XFP transceivers provide digital diagnostic functions via a 2-wire serial interface, which allows real-time access to the following operating parameters:

● Transceiver temperature

● Laser bias current

● Transmitted optical power

● Received optical power

● Transceiver supply voltage

It also provides a sophisticated system of alarm and warning flags, which may be used to alert end-users when particular operating parameters are outside of a factory-set normal range.

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through the 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL pin) is generated by the host. The positive edge clocks data into the XFP transceiver into those segments of its memory map that are not write-protected. The negative edge clocks data from the XFP transceiver. The serial data signal (SDA pin) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially. The 2-wire serial interface provides sequential or random access to the 8 bit parameters, addressed from 000h to the maximum address of the memory.

For more detailed information including memory map definitions, please see the XFP MSA Specification.

Recommended Host Board-Power Supply Circuit

Recommended High-speed Interface Circuit

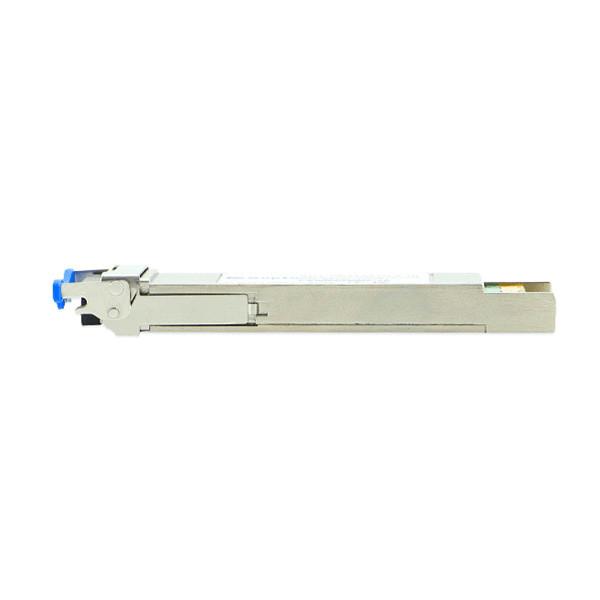

Mechanical Dimensions

All optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10 etc.

Applications

● SONET OC-192 / SDH STM-64

● OTN ITU-T G.709

● 10GBASE-SR/LR/ER/ZR Ethernet

● 10X/8X/4X/2X/1X Fibre Channel

Order Information
