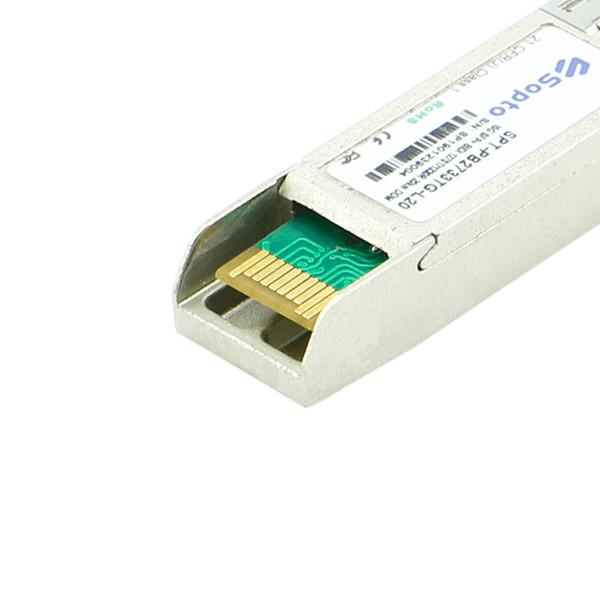

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions
Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Model Number :
SPT-PB2733TG-LXX
Payment Terms :
T/T; L/C; Paypal
Transmission distance :
10 / 20 / 40 / 40 / 80km
Wavelength :
1270nm&1330nm or 1490nm&1570nm
Data rate :
10Gb/s
Fiber type :
Single Fiber Single Mode
Interface :
Simplex LC
Application :
10GBASE-SR/LR/ER/ZR Ethernet
Description

10G BIDI SFP+ Transceiver Modules up to 80km Simplex LC Interface with DDM Function

10G BIDI SFP+ transceiver modules are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by usually using 1330(1270nm) transmitter and 1270(1330) nm receiver. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell, etc.) compatible fiber optic transceivers.

Features

● Simplex LC Interface

● Built-in digital diagnostic functions

● 1270nm&1330nm or 1490nm&1570nm

● Up to 11.3 Gbps Bi-directional Data Links

● Single Fiber Bi-Di SFP+ Optical Transceiver

● Transmission distance up to 80km over SMF

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C

Compliant

● RoHS-6

● SFF-8472

● SFP+ MSA

● IEEE 802.3ae 10GBASE-BX or SDH/SONET standards

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHS.

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

Pin Descriptions

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

Figure1.Elecctrical Pin-out Details

Pin Symbol Name/Description
1 VEET [1] Transmitter Ground
2 Tx_FAULT [2] Transmitter Fault
3 Tx_DIS [3] Transmitter Disable. Laser output disabled on high or open
4 SDA[2] 2-wire Serial Interface Data Line
5 SCL[2] 2-wire Serial Interface Clock Line
6 MOD_ABS[4] Module Absent. Grounded within the module
7 RS0[5]

RS0 for Rate Select: Open or Low = Module supports ≤4.25Gbps

High = Module supports 9.95 Gb/s to 10.3125 Gb/s
8 RX_LOS[2] Loss of Signal indication. Logic 0 indicates normal operation
9 RS1[5] No connection required
10 VEER[1] Receiver Ground
11 VEER[1] Receiver Ground
12 RD- Receiver Inverted DATA out. AC Coupled
13 RD+ Receiver DATA out. AC Coupled
14 VEER[1] Receiver Ground
15 VCCR Receiver Power Supply
16 VCCT Transmitter Power Supply
17 VEET [1] Transmitter Ground
18 TD+ Transmitter DATA in. AC Coupled
19 TD- Transmitter Inverted DATA in. AC Coupled
20 VEET [1] Transmitter Ground

Notes:

1. Module circuit ground is isolated from module chassis ground within the module.

2. should be pulled up with 4.7k – 10k ohms on the host board to a voltage between 3.15Vand 3.6V.

3. Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.

4. Mod_ABS is connected to Veet or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor in the range of 4.7 kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.

5. RS0 and RS1 are module inputs and are pulled low to Veet with > 30 kΩ resistors in the module.

Recommended Interface Circuit

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

Figure2. Host Board-Power Supply Filters Circuit

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

Figure3. Host-Module Interface

Mechanical Dimensions

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

A : LC Receptacle

10G BIDI SFP+ Fiber Optic Transceiver Single Mode Built In Digital Diagnostic Functions

B : SC Receptacle

All-optical transceivers are RoHS compliant and could be 100% compatible with branding equipment, such as Cisco, Extreme, Juniper, HP, H3C, Linksys, Huawei, Alcatel-Lucent, Foundry, Nortel, Force10, etc.

If you want to know more about the exact information of the specified transceiver or get the price

Applications

● SONET OC-192 / SDH STM-64

● OTN ITU-T G.709

● 10GBASE-SR/LR/ER/ZR Ethernet

● 10X/8X/4X/2X/1X Fibre Channel

Ordering Informations

Products

Data Rate(Gbps)

 Distance Fiber

Output Power(dBm)

Sensitivity(dBm)

 Interface Temp. DDM

SPT-PB2733TG-L10/

SPT-PB3327TG-L10

 9.95~11.3 10km SM -6～-1 -14.5 Simplex LC 0-70℃ D

SPT-PB2733TG-L20/

SPT-PB3327TG-L20

 9.95~11.3 20km SM -3～-2 -14.5 Simplex LC 0-70℃ D

SPT-PB2733TG-L40/

SPT-PB3327TG-L40

 9.95~11.3 40km SM 0～5 -16 Simplex LC 0-70℃ D

SPT-PB2733TG-L60/

SPT-PB3327TG-L60

 9.95~11.3 60km SM 1～5 -22 Simplex LC 0-70℃ D

SPT-PB47TG-L80/

SPT-PB74TG-L80

 9.95~11.3 80km SM >1 -22 Simplex LC 0-70℃ D
