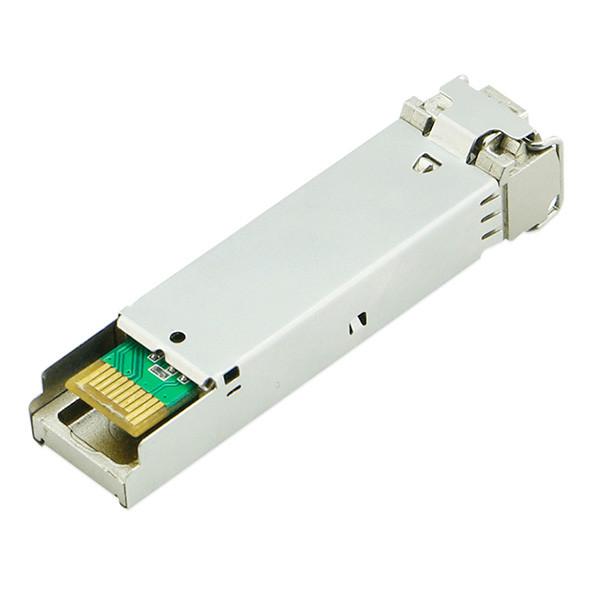

Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate
Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Packaging Details :
10 pcs/plate; 0.024kg/pcs
Payment Terms :
T/T; L/C; Paypal
Wavelength :
1310 / 1550nm
Fiber type :
SM
Distance :
10 / 20 / 40km
Data rate :
3Gbps
Interface :
Duplex LC
Power supply :
Dual power hot-plug
Description

Hot-pluggable Dual LC Video SFP Module up to 40km with RoHS-6 Compliant

SOPTO’s video series transceivers are high performance, cost effective modules for simplex or duplex video transmission application over single mode fiber. The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

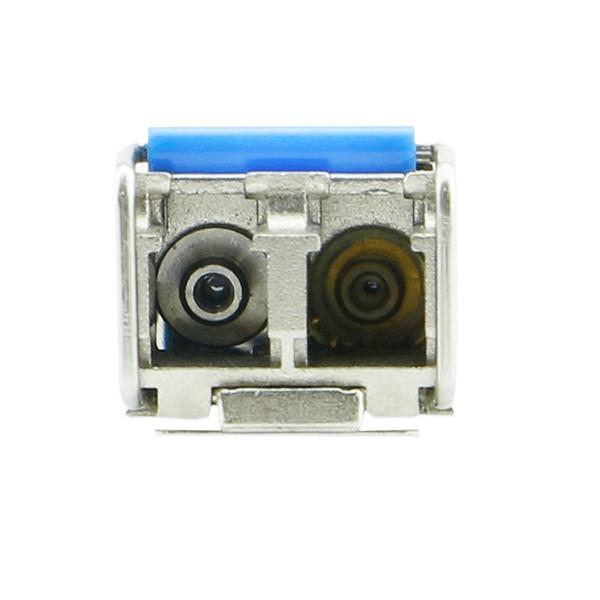

● Dual LC receptacles

● Supports 3Gb/s data rate

● Single +3.3V power supply

● Hot-pluggable SFP form factor

● Metal enclosure for Lower EMI

● Built-in digital diagnostic functions

● Single channel full-duplex transceiver module

● Operating Case Temperature: Standard: 0~70°C

● Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI

Compliant

● RoHS-6

● SMPTE ST-297-2006 standards

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European EC, RoHs

Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate

Applications

● SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.

● HDTV/SDTV Service Interfaces.

Hot - Pluggable SFP Fiber Optic Transceiver Supports 3Gb/S Data Rate

Ordering Information

PN Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM
Normal

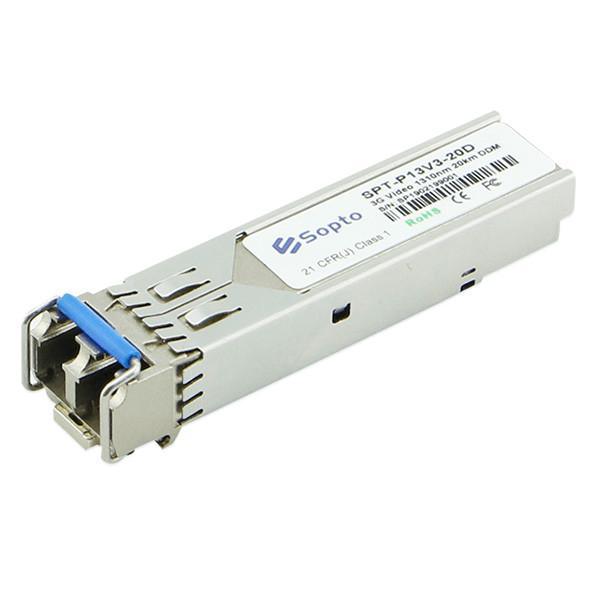

SPT-P13V3-10D 3 10km SM -7 ~ 0 -22 Duplex LC 0 to 70℃ D
SPT-P13V3-20D 3 20km SM -6 ~ 0 -22 Duplex LC 0 to 70℃ D
SPT-P55V3-40D 3 40km SM -2 ~ 3 -22 Duplex LC 0 to 70℃ D
Dual Tx
SPT-P2T13V3-20D 3 20km SM -6 ~ 0 Null Duplex LC 0 to 70℃ D
SPT-P2T13V3-40D 3 40km SM -2 ~ 3 Null Duplex LC 0 to 70℃ D
Single Rx
SPT-P1RV3-L40D 3 40km SM Null -22 Simplex LC 0 to 70℃ D
Dual Rx
SPT-P2RV3-L40D 3 40km SM Null -22 Simplex LC 0 to 70℃ D
