Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Model Number :
SPT-QSFP+XR4
Packaging Details :
8 pcs/plate; 0.049kg/pcs
Payment Terms :
T/T; L/C; Paypal
Fiber type :
SMF / MMF
Transmission distance :
400m on MMF OM4 and 40km over SMF
Interface :
MPO / MTP / LC
Operating temperature :
Standard 0~70°C
Wavelength :
850nm / 900nm / 1310nm
Power supply :
Hot-plug
Description

Hot Pluggable Duplex LC Connector 40G QSFP + Fiber Optic Module

QSFP+ is a new Multi-Source Agreement (MSA) for high speed application, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps. The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4/CSR4/IR4/ER4 applications. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

● Four-channel full-duplex

● Hot Pluggable QSFP+ form factor

● Built-in digital diagnostic functions

● Single 1x12 MPO/MTP receptacle or Duplex LC

● Operating Case Temperature: Standard: 0~70°C

● Transmission distance up to 400m on MMF OM4 and 40km over SMF

● MMF Optical connectivity via industry standard MPO/MTP terminated fiber ribbon

Compliant

● RoHS-6

● SFF-8436

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system,the requirements of European CE, RoHs

40G QSFP+ Fiber Optic Module Four-Channel Full Duplex For Other Optical Links

Applications

● 40GBASE-SR4/CSR4/IR4/LR4/ER4 40G Ethernet

● Breakout to 4 x 10GBASE-SR Ethernet

● High-speed interconnects within and between switches, routers and transport equipment

● Server-Server Clusters, Super-computing interconnections

● Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

● InfiniBand SDR, DDR and QDR applications

● Proprietary interconnections

● Other optical links

Ordering Information

PN

Data Rate(Gbps)

 Distance Fiber

OutputPower (dBm)

 Sensitivity (dBm) Interface Temp. DDM
SPT-QB8940G-SR4 40 100m/OM3
150m/OM4		 MM -4～5 -11 Duplex LC 0-70℃ D
SPT-QSFP+MSR4 40

100m/OM3

150m/OM4

 MM -8～0 -13 MPO/MTP 0-70℃ D

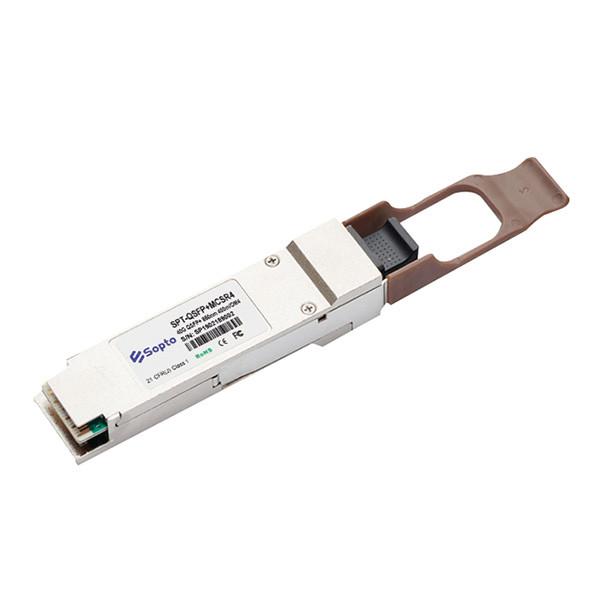

SPT-QSFP+MCSR4 40 300m/OM3
400m/OM4		 MM -8～1 -13 MPO/MTP 0-70℃ D
SPT-QSFP+IR4 40 2km SM -2～3.5 -11.5 Duplex LC 0-70℃ D

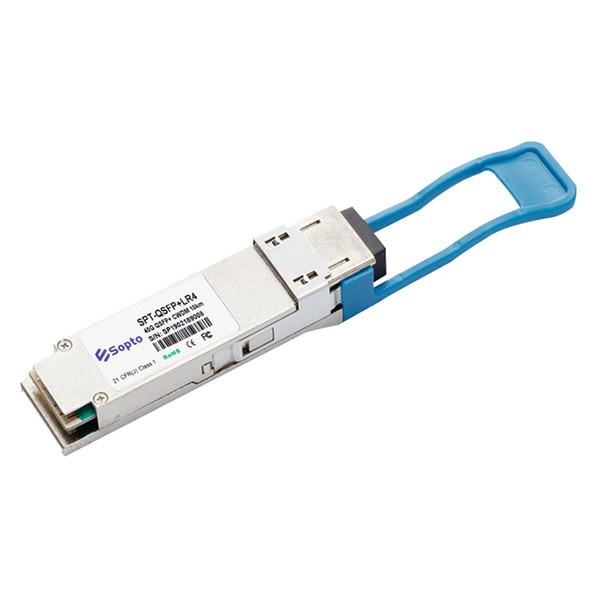

SPT-QSFP+LR4 40 10km SM -7～2.3 -11.5 Duplex LC 0-70℃ D
SPT-QSFP+LR4 40 20km SM -3～4.5 -11.5 Duplex LC 0-70℃ D
SPT-QSFP+MLR4 40 10km SM -6.5～-1 -10.3 MPO/MTP 0-70℃ D

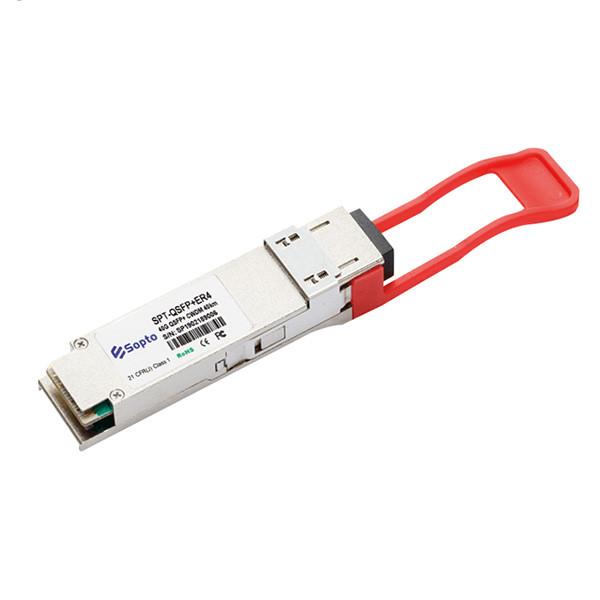

SPT-QSFP+ER4 40 40km SM -7～8 -22 Duplex LC 0-70℃ D
