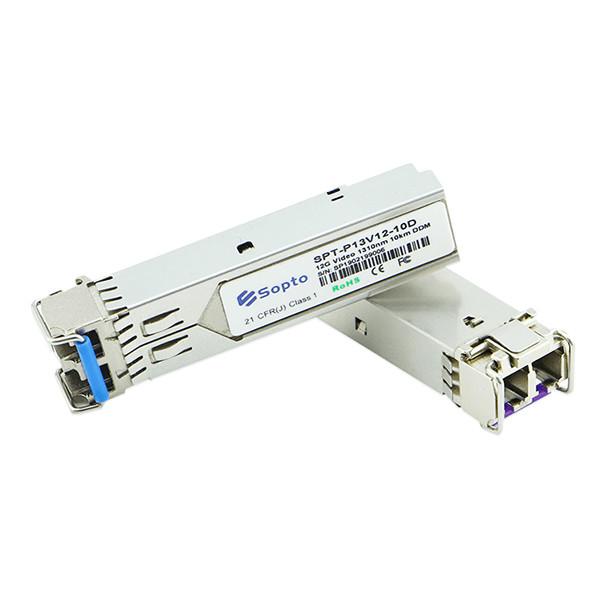

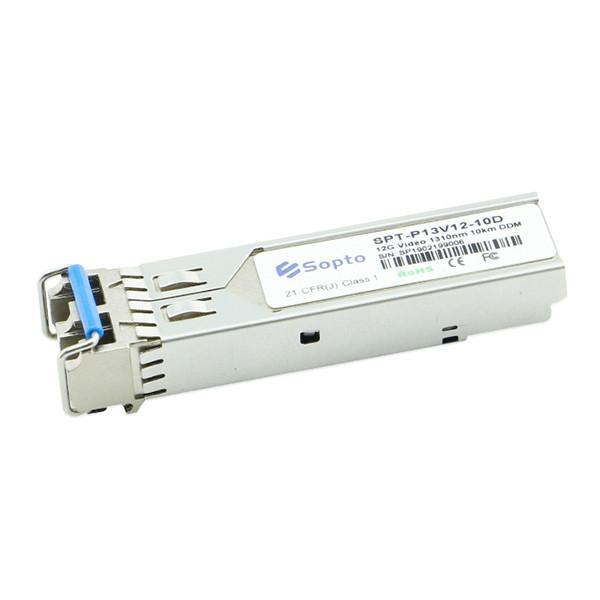

Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface
Specifications
Delivery Time :
3-5 working days
Brand Name :
Sopto
Certification :
ISO9001 / CE / RoHS
Model Number :
SPT-P13V12-XD
Payment Terms :
T/T; L/C; Paypal
Wavelength :
1310nm
Fiber type :
SM
Date rate :
12G
Interface :
Duplex LC
Distance :
10km / 20km
Application :
UHDTV/HDTV/SDTV Service Interfaces
Description

Video 12G 1310nm DFB Laser SFP Module with +3.3V Single Power Supply

Soptos video series transceivers are high performance, cost effective modules for simplex or duplex video transmission application over single mode fiber. The video 12G transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps and is specifically designed for robust performance. Sopto supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Features

● 1310nm DFB laser

● +3.3V single power supply

● Metal enclosure for Lower EMI

● SD/HD/3G/6G/12G-SDI SFP Transceiver available

● SMPTE ST-297-2006, ST2081 and ST-2082 Compatible

● Operating case temperature: Standard: 0 to +70°C

● Digital Diagnostic functions available through the I2C interface

● Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI

Compliant

● RoHS

● with SFP MSA and SFF-8472 with duplex LC receptacle

Sopto fiber optic transceiver took the first lead to pass the ISO9001 quality system, the requirements of European CE, RoHs

Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface

Applications

● SMPTE ST-297-2006, ST2081 and ST-2082 Compatible Electrical-to-Optical Interfaces.

● UHDTV/HDTV/SDTV Service Interfaces

Video 12G Fiber Optic SFP Types Module 1310nm DFB Laser Duplex LC Interface

Ordering Information

PN Data Rate(Gbps) Distance Fiber Output Power(dBm) Sensitivity(dBm) Interface Temp. DDM
SPT-P13V12-10D 12 10km SM -6~ -2 -14 Duplex LC 0 to 70℃ D
SPT-P13V12-20D 12 20km SM -5 ~ -2 -14 Duplex LC 0 to 70℃ D
