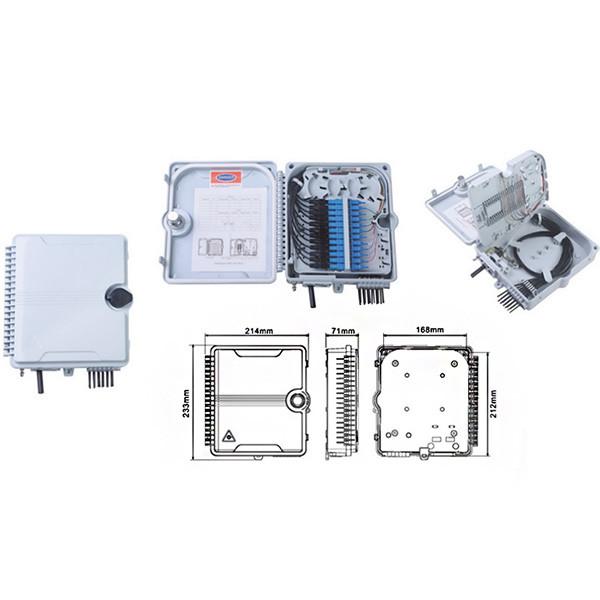

Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPDF-O12SCS-PXX
Delivery Time :
7-10 working days
Packaging Details :
700*260*460； 18kg/20pcs
Type :
Indoor / Outdoor
Adapter :
SC / LC
Product name :
12 cores Splitter Distribution Box
Installation :
Wall-mounted
Material :
PC+ABS
Application :
FTTH FTTB FTTX Network, LAN/WAN
Description

Splitter Distribution 12 cores Box Dust and Moisture Proof wirh High Quality PC +ABS Material

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building

Features

● Total enclosed structure, be in nice shape

● Protects and manages cable effectively

● Secured with anti-theft locking mechanism

● Standard size, light weight

● High quality PC +ABS material

● Good properties of dust, and moisture proofing, IP65

● Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

● Suitable for SC and LC duplex adaptor and pigtail

● Easy to operate

● Suitable for both outdoor and indoor use

Item Parameter
Model No. SPDF-O12SCS-XX
Mounting way Wall-mounting
Work Temperature -40 °C ~+85 °C
Relative Humidity ≤ 85% (+30 °C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flash over. U ≥3000V (direct current)

Indoor / Outdoor 12 Cores FTTH Splitter Box Wall - Mounted Installation

Applications

● Telecommunication subscriber loop

● Fiber to the home (FTTH)

● LAN/WAN

Ordering Information

Part Number Product Description Size(mm)
SPDF-O12SCS-PMPA

Splitter Distribution Box Outdoor Wall mounted 12 cores Simplex SC/Duplex LC type available for Steel tube

splitter installation without hoop, adaptors, pigtails and splitter Plastic type A

 255*200*65
SPDF-O12SCS-PPD

Splitter Distribution Box Outdoor Wall mounted 12 cores Simplex SC/Duplex LC type without hoop, adaptors,

pigtails and splitter Plastic type D

 199*174*53
