SM MM Underwater Fiber Optic Cable , Submarine Optical Cable With PE / LSZH Jacket
SM MM Underwater Fiber Optic Cable , Submarine Optical Cable With PE / LSZH Jacket
SM MM Underwater Fiber Optic Cable , Submarine Optical Cable With PE / LSZH Jacket
SM MM Underwater Fiber Optic Cable , Submarine Optical Cable With PE / LSZH Jacket
Specifications
Brand Name :
Sopto
Delivery Time :
10-15 working days
MOQ :
2KM
Model Number :
GYTA5333 / GYFTY33
Packaging Details :
Roll or Carton
Payment Terms :
T/T; L/C; Paypal
Certification :
ISO9001 / CE / RoHS
Application :
FTTX
Fiber type :
Single mode or multi mode
Fiber count :
2-288 Cores
Length :
Customized
Jacket material :
PE / LSZH
Description

2-288 Cores Submarine Fiber Cable Undersea 100 Meters SM and MM are Available

Submarine Fiber cable, externally wrapped with steel or steel wire, used directly under water, requires resistance to external mechanical damage and strong water pressure.

Features

● 2 ~ 288 cores

● Steel wire as strength member.

● Loose-tube twisted single sheath structure

● Steel wire armoring

● Applicable for underwater 100 meters

● Loose tube material with good hydrolysis resistance and high strength; Flooding jelly compound to ensure critical protection of fiber

● Compact structure,excellent waterproof performance, excellent mechanical performance and temperature performance

● bunched or ribbon fiber

● SM (G.652D, G.655, G.657.A1, G.657.A2) and MM(OM1,OM2,OM3,OM4) are available;

● PE,LSZH outer jacket material optional

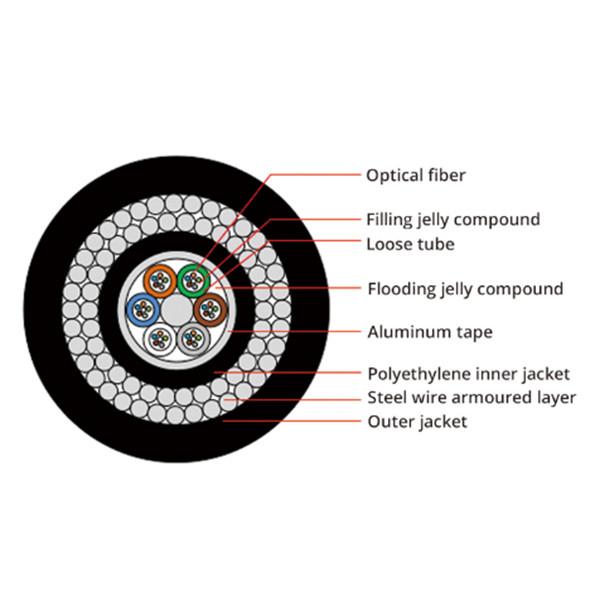

Cross Section of Cable

Working Condition

Item Standard Parameters
Operation temperature IEC 60794-1-2 F1 760

Drum

Part NO. Height (mm) Width (mm) Inner diameter (mm) Length(km) Drum type
GYTA5333 1250 760 500 2 Iron wood drum
GYFTY33 950 760 400 2 Iron wood drum

Product Certificate

Sopto fiber optic cable took the first lead to pass the ISO9001 quality system, ISO14001 environment management system, OHSAS18001 occupational health safety management system,and its fiber optical cable meet the requirements of European CE, RoHs, Chinese TLC

Applications

● Long-distance backbone network

● Urban ring network

● Access Network, FTTX

● Relay between communication machine rooms

Ordering Information

Cable Type Product Description Application
GYTA5333

Outdoor optical cable , Metal strength member; Aluminum-polyethylene adhesive and Steel-polyethylene adhesive inner jacket ;Single smaller round steel wire armoring；PE Outer jacket

Direct Buried or Submarine
GYFTY33 Outdoor optical cable , Non-metal strength member, PE inner jacket; Single smaller round steel wire armoring；PE Outer jacket Direct Buried or Submarine

Notes:

1.Flooding jelly compound default

2.The relevant technical parameters can be adjusted according to the customers’ demands;

3.The block water way can be adjusted according to the customers’ demands;

4.The design flame resistance,anti-rodent,termite resistant cable according to the customers'demands.
