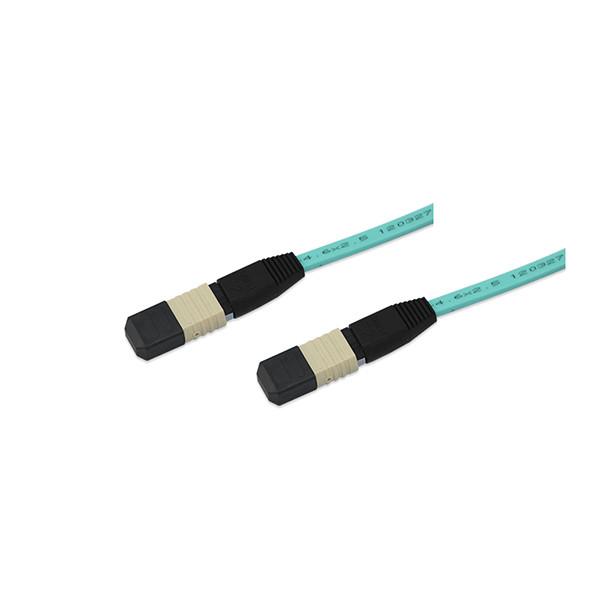

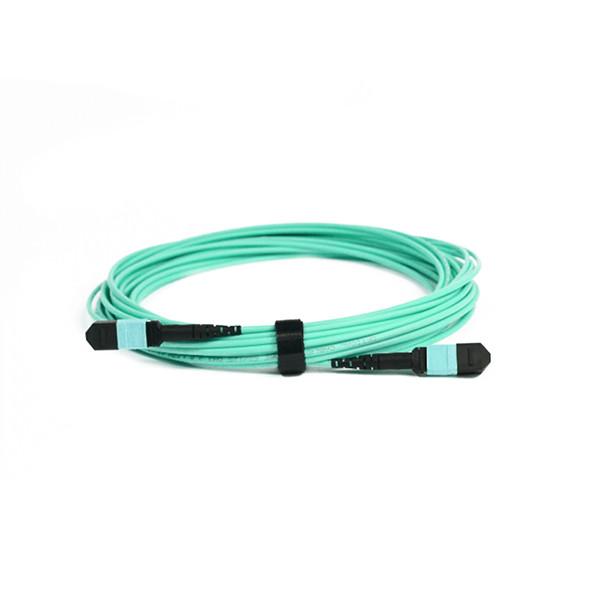

MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
MPO / MTP Mode Conditioning Patch Cord Compact Design
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Packaging Details :
Blister Box Packing
Delivery Time :
3-7 working days
Fiber type :
Simplex and Duplex/ SM or MM
Application :
Gigabit Ethernet/ CATV/ Telecommunication Networks
Connector type :
MTP/MPO
Length :
3M or customized
Insertion loss :
≤0.35dB SM/ ≤0.5dB MM
Return loss :
>60dB SM/ >35 MM
Material :
LSZH
Description

MPO / MTP Fiber Optic Patch Cords with PC / APC / UPC / Plat Polish End Face

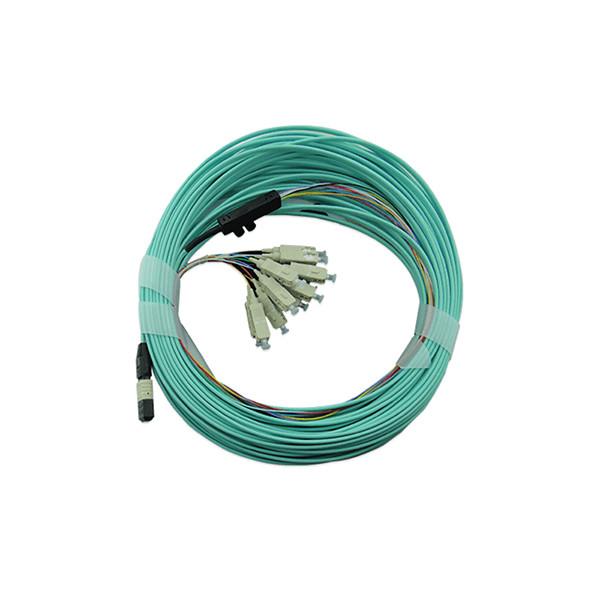

MPO/MTP patch cord is a multi-fiber patch cord with fiber count of 4, 6, 8 12, 24,48. MPO/MTP patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating. MPO/MTP connector assembled to ribbon or bare ribbon connectors with push-pull latching.Supplies MPO/MTP Trunk Cable,MPO/MTP BunchCable,MPO/MTP Fanout Cable,MPO/MTP Cassette Module and MPO/MTP Patch Cord, MPO Splitter Module which are all suitable for 40G QSFP+

Features

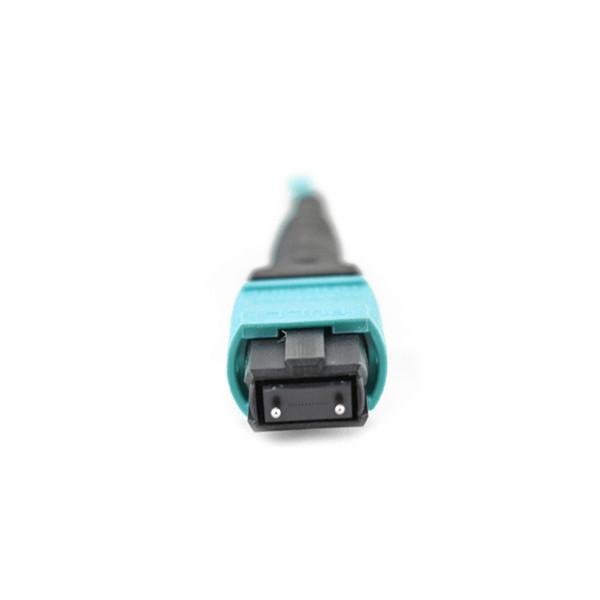

● Precision molded MT ferrule

● High precision guide pins for exact alignment

● Compact design, up to 4,8,12,24 fibers

● IEC 61754-7 Compliant

● Telcordia GR-1435-CORE Compliant

Specifications

● End Face Type: PC/APC/UPC/Plat Polish

● Connector Type: MTP/MPO

● Operating Wavelength: 850nm/1310nm/1550nm

● Length: 0.5m/1m/2m/3m/5m/7m/12m or customer specified

● Insertion loss: ≤0.35dB SM; ≤0.5dB MM

● Return loss: >60dB SM; >35 MM

● Interchangeability: ≤0.2dB

● Repeatability: ≤0.2dB

● Insert-pull test: >1000 times

● Fiber Type: SM, MM, OM1, OM2, OM3, OM4, duplex, simplex

● Fiber Diameters: 9/125µm SM; 62.5/125/µm, 50/125µm MM

● Material Feature: PVC/LSZH/OFNR/OFNP/Plenu

● Storage Temperature: -40~+85°C

● Operating Temperature: -25~+85°C

● Storage Humidity: 95%RH (Non-Packaging)

● Packing: Blister Box Packing

● Standard: ROHS

Sopto fiber optic patch cords took the first lead to pass the ISO9001 quality system, the requirements of European RoHs

MPO / MTP Mode Conditioning Patch Cord Compact Design

Applications

● Gigabit Ethernet

● Industrial & Military

● Premise Installations

● CATV, Video and Multimedia

● Telecommunication Networks

● Interconnection for O/E modules

● Active Device/Transceiver Interface

● Asynchronous Transmission Mode(ATM)

● Optical Switch interframe connections

● Parallel optical interconnect between PC Cards and patch panels

Ordering Information

SPP-MPOM - MPOM – AA – 12D – 3HA

1 2 3 4 5 6 789
1 - Connector A MPOF: MPO Female; MPOM: MPO Male
2 - Connector B MPOF: MPO Female; MPOM: MPO Male
3 – End face A P:PC polish; A:APC polish
4 – End face B P:PC polish; A:APC polish
5 - Fiber Count 12: 12 Cores; 8: 8 Cores ; 24: 24 Cores
6 - Fiber Mode M1: OM1; M2: OM2; M3: OM3; M4: OM4; D: G.652D; A1: G657.A1
7 - Length 3 : Cable total length 3M ; etc
8 - Cable Jacket Materials H:LSZH
9 - Polarity A: Type A; B: Type B; C: Type C
Fiber Type& Diameter Default: Mini Round Cable 3.0mm
Cable Jacket Color Default:Aqua ( OM3,OM4) Orange (OM1,OM2) , Yellow (SM)

Note: 1. MPO-MPO patch cord standard polarity is “ Type A” unless specified otherwise.

2. MPO polishing according to industrial standard: SM-APC polishing, or PC polishing

3. MPO connector housing color: SM-Yellow, OM1/OM2-Orange, OM3/OM4-Aqua.

4. If you need more customized services, please contact us.
