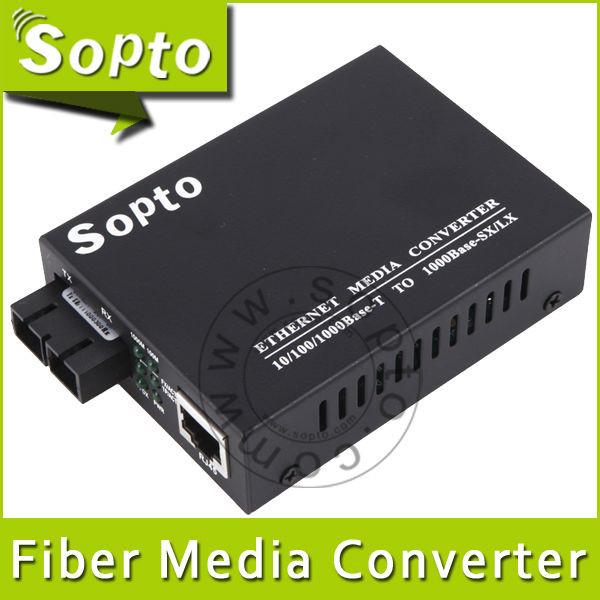

40km 10/100/1000M Fiber Media Converter Multi Mode SC/FC/ST Connectors
40km 10/100/1000M Fiber Media Converter Multi Mode SC/FC/ST Connectors
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Sopto
Model Number :
SPM-ET53-N40S
Supply Ability :
50 Unit/Units per Day
Packaging Details :
carton package
MOQ :
1 Unit/Units
Price :
$1.00 - $500.00 / Unit
Product :
Fiber media converter
Data Rate FX :
100 Base-SX/LX
Data Rate TX :
10/100/1000 Base-T
Fiber Type :
Multi mode(MM)
Fiber/UTP Ports :
1 / 1
Distance :
40km
Power Requirement :
AC:100-260V; DC:+5V
Wavelength :
1310nm
Connectors :
SC/FC/ST
Warranty :
1~3 Year
Port :
shenzhen
Description

40km 10/100/1000M-Tx to 100M RJ45 Fiber Media Converter

SPM-ET53-N40S

MC1310121FD

  • MM 1310nm 40KM 10/100/1000M-TX to 100M-FX Media Converter
  • High Quality with FCC certificate
  • Condition: Brand New
  • Manufacturer: SOPTO


Your Fiber Media Converter carton should contain the following items:

  • 10/100/1000M-TX to 100M-FX Fiber Media Converter
  • AC-DC Power Adapter
  • This User's Guide

Please notify your sales representative immediately if any items are missing or damaged.

Features

Product

Data Rate FX

Data Rate TX

Fiber media converter

100 Base-SX/LX

10/100/1000 Base-T

Fiber Type

Fiber Ports

UTP Ports

Multi mode(MM)

1

1

Distance

Power Requirement

Power Supply Type

40km

AC:100-260V; DC:+5V

External

Wavelength

Connectors

POE

1310nm

SC/FC/ST

No

Operating Temperature

Manageable

Warranty

0~70°C

No

1Year

Installations:
1. Turn off the power of the device/station in the network in which the 10/100/1000M-TX to 100M-FX fiber media converters will be installed.
2. Ensure there is no activity in the network.
3. Attach fiber cable from the 100M fiber media converters to the fiber network. The fiber connections must be matched--transmit socket to receive socket.
4. Attach a UTP cable from the 10/100/1000Base-TX network to the RJ-45 port on 10/100/1000M-TX to 100M-FX fiber media converters.
5. Connect the power cord to the 10/100/1000M-TX to 100M-FX fiber media converters and check that the Power LED lights up. The TP Link and FX Link LEDs will light when all the cable connections are satisfactory
6. Turn on the power of the device/station.

OEM and ODM
OEM and ODM order is optional.
We provide SPM-ET53-N40S according to your requirements, and customize packaging with 10/100/1000M-TX to 100M-FX fiber media converter label and your logo.

Ordering information:
10/100/1000M-TX to 100M-FX Fiber Media Converter

SPM

–XXXXX

–XXX

1

23456

789

NO.

Item Parameter

Symbol

1

SOPTO

SP=SOPTO M=Media Converter

2

Power

E=External power supply

3

Product Type

Blank=Ordinary Media Converter

4

No. of Fiber Ports

Blank=Ordinary Media Converter

5

Bit-rate

T5=10/100/1000M-TX to 100M-FX

6

Wavelength

Dual Fiber:3=1310nm

7

Transceiver Interface

N=1*9

8

Distance

40=40KM

9

Connector

S=SC F=FC T=ST

Shipment
International Express: DHL, FedEx, UPS, TNT and EMS
Shipments are usually delivered in 1-3 working days after received payment and 1-3 days after received the PO for the VIP customers.

Sopto is your reliable supplier of SPM-ET53-N40S 10/100/1000M-TX to 100M-FX External Power Supply Fiber Media Converter. We test each piece of SPM-ET53-N40S 10/100/1000M-TX to 100M-FX Fiber Media Converter before shipment to ensure the SPM-ET53-N40S 10/100/1000M-TX to 100M-FX Fiber Media Converter can work in your system without any problems. If you need the datasheets of SPM-ET53-N40S please feel free to contact us.
