Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Good Interchangeability Fiber Optic Connectors With Simplex SM A Type
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPFA-SCX-SA
Certification :
RoHs / ISO9001
Return loss :
APC：≥50dB； UPC≥45dB
Insert loss :
APC：≤0.3dB； UPC：≤0.35dB
Application :
FTTH FTTB FTTX Network
Fiber Diameter :
0.9/2.0/3.0mm
Working Temperature :
-40~+85℃
Standard :
Telcordia gr-326-core
Description

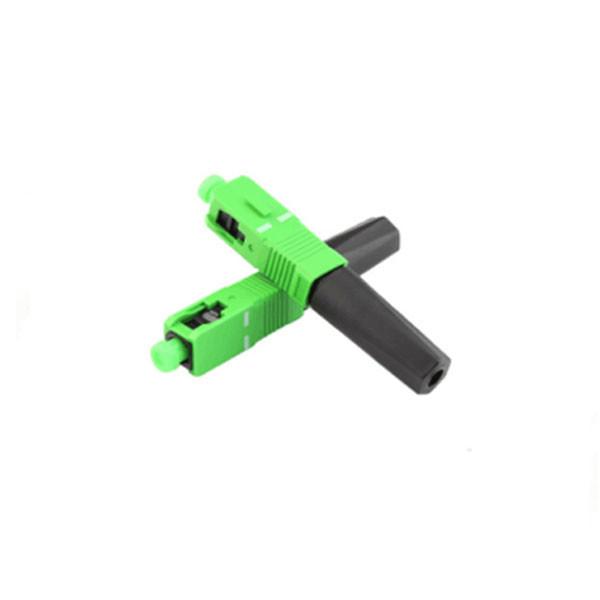

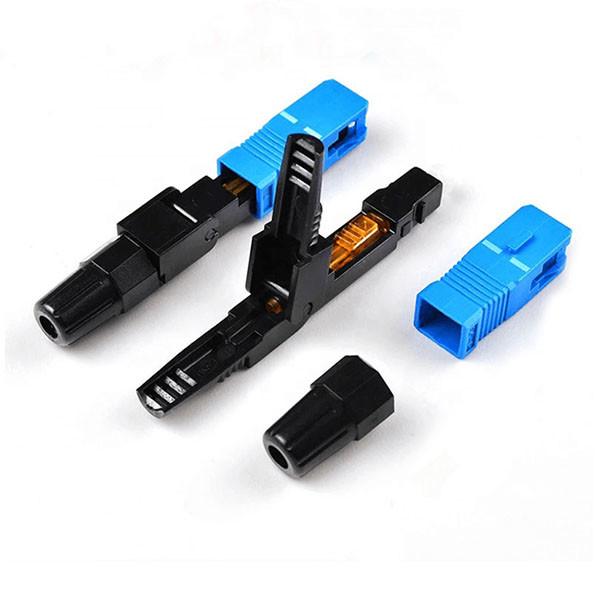

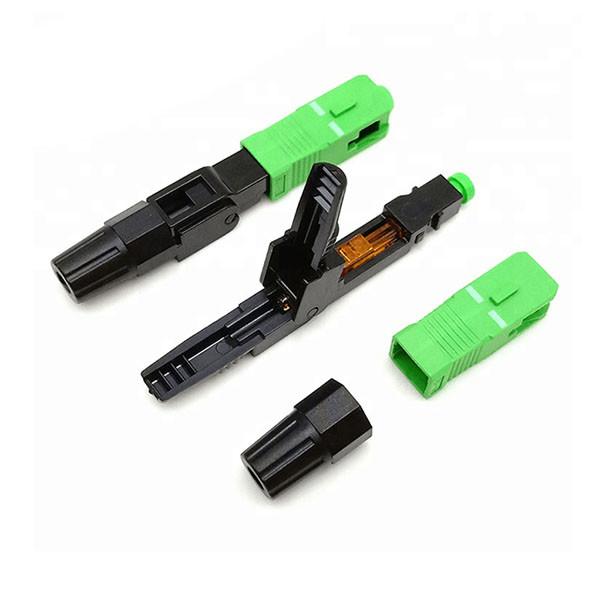

SC / UPC , SC / APC or LC / APC Fiber Fast Connector with Simplex SM A Type

Fiber fast connector is the detachable quick connection between optical fiber and optical fiber devices, it is to put the two optical fiber end face up, so that the optical output of light energy can bigger limit coupled to the receiving optical fiber, and optical link due to the intervention and the effects on the system to a relatively small.

Features

● Meet Telcordia gr-326-core standard.

● Low insertion loss, high echo attenuation, high stability.

● Good interchangeability.

● Adopt standard metal parts.

● Bayonet connection mode, high-density connection.

● Ceramic core APC, UPC grinding.

Good Interchangeability Fiber Optic Connectors With Simplex SM A Type Good Interchangeability Fiber Optic Connectors With Simplex SM A Type

Item Parameter
Work Temperature -40~+85℃
Insert Loss APC:≤0.3dB；UPC:≤0.35dB；
Return Loss APC:≥50dB；UPC≥45dB
Fiber Diameter. 0.9/2.0/3.0mm

Sopto fiber optic connector took the first lead to pass the ISO9001 quality system, the requirements of European RoHs

Good Interchangeability Fiber Optic Connectors With Simplex SM A Type

Applications

● Fast Connectors are used to open an FTTH fiber terminal.

● The connection box, the cabinet, the end box and so on.

● The recovery and maintenance of accidents such as broken fiber.

● LAN, wan, data and video transmission.

● The construction and maintenance of optical fiber access for the end users.

Ordering Information

Part Number Product Description
SPFA-SCU-SA Fast Connector SC/UPC Simplex SM A type
SPFA-SCA-SA Fast Connector SC/APC Simplex SM A type
SPFA-SCU-MA Fast Connector SC/UPC Simplex MM A type
SPFA-LCA-SA Fast Connector LC/APC Simplex SM cable diameter 0.9mm A type
