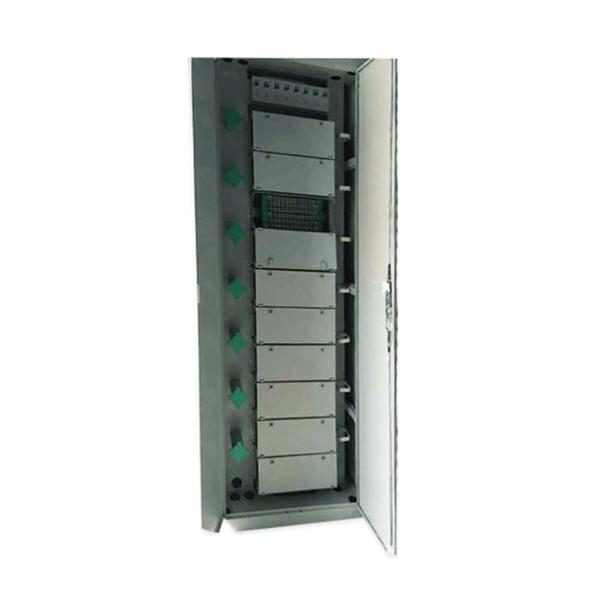

Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Floor Type Optical Distribution Frame 720 Cores. With Double Sided Front Door
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPDF-720SF-FSMX
Maximum capacity :
720 Cores
Material :
Steel
Application :
FTTH FTTB FTTX Network / LAN/WAN
Working wavelength :
850nm / 1310nm / 1550nm
Size :
4 types optional
Door Type :
Double-sided
Description

Optical Distribution Frame Indoor Floor 720 Cores SC Type with ODF Unit Box for FTTH

Optic Distribution Frame can be used in the termination and distribution of partial trunk optical cable in optical cable communication system, easy to realize connection, distribution and adjustment.

Features

● Fully enclosed standard frame with a maximum capacity of 720 cores.

● Double-sided front door., which is highly convenient to manage the fiber cable.

● Distribution, transfer and storage, with the advantage of big capacity, convenient for both operation and maintenance

● Cables and fibers can be inlet from the top and the bottom of the frame through separate entrances. Cable entrances are protected by cable-protected ribbon.

● Made of top-quality steel and treated with galvanizing, oxidation and electrostatic plastic spraying. Solid structure and pleasing appearance.

Applications

● Telecommunication subscriber loop

● Fiber to the home(FTTH)

● LAN/WAN

Ordering Information

Part Number Product Description Size(H*W*D)mm
SPDF-720SF-FSMA

Optical Distribution Frame Indoor Floor type 720 cores SC type straight blade with Splice Tray,without adaptors, pigtails Metal type A

 2200*600*300
SPDF-720SF-FSMB Optical Distribution Frame Indoor Floor type 720 cores SC type straight blade,with Splice Tray,without adaptors, pigtails Metal type B 2200*800*450
SPDF-720SF-FHMC

Optical Distribution Frame Indoor Floor type 720 cores SC type with ODF unit box,without adaptors, pigtails

Metal type C

 2200*800*450
SPDF-720SF-FHMD

Optical Distribution Frame Indoor Floor type 720 cores SC type with ODF unit box,without adaptors, pigtails

Metal type D

 2200*840*300
