Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPNR-IFXXX
Packaging Details :
Glass door or mesh door
Product Name :
The 19-inch network cabinet
Application :
LAN / WAN / FTTH
Door Material :
Mesh or glass
Accessories :
PDU Cooling fan, Shelf / Bracket
Height :
Max 47U
Others :
Security lock
Description

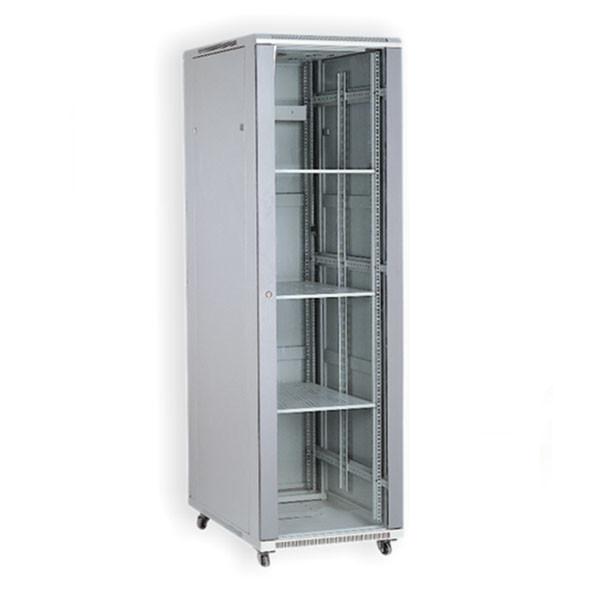

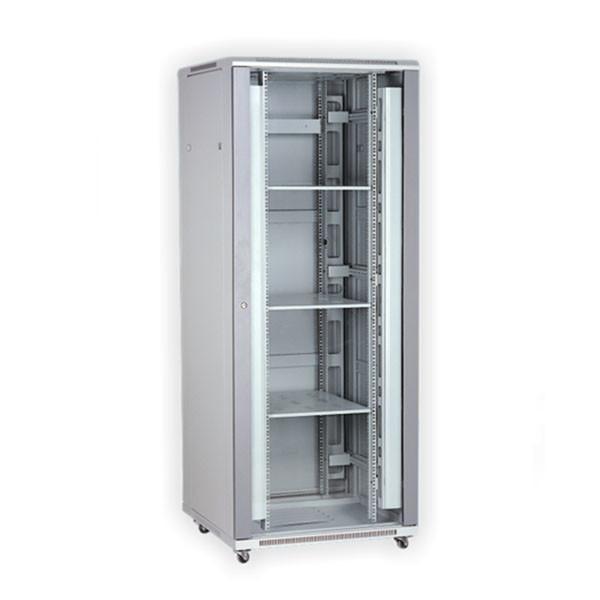

12U - 47U Floor Type Network Cabinet with Glass Door or Mesh Front door for FTTH

The 19-inch network cabinet is applied to computer network integrated engineering, building wiring, telecommunications, radio and sound engineering, intelligent community, school, government and other economic and large and medium-sized wiring projects. The equipment can be used to place active and passive devices such as switches, routers, servers, 19-inch optical fiber terminal boxes, etc. Sopto provide 12U,14U,18U,22U,27U,32U 37U,42U 47U network cabinets with glass door or mesh front door.

Features

● Comply with ANSI/EIA; RS-310-D; IEC 297-2; DIN41491:PART1; DIN41494: Part7:GB/T3047.2-92; ETSI Standard

● Removable side door, easy and quick for install and uninstall.

● Security lock device to ensure the safety of the equipment

● Use of high-quality cold rolling plate, anti-static spraying­­­­

● 2 fans for 600mm depth cabinet and 4 fans for 800mm depth cabinet

● Various optional accessories: PDU, cooling fan, shelf, bracket and cable tray and so on.

12U - 47U Floor Network Cabinet With Glass Door / Mesh Front Door12U - 47U Floor Network Cabinet With Glass Door / Mesh Front Door

Common Cabinet Type - 42U Rack

The 42U Rack’s door system includes a four-point locking system. The door can be easily rotated so it can be hinged from the left or right. The side panels can be screwed on, locked in place, or hinged to provide side door access.

Specification
Size(W*D*H)mm

● 600*600*2050

● 600*800*2050

● 800*800*2050
Accessories

● Sidewalls, Split rear doors

● Baying Kits, toolless Shelves, casters, Bolt Down Kits, Cable Management

● Power Strips – vertical or Rackmount, Enclosure Monitoring System

● Toolless Blanking Panels, Fans
Features

● Open bottom for cable access

● Compatible with airflow optimization and cable management accessories

● Compact design allows the enclosure to roll through standard height commercial doorways

● Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable

● Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first

● Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack

● Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.

Applications

● Telecommunication subscriber loop

● Fiber to the home (FTTH)

● LAN/WAN

Ordering Information

Model No. Description Size(W*D*H)mm
SPNR-IF47A 47U Network rack,flat hexagonal mesh door 600*800*2275
SPNR-IF47B 47U Network rack,flat hexagonal mesh door 600*600*2275
SPNR-IF47C 47U Network rack,flat hexagonal mesh door 800*800*2275
SPNR-IF42A 42U Network rack,flat hexagonal mesh door 600*600*2050
SPNR-IF42B 42U Network rack,flat hexagonal mesh door 600*800*2050
SPNR-IF42C 42U Network rack,flat hexagonal mesh door 800*800*2050
SPNR-IF37A 37U Network rack,flat hexagonal mesh door 600*600*1830
SPNR-IF37B 37U Network rack,flat hexagonal mesh door 600*800*1830
SPNR-IF32A 32U Network rack,flat hexagonal mesh door 600*600*1610
SPNR-IF32B 32U Network rack,flat hexagonal mesh door 600*800*1610
SPNR-IF27A 27U Network rack,flat hexagonal mesh door 600*600*1387
SPNR-IF27B 27U Network rack,flat hexagonal mesh door 600*800*1387
SPNR-IF22A 22U Network rack,flat hexagonal mesh door 600*600*1165
SPNR-IF22B 22U Network rack,flat hexagonal mesh door 600*800*1165
SPNR-IF18A 18U Network rack,flat hexagonal mesh door 600*600*987
SPNR-IF47GA 47U Network rack, Glass door 600*600*2275
SPNR-IF47GB 47U Network rack, Glass door 600*800*2275
SPNR-IF47GC 47U Network rack, Glass door 800*800*2275
SPNR-IF42GA 42U Network rack, Glass door 600*600*2050
SPNR-IF42GB 42U Network rack, Glass door 600*800*2050
SPNR-IF42GC 42U Network rack, Glass door 800*800*2050
SPNR-IF37GA 37U Network rack, Glass door 600*600*1830
SPNR-IF37GB 37U Network rack, Glass door 600*800*1830
SPNR-IF32GA 32U Network rack, Glass door 600*600*1610
SPNR-IF32GB 32U Network rack, Glass door 600*800*1610
SPNR-IF27GA 27U Network rack, Glass door 600*600*1387
SPNR-IF27GB 27U Network rack, Glass door 600*800*1387
SPNR-IF22GA 22U Network rack, Glass door 600*600*1165
SPNR-IF22GB 22U Network rack, Glass door 600*800*1165
SPNR-IF18GA 18U Network rack, Glass door 600*600*987
