Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension
Specifications
Model Number :
SPFC-PV-XXH-4/4C
Packaging Details :
540*485*465/4PCS
Max Trays :
4
Dimension :
φ230*440mm
Net weight :
2.7kg
Installation :
Pole-mounting /Wall-mounting/Aerial
Cable diameter :
Φ7~Φ22
Splice tray :
24 single fiber
Description

24 Cores Max Splitter Fiber Closure 4 IN 4 OUT Hot Melt Sealing

SPFC-PV-XXH-4/4C is a into six out type heat sealing cap type optical fiber cable connector box, suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole-mounting ,differences in place.The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube.

Hot Melt Sealing Optical Fiber Splice Closure 4 IN 4 OUT φ230*440mm Dimension

Features

● The fiber optic splice closure consists of cover,pedestal,splice tray,hoop,optical cable storage box.

● The cable entry ports are sealed with heat shrinkable tube.

● This is single fiber splice closure, it provide with one elliptical port and 6 round ports.The elliptical port, which can hold two stick optical cables.

● The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. ● ● With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

● Equipped with air - core and installation

● It can be installed with 1x16/1x32 tube type PLC shunt and 18 /36 SC adapters.

Specification

Item Parameter
Type SPFC-PV-XXH-4/4C

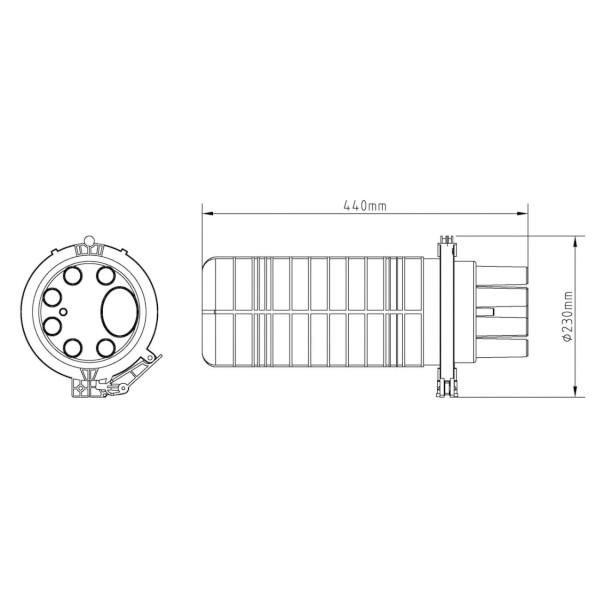

External Size Φ230×440mm
Net weight 2.7kg
Cable ports One elliptical port and 6 round ports.
Way to install

Pole-mounting /Wall-mounting/Aerial installation; Wall-mounting
Cable diameter Φ7~Φ22
Capacity of splice tray 24 single fiber
Sealing structure Heat shrinkable sealing structure silicon gum material
Max. Number of Trays 4
Max Capacity 96 single fiber；
Max splitting 1:32(1pc)PLC；1:16(2pc)PLC ;18/36 SC adapters
Work Temperature -40 °C ~+60°C
Voltage resistance strength 15 kv dc, 1 minute no breakdown, no flash over phenomenon.
Insulation resistance

≥2×104MΩ
Tensile force ≥800N
Sealing inflatable make the internal pressure of 100 kpa, into the water to observe more than 15 min, airless bubble generation, air pressure is not falling.
Impact strength impact energy under16N.m, impact times for 3 times, no cracks

Ordering Information

Model Description Size Package

Weight/ carton
SPFC-PV-24H-4/4C Fiber Closure Vertical type support Splitter 24 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitter,support 1:32/1:16(2PCS) type C φ230*440mm

540*485*465/

4PCS

 12.3KG/4PCS
SPFC-PV-48H-4/4C Fiber Closure Vertical type support Splitter 48 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitter,support 1:32/1:16(2PCS) type C φ230*440mm
SPFC-PV-72H-4/4C Fiber Closure Vertical type support Splitter 72 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitter,support 1:32/1:16(2PCS) type C φ230*440mm
SPFC-PV-96H-4/4C Fiber Closure Vertical type support Splitter 96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing without Splitter,support 1:32/1:16(2PCS) type C φ230*440mm
