96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity
Specifications
Brand Name :
Sopto
Model Number :
SPFC-NV-96H-4/4F
Place of Origin :
GuangDong，Shenzhen
Payment Terms :
L/C, T/T, Western Union,Paypal
Packaging Details :
Machinery Seal; Optional Model Size
Description

Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing

Fiber Closure Vertical type 96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing is a into six out type heat sealing cap type optical fiber cable connector box, suitable for Ф 7 -Ф 22 cable in and out, is suitable for aerial, wall-mounting applications, Pole-mounting ,differences in place.The box body and the base are sealed with the silicone rubber. The cable seal is sealed with a heat shrinkable tube.

Features

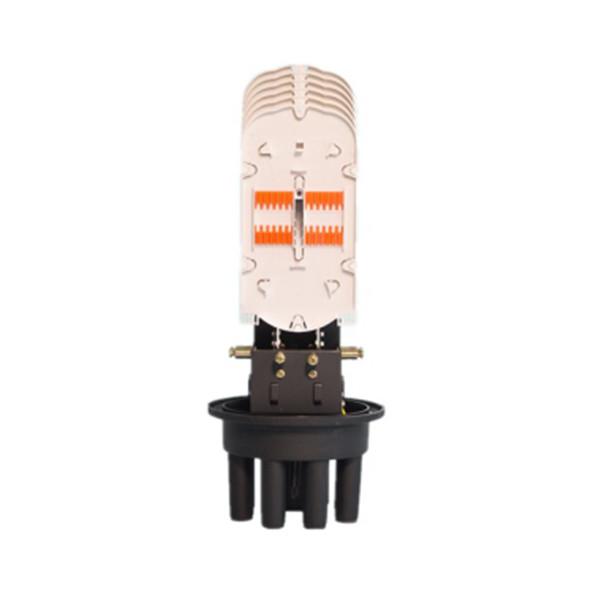

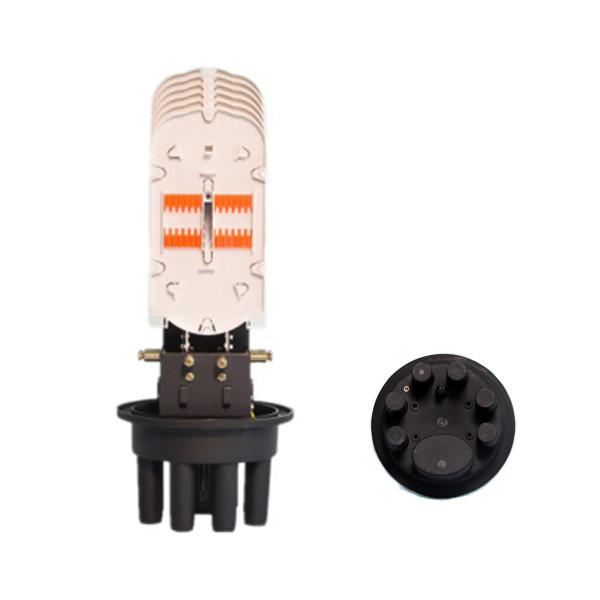

● The fiber optic splice closure consists of cover,pedestal,splice tray,hoop,optical cable storage box.

● The cable entry ports are sealed with heat shrinkable tube.

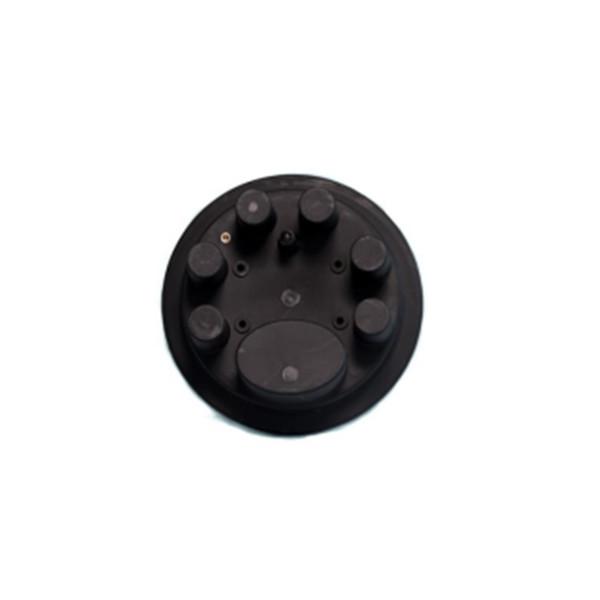

● This is single fiber splice closure, it provide with one elliptical port and 6 round ports.The elliptical port, which can hold two stick optical cables.

● The case body is made from imported high-intensity engineering plastics(PP) and formed the shape with mould plastics under high pressure. With the advantages of less weight, high mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life.

● Equipped with air - core and installation

Item Parameter
Type SPFC-NV-XXH-4/4F

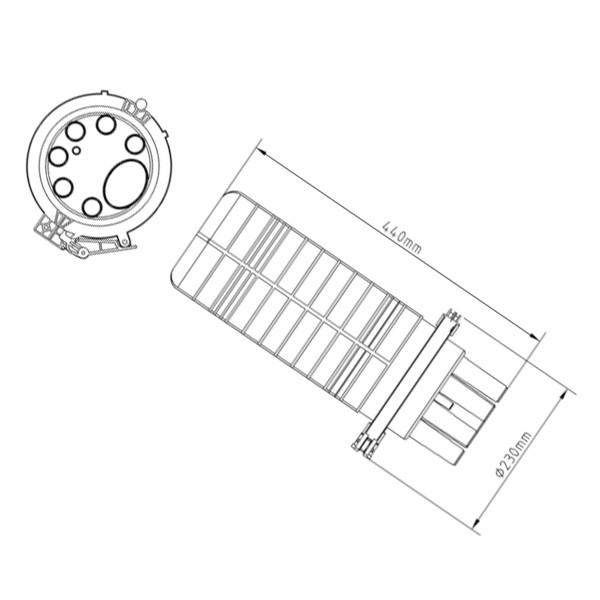

External Size Φ230×440mm
Net weight 2.7kg
Cable ports One elliptical port and 6 round ports.
Way to install

Pole-mounting /Wall-mounting/Aerial installation

lWall-mounting
Cable diameter Φ7~Φ22
Capacity of splice tray 24 single fiber
Sealing structure Heat shrinkable sealing structure silicon gum material
Max. Number of Trays 4
Max Capacity 96 single fiber；
Work Temperature -40 °C ~+60°C
Voltage resistance strength 15 kv dc, 1 minute no breakdown, no flash over phenomenon.
Insulation resistance

≥2×104MΩ
Tensile force ²≥800N
Sealing inflatable make the internal pressure of 100 kpa, into the water to observe more than 15 min, airless bubble generation, air pressure is not falling.
Impact strength impact energy under16N.m, impact times for 3 times, no cracks

Applications

● Telecommunication subscriber loop

● Fiber to the home (FTTH)

● LAN/WAN

96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity

96 Cores Max Fiber Enclosure Box Case Body With High Mechanical Intensity

Ordering Information

Model Description Size Package Weight/ carton
SPFC-NV-96H-4/4F Fiber Closure Vertical type96 Cores Max , 24 Cores Splice Tray 4 IN 4 OUT Hot melt sealing type F Φ230×440mm 540*485*465/4PCS 12.5KG/4个

Note: If you need more customized services, please contact us.
