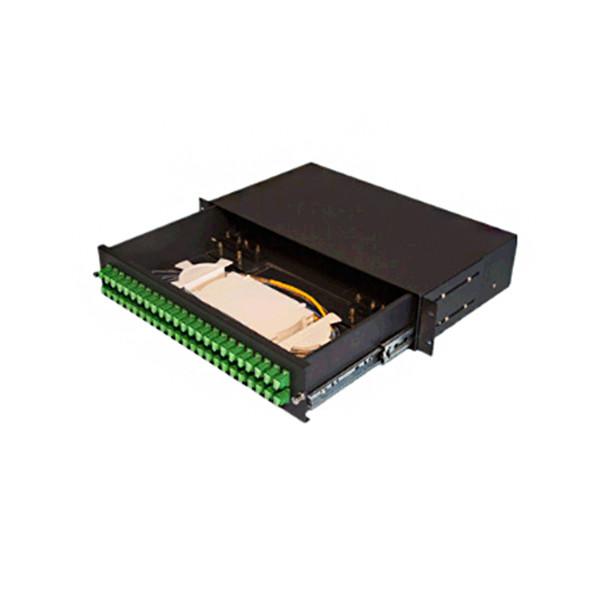

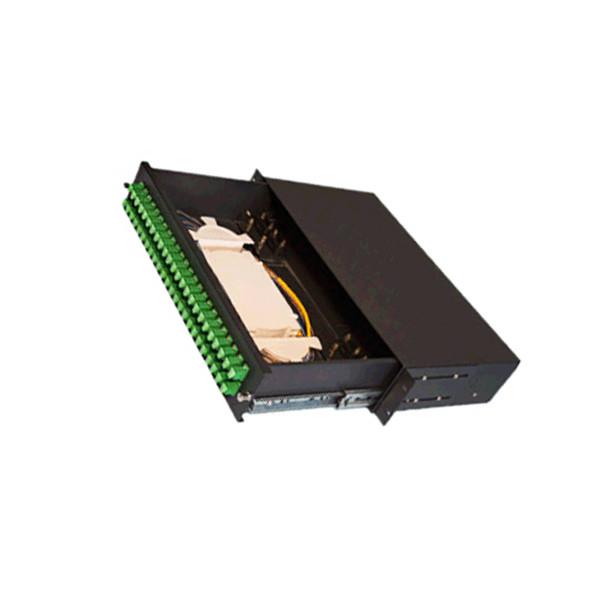

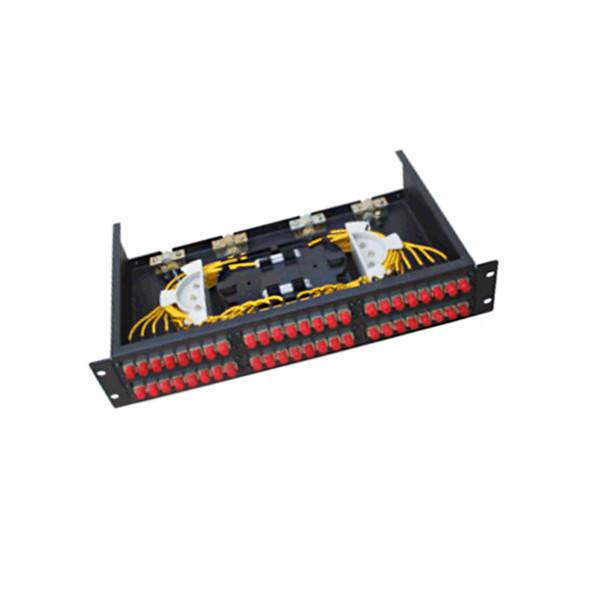

19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
19 Inch 2U Fiber Optic Panel , Rack Mount Fiber Patch Panel For FTTH
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPDF-I36FCT-XMX
Packaging Details :
430*250*2U; 430*240*2U
Material :
Cold-rolling steel
Application :
CATV / FTTH
Adapter :
FC / SC / ST / 2LC etc.
Type :
19" drawer and 19" fixed
Standard :
YD/T 2150-2010 / YD/T1117-2001
Height :
2U
Description

Indoor 19inch Rack Fixed 36 Ports Fiber Patch Panel Simplex Duplex Optional for FTTH

The 19-inch rack-mounted end box is a passive component for terminal distribution of trunk cables in fiber-optic communication systems, with tools for easy connection and distribution of fiber optic circuits. Sopto offers 19 Inch Rack Drawer Distribution box(Fiber Patch Panel) and 19 Inch Rack Fixed Distribution box(Fiber Patch Panel)

Features

● Standard 19-inch structure, could be installed on various of standard racks.

● 19" drawer and 19" fixed optional

● 1.2mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating

● Frame plate is suitable for installing sorts of adaptors such FC, SC, ST, 2LCetc.

● Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration

● Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.

● The series of products by the ministry of information industry standard YD/T 2150-2010, design and manufacture of YD/T1117-2001.

Applications

● LAN/WAN

● Telecommunication subscriber loop

● Fiber to the home (FTTH)

Ordering Information

Part Number Product Description Size(mm)
SPDF-I36FCT-RMA

Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 36 ports FC/ST type without adaptors, pigtails and

splitter Metal type A

 430*250*2U
SPDF-I36SCT-RMA

Distribution box(Fiber Patch Panel) Indoor 19inch rack fixed 36 ports Simplex SC/Duplex LC type without adaptors, pigtails and splitte Metal type A

 430*250*2U
SPDF-I36SCT-DMB

Distribution box(Fiber Patch Panel) Indoor 19inch rack drawer 36 cores Simplex SC/Duplex LC type without

adaptors, pigtails and splitter Metal type B

 430*240*2U
SPDF-I36FCT-DMB

Distribution box(Fiber Patch Panel) Indoor 19inch rack drawer 36 cores FC/ST type without adaptors, pigtails and

splitter Metal type B

 430*240*2U
