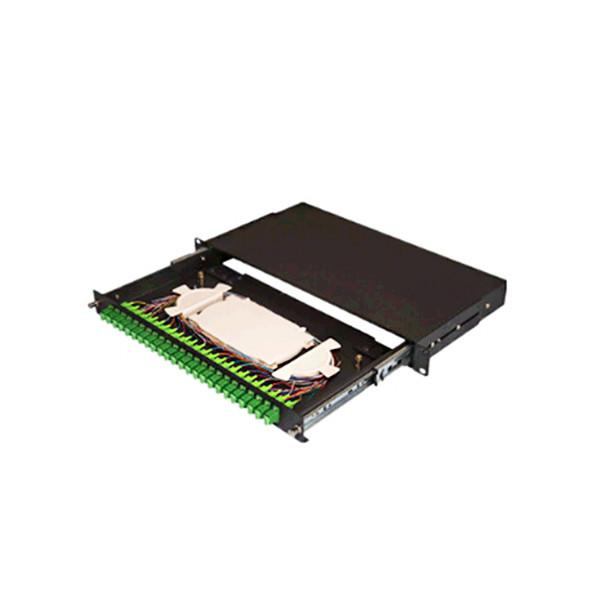

Indoor Optical Distribution Frame Standard 19 Inch Structure Cold Rolling Steel Material
Indoor Optical Distribution Frame Standard 19 Inch Structure Cold Rolling Steel Material
Indoor Optical Distribution Frame Standard 19 Inch Structure Cold Rolling Steel Material
Indoor Optical Distribution Frame Standard 19 Inch Structure Cold Rolling Steel Material
Specifications
Payment Terms :
T/T; L/C; Paypal
Brand Name :
Sopto
Model Number :
SPDF-I24FCT-XMX
Packaging Details :
430*250*1Umm; 430*300*1U
Material :
Cold-rolling steel
Application :
CATV / FTTH
Type :
19" drawer and 19" fixed
Adapter :
FC / SC / ST / 2LC etc
Height :
1U
Standard :
YD/T 2150-2010
Description

Indoor 19inch Rack 24 cores Fiber Patch Panel for FTTH FC / SC / ST / 2LC Adaptors

The 19-inch rack-mounted end box is a passive component for terminal distribution of trunk cables in fiber-optic communication systems, with tools for easy connection and distribution of fiber optic circuits. Sopto offers 19 Inch Rack Drawer Distribution box (Fiber Patch Panel) and 19 Inch Rack Fixed Distribution box (Fiber Patch Panel)

Features

● Standard 19-inch structure, could be installed on various of standard racks.

● 19" drawer and 19" fixed optional

● 1.2mm superior cold-rolled sheet cold-rolled primes,surface painting by Electro-static coating

● Frame plate is suitable for installing sorts of adaptors such FC, SC, ST,2LCetc.

● Three-in-One of fiber splicing wrapping &storage Distribution with smart configuration

● Simple but elegant frame which is with average color painting and has enough tolerance for compact resistance.

● The series of products by the ministry of information industry standard YD/T 2150-2010, design and manufacture of YD/T1117-2001.

Applications

● Telecommunication subscriber loop

● Fiber to the home (FTTH)

● LAN/WAN

Ordering Information

Part Number Product Description Size(mm)
SPDF-I24FCT-RMA Fiber Patch Panel Indoor 19inch rack fixed 24 ports FC/ST type without adaptors, pigtails and splitter Metal type A 430*250*1U
SPDF-I24SCT-RMA Fiber Patch Panel Indoor 19inch rack fixed 24 ports Simplex SC/Duplex LC type without adaptors, pigtails and splitter Metal type A 430*250*1U
SPDF-I24SCT-RMB Fiber Patch Panel Indoor 19inch rack fixed 24 ports Simplex SC/Duplex LC type without adaptors, pigtails and splitter Metal type B 430*300*1U
SPDF-I24DSCT-RMB Fiber Patch Panel Indoor 19inch rack fixed 24 ports Duplex SC type without adaptors, pigtails and splitter Metal type B 430*300*1U
SPDF-I24SCT-DMB

Fiber Patch Panel Indoor 19inch rack drawer 24 cores Simplex SC/Duplex LC type without adaptors, pigtails and

splitter Metal type B

 430*240*1U
SPDF-I24FCT-DMB

Fiber Patch Panel Indoor 19inch rack drawer 24 cores FC/ST type without adaptors, pigtails and splitter Metal type B

 430*240*1U
SPDF-I24SCT-DMC

Fiber Patch Panel Indoor 19inch rack drawer 24 ports Simplex SC/Duplex LC type without adaptors, pigtails and

splitter Metal type C

430*300*1U
