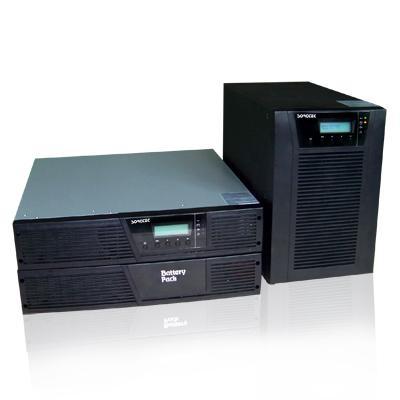

Rack designs 3KVA / 2700W , Non - Linear Load 110V UPS voltage
Rack designs 3KVA / 2700W , Non - Linear Load 110V UPS voltage
Rack designs 3KVA / 2700W , Non - Linear Load 110V UPS voltage
Rack designs 3KVA / 2700W , Non - Linear Load 110V UPS voltage
Specifications
Place of Origin :
China
Brand Name :
SOROTEC
Certification :
CE,ROHS,ISO9000
MOQ :
USD10000
Packaging Details :
Standard Exported Cartons and Pallets
Delivery Time :
Within 15-30days after receiving your 30% TT deposit
Payment Terms :
30% TT in advance, the balance before shipping
Supply Ability :
10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Model Number :
HP9117 1-3KT/1-3KR
Nominal Voltage :
100/110/120/127VAC or 200 /208/220/230/240VAC
Nominal Frequency :
50/60 Hz
Voltage Range :
60-138VAC or 115-276VAC
Frequency precision :
50Hz/60Hz±0.05Hz
Description

THDI rack designs 3KVA / 2700 W , Non - Linear Load 110V UPS HP9117C I / O voltage

Application:
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing

Technical Specifications of Online UPS HP9117C 1-3KVA:

Model

HP9117 1-3KT/1-3KR

1KT/1KR

1KT-XL/1KR-XL

2KT/
2KR

2KT-XL/
2KR-XL

3KT/
3KR

3KT-XL/
3KR-XL

Capacity

1KVA/900 W

2KVA/1800 W

3KVA/
2700 W

Nominal Voltage

100/110/120/127VAC or 200
/208/220/230/240VAC

Nominal Frequency

50/60 Hz

Input

Voltage Range

60-138VAC or 115-276VAC

Frequency Range

50HZ:(46～54HZ)；
60HZ:(56HZ～64HZ)

Power Factor

＞0.98

Output

Voltage precision

100/110/120/127VAC(±2%)
or 200/208/220/230/
240VAC (±2%)

Frequency precision

50Hz/60Hz±0.05Hz

Power Factor

0.9

Harmonic Distortion

Linear Load＜3%
Non-Linear Load＜5%

Overload capacity

overload(110%～150%)
after 30 seconds
automatically transfer
to bypass, it recover
after normal load

Current Crest Ratio

3∶1

Transfer time

0ms(AC→DC)
Battery

DC voltage

36VDC

96VDC

96VDC

Recharge time

7 hours to 90%

Charge Current

1A

4A/8A(option)

1A

4A/8A(option)

1A

4A/8A(option)

Panel Display

LCD

UPS status, input/output
voltage frequency, battery
voltage, capacity, load,
temperature, history records

Language

English, French, German,
Russian, Spanish

Communicate

Communicate
interface

Optional: SNMP card,
AS400 card or the
CMC provide software,
EPO (USB port)

Working Environment

Temperature

0～40℃

Relative humidity

0～95% non-condensing

Storage Temperature

-25℃～55℃

Elevation

＜1500 meter

Noise Level( 1meter)

＜45dB

＜45dB

＜50dB

Physics
Characteristic

Net weigh(Kg)

15

16

8.5

9

33

10.5

16.5

11.5

34

11.5

17

12.5

Gross weight (Kg)

17.5

17.5

11

11.5

35

12.5

18.5

13.5

36

13.5

19

14.5

Dimension (WXDXH)

Main unit(Tower)

200X400X145

340X460X192

340X460X192

Main unit
(Rack mount)

438X415X80

455 X440 X90
